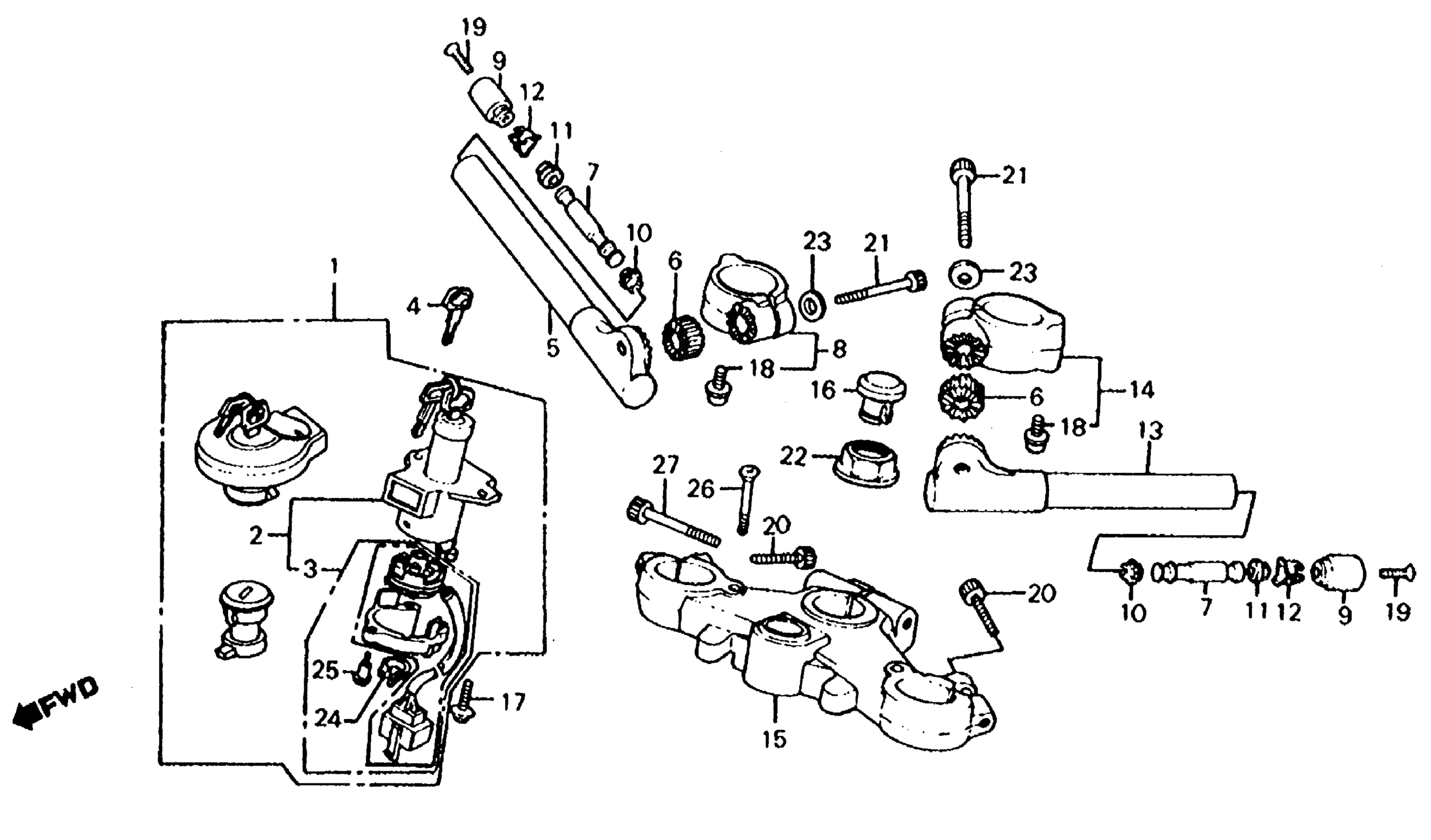

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 HANDLEBAR + TOP BRIDGE Diagram

LOCK SET (NOT AVAILABLE) This part replaces 35010-MJ4-670.

35010-MJ4-671

Unavailable

LOCK SET (NOT AVAILABLE)

35010-MJ4-671

Unavailable

SWITCH ASSY., COMBINATION & LOCK

35100-MJ4-671

Unavailable

BASE, CONTACT

35101-MJ4-670

Unavailable

KEY, BLANK (TYPE1)

35121-KW3-771

$10.10

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

KEY, BLANK (TYPE2)

35122-KW3-771

$10.10

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

HANDLEBAR, R.

53100-MJ4-700

Unavailable

RING, HANDLEBAR ADJUSTING

53103-MJ4-700

Unavailable

WEIGHT, HANDLE (B)

53104-MJ0-000

Unavailable

HOLDER, R. HANDLEBAR

53104-MJ4-700

Unavailable

WEIGHT, HANDLEBAR (NOT AVAILABLE)

53105-MJ4-700

Unavailable

RUBBER, HANDLEBAR WEIGHT (A)

53106-MB6-630

Unavailable

RUBBER, HANDLE WEIGHT (B)

53107-MB6-630

$3.92

RING, HANDLEBAR WEIGHT SNAP

53108-MB6-630

Unavailable

HANDLEBAR, L. (NOT AVAILABLE)

53150-MJ4-700

Unavailable

HOLDER, L. HANDLEBAR

53154-MJ4-700

Unavailable

BRIDGE, FORK TOP

53230-MJ4-700

Unavailable

CAP, STEERING STEM

53232-MJ4-670

$13.43

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

BOLT, FLANGE (8X19) This part replaces 90105-MA6-000.

90104-MJ1-000

$6.31

BOLT, FLANGE (8X10)

90111-MB2-900

Unavailable

SCREW, HANDLEBAR WEIGHT

90126-MJ4-700

$6.18

BOLT, SOCKET (7X38)

90151-MJ4-700

Unavailable

BOLT, HANDLEBAR

90153-MJ4-700

Unavailable

NUT, STEERING STEM

90304-MJ4-670

$15.40

WASHER, ARM (LOWER)

90502-689-000

Unavailable

BAND, SELF-LOCK

91058-MG9-681

$2.21

SCREW, TAPPING (3X16)

91059-MG9-681

$2.39

SCREW, FLAT (6X35)

93600-06035-0H

Unavailable

BOLT, SOCKET (8X55)

90166-422-000

Unavailable
