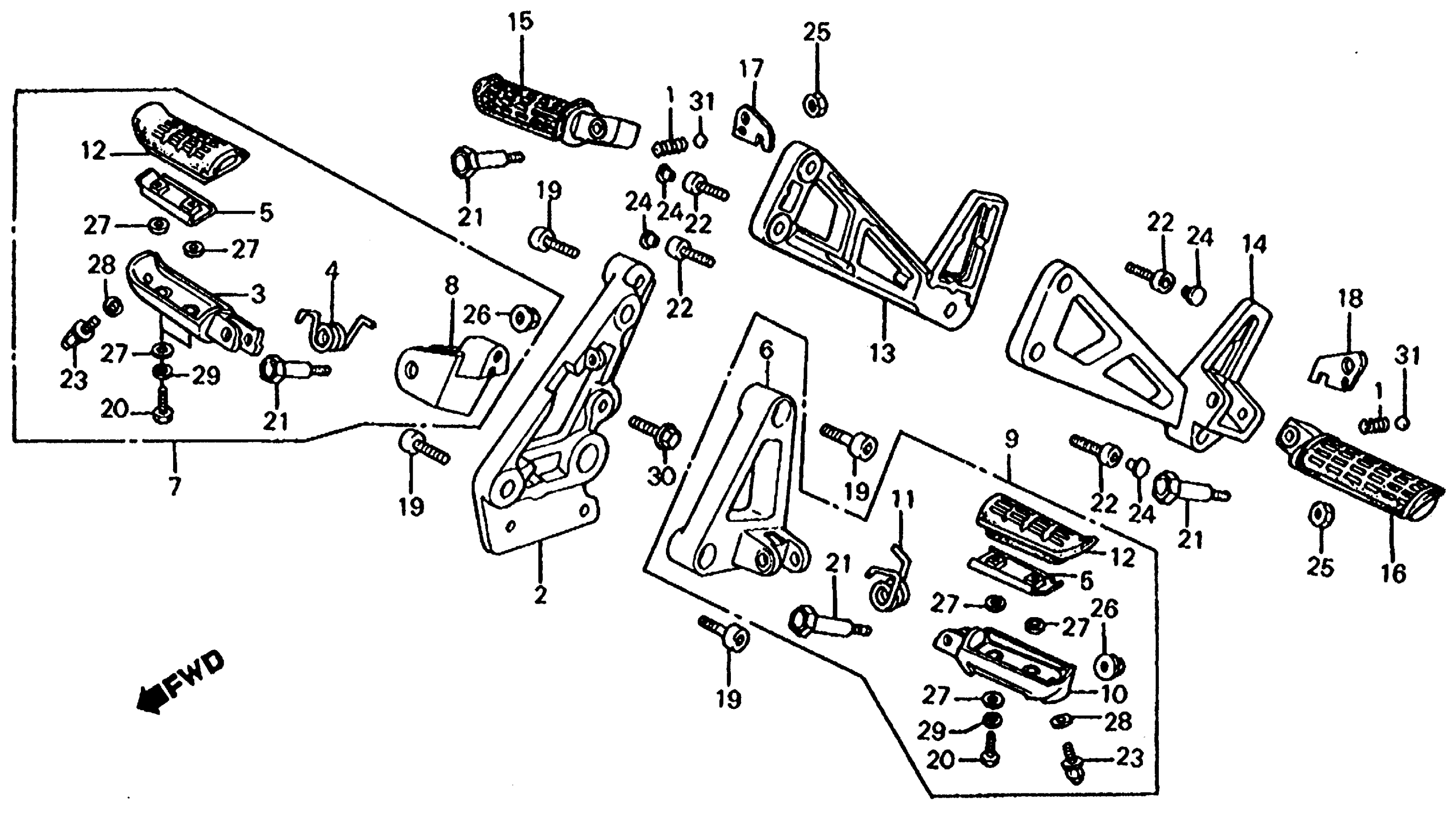

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 FOOTPEGS Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

2

HOLDER, R. FOOTPEG

50610-MJ4-000

Unavailable

3

ARM, R. MAIN FOOTPEG

50612-MJ4-670

Unavailable

4

SPRING, R. FOOTPEG RETURN

50617-MJ4-000

Unavailable

5

PLATE, FOOTPEG STOPPER

50619-MJ4-670

Unavailable

6

HOLDER, L. FOOTPEG

50620-MJ4-000

Unavailable

7

FOOTPEG ASSY., R. MAIN (NOT AVAILABLE)

50630-MJ4-670

Unavailable

8

BRACKET, R. FOOTPEG (NOT AVAILABLE)

50631-MJ4-000

Unavailable

9

FOOTPEG ASSY., L. MAIN

50640-MJ4-670

Unavailable

10

ARM, L. MAIN FOOTPEG

50642-MJ4-670

Unavailable

11

SPRING, L. FOOTPEG RETURN

50644-MJ4-000

Unavailable

12

RUBBER, STEP

50661-MJ4-670

Unavailable

13

HOLDER, R. PILLION FOOTPEG

50711-MJ4-000

Unavailable

14

HOLDER, L. PILLION FOOTPEG

50712-MJ4-000

Unavailable

15

ARM, R. PILLION FOOTPEG

50714-MJ4-000

Unavailable

16

ARM, L. PILLION FOOTPEG

50717-MJ4-000

Unavailable

17

PLATE, R. PILLION FOOTPEG CLICK (NOT AVAILABLE)

50718-422-000

Unavailable

18

PLATE, L. PILLION FOOTPEG CLICK (NOT AVAILABLE)

50719-422-000

Unavailable

19

BOLT, SOCKET (8X25)

90107-MB3-000

Unavailable

20

BOLT, MAIN STEP RUBBER SETTING

90115-MJ4-670

Unavailable

21

BOLT, MAIN FOOTPEG PIVOT

90115-422-000

Unavailable

22

BOLT, SOCKET (8X22)

90157-ME9-000

$5.72

23

BOLT, SPECIAL CAP (8X10)

90176-MJ4-670

Unavailable

24

CAP, SOCKET BOLT (10MM)

91456-ME1-670

$3.47

25

NUT, HEX. (8MM)

94002-08000-0S

$1.49

26

NUT, FLANGE (8MM)

94050-08000

$1.49

27

WASHER, PLAIN (5MM)

94101-05000

$1.49

28

WASHER, PLAIN (8MM)

94102-08000

$1.49

29

WASHER, SPRING (5MM)

94111-05000

$1.49

30

BOLT, FLANGE (10X25) This part replaces 95700-10025-08.

95701-10025-08

$2.19

30

BOLT, FLANGE (10X25)

95701-10025-08

$2.19

31

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
