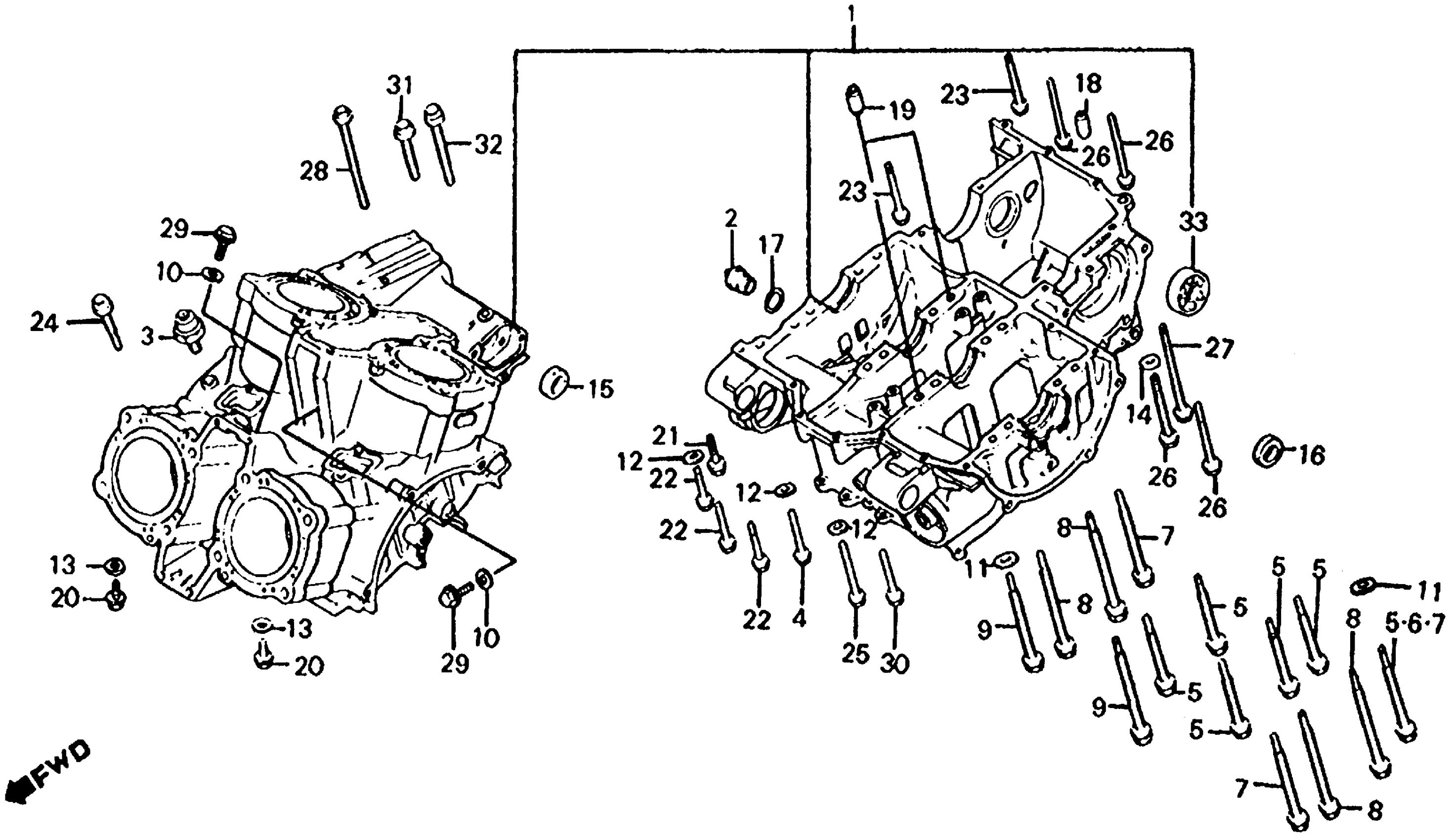

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK SET, CYLINDER

11000-MJ4-700

Unavailable

2

CAP, MAIN GALLERY

11207-MB0-000

Unavailable

3

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

3

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

3

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 37240-PA6-004.

37240-P13-013

$44.49

3

SWITCH ASSY., OIL PRESSURE (DENSO)

37240-P13-013

$44.49

3

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 37240-657-013.

37240-P13-013

$44.49

4

BOLT, FLANGE (6X42)

90002-MB6-000

Unavailable

5

BOLT, UBS (9X88)

90014-MB0-010

Unavailable

6

BOLT, UBS (9X88)

90014-MB6-680

Unavailable

7

BOLT, UBS (9X98)

90015-MB0-000

Unavailable

8

BOLT, UBS (9X108)

90016-MB0-000

Unavailable

9

BOLT, UBS (9X94)

90019-MB6-000

Unavailable

10

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

11

WASHER, SEALING (10MM)

90442-MB6-003

Unavailable

12

WASHER, SEALING (6.5MM)

90443-MB6-003

Unavailable

13

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

14

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

15

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-013.

91202-444-023

$3.78

15

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-015.

91202-444-023

$3.78

15

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.78

16

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

17

O-RING (18X2.8)

91314-MB0-003

Unavailable

18

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

19

PIN, DOWEL (10X16)

94303-10160

$2.34

20

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

20

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

21

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

21

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

22

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

22

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

23

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

23

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

23

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

24

BOLT, FLANGE (6X50) This part replaces 95700-06050-07.

95701-06050-07

$1.49

24

BOLT, FLANGE (6X50)

95701-06050-07

$1.49

25

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

25

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

26

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

26

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

27

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.92

27

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

28

BOLT, FLANGE (6X100) This part replaces 95700-06100-07.

95701-06100-07

$2.89

28

BOLT, FLANGE (6X100)

95701-06100-07

$2.89

29

BOLT, FLANGE (8X28) This part replaces 95700-08028-07.

95701-08028-07

$1.49

29

BOLT, FLANGE (8X28)

95701-08028-07

$1.49

30

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

30

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

31

BOLT, FLANGE (8X50) This part replaces 95700-08050-00.

95701-08050-00

$2.28

31

BOLT, FLANGE (8X50)

95701-08050-00

$2.28

32

BOLT, FLANGE (8X80) This part replaces 95700-08080-00.

95701-08080-00

$1.64

32

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

33

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40
