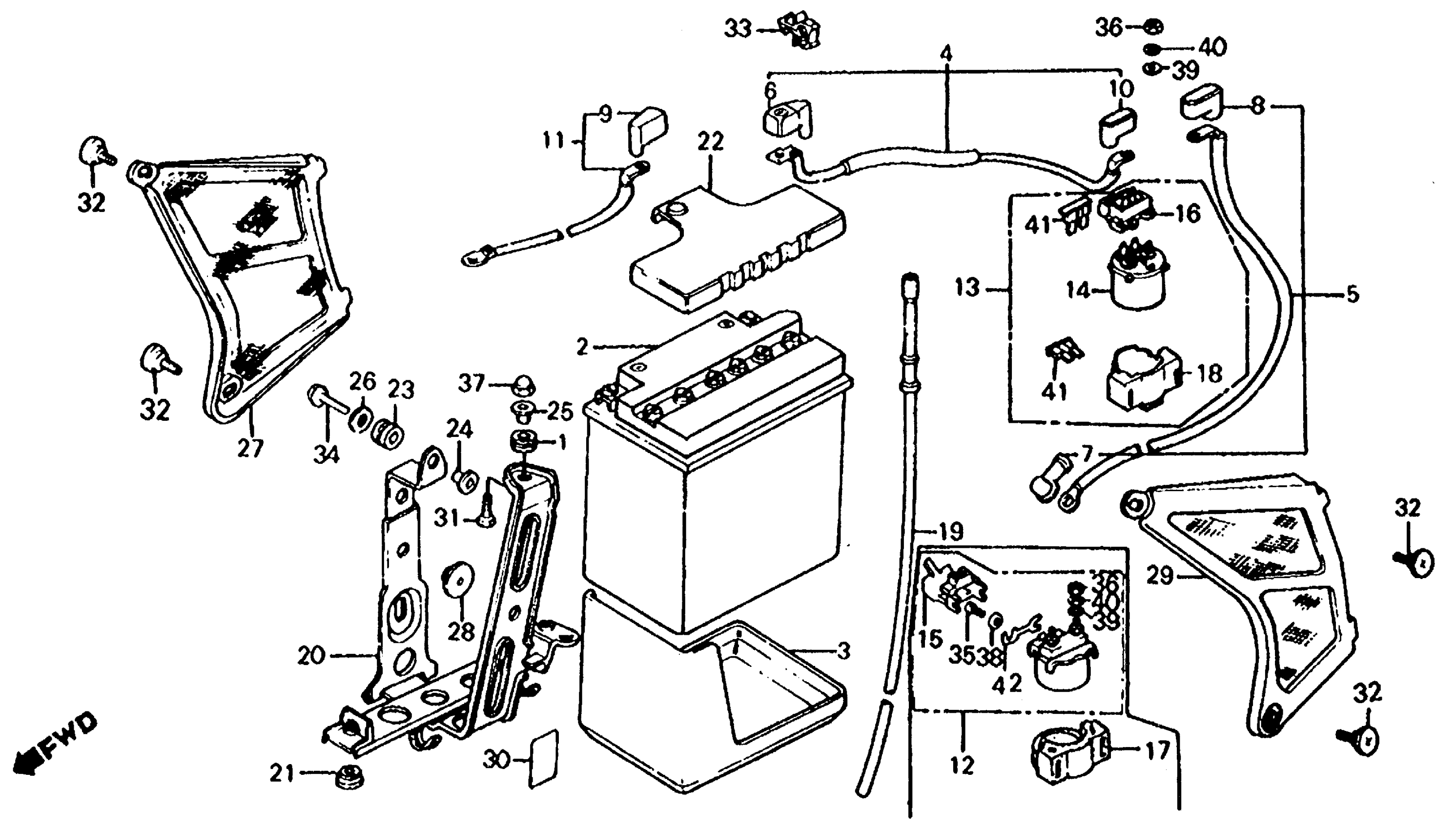

Honda VF1000RA (86) MOTORCYCLE, JPN, VIN# JH2SC160-GM100001 BATTERY + LEFT SIDE COVER + STARTER SWITCH Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

BATTERY ASSY. This part replaces 31500-MB6-671.

31500-MB6-672

Unavailable

2

BATTERY ASSY.

31500-MB6-672

Unavailable

3

RUBBER, BATTERY (NOT AVAILABLE)

31521-MB6-630

Unavailable

4

CABLE, STARTER BATTERY

32401-MJ4-870

Unavailable

5

CABLE, STARTER MOTOR

32402-MJ4-870

Unavailable

6

COVER, BATTERY TERMINAL (NOT AVAILABLE)

32411-MB6-630

Unavailable

7

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

7

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

8

COVER B, MAGNETIC SWITCH

32416-MF5-000

$5.21

9

COVER, BATTERY TERMINAL

32412-MB6-000

Unavailable

10

COVER A, STARTER MAGNETIC

32404-MJ4-870

Unavailable

11

CABLE, BATTERY GROUND

32601-MB6-630

Unavailable

13

SWITCH ASSY., STARTER MAGNETIC

35850-MF5-751

$140.48

14

SWITCH, STARTER MAGNETIC

35851-MF5-751

$106.43

16

HOLDER ASSY., FUSE

35855-MF5-751

$35.11

18

RUBBER, SHOCK ABSORBER

35856-MF5-751

$10.03

19

TUBE, BATTERY (NOT AVAILABLE)

50238-MB2-000

Unavailable

20

BOX, BATTERY (NOT AVAILABLE)

50320-MJ4-670

Unavailable

21

RUBBER, BATTERY BOX MOUNTING (NOT AVAILABLE)

50324-MB2-000

Unavailable

22

RUBBER, BATTERY (UPPER)

50327-MB6-000

Unavailable

23

GROMMET

50329-MB2-000

$5.06

24

COLLAR, FR. FENDER SETTING

61101-KB7-910

Unavailable

25

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

25

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

25

COLLAR, RR. FENDER

61105-428-000

Unavailable

26

WASHER, SEAT SETTING

77302-124-000

$3.23

27

COVER SET, R. SIDE

836A0-MJ4-670

Unavailable

27

COVER SET, R. SIDE This part replaces 83600-MJ4-670.

836A0-MJ4-670

Unavailable

28

RUBBER, BATTERY BOX

83618-323-000

$2.47

29

COVER SET, L. SIDE

837A0-MJ4-670

Unavailable

29

COVER SET, L. SIDE This part replaces 83700-MJ4-670.

837A0-MJ4-670

Unavailable

30

LABEL, BATTERY CAUTION

87506-MJ4-670

Unavailable

31

BOLT, SPECIAL (6X20)

90008-MB2-000

Unavailable

32

SCREW, FAIRING SETTING

90112-MC7-000

$6.48

33

CLIP, RETURN TUBE This part replaces 90652-680-961.

53742-SE0-951

$2.41

34

BOLT, RECESSED (6X14) This part replaces 92300-06014-0A.

92301-06014-0A

$1.49

34

BOLT, RECESSED (6X14)

92301-06014-0A

$1.49

36

NUT, HEX. (6MM)

94002-06000-0S

$1.49

37

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

37

NUT, CAP (6MM)

94021-06020

$1.73

37

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

37

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

39

WASHER, PLAIN (6MM)

94101-06800

$1.49

40

WASHER, SPRING (6MM)

94111-06800

$1.49

41

FUSE, BLADE (30A)

98200-33000

$1.49
