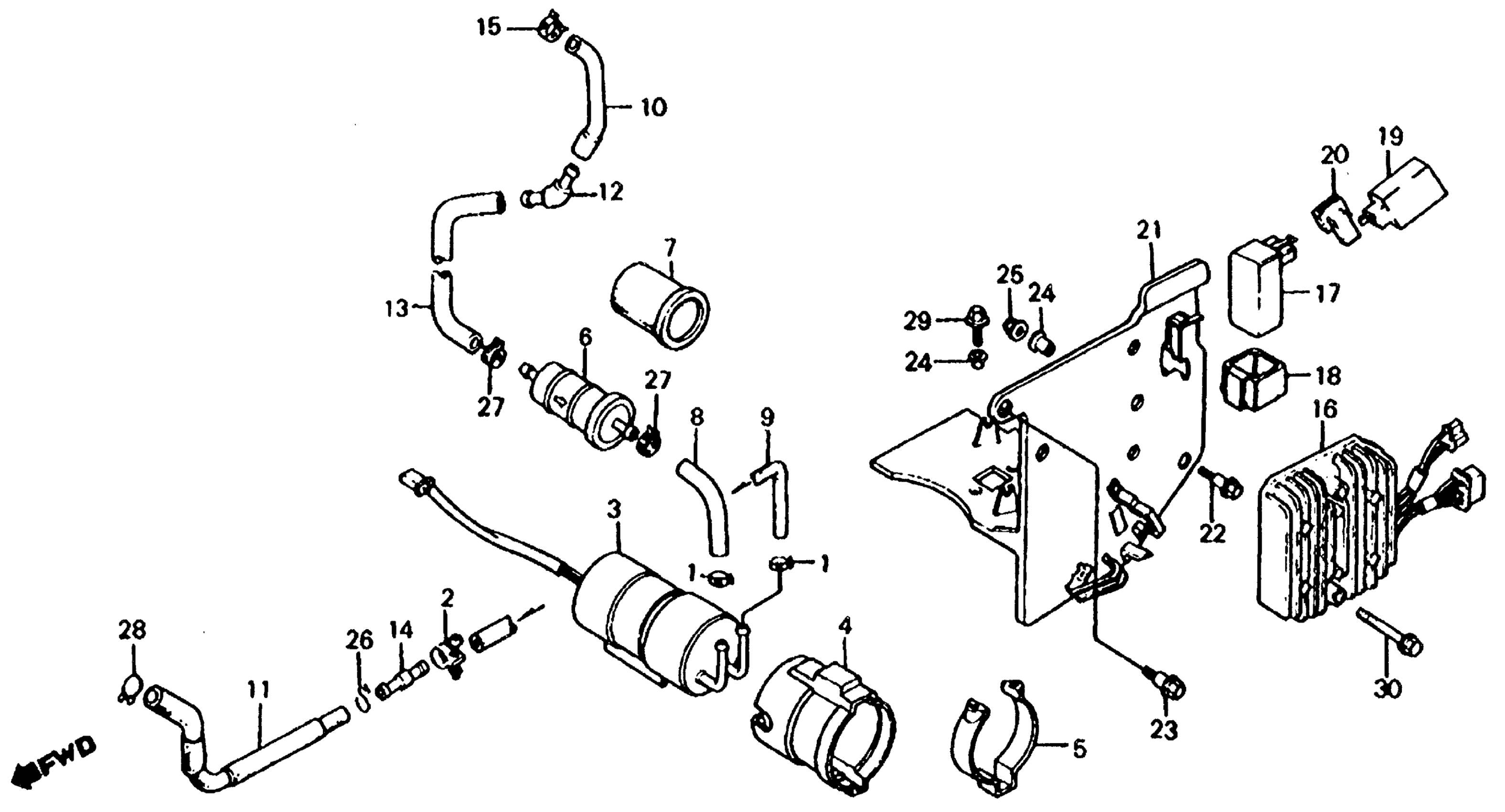

Honda VF1000RA (85) MOTORCYCLE, JPN, VIN# JH2SC160-FM000013 TO JH2SC160-FM002378 FUEL PUMP + RECTIFIER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-500-010

$3.90

1

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

2

CLIP, BREATHER TUBE

15772-551-000

$2.05

2

CLIP, BREATHER TUBE (NOT AVAILABLE)

15772-551-680

$6.39

3

PUMP ASSY., FUEL (NOT AVAILABLE)

16700-MB6-631

Unavailable

4

RUBBER, FUEL PUMP

16711-MB6-000

Unavailable

5

HOLDER, FUEL PUMP

16712-MB6-000

Unavailable

6

FILTER, FUEL

16900-MB6-631

Unavailable

7

RUBBER, FUEL STRAINER

16906-MB6-630

Unavailable

8

TUBE C, FUEL (NOT AVAILABLE)

16956-MB6-630

Unavailable

9

TUBE D, FUEL (NOT AVAILABLE)

16957-MB6-630

Unavailable

10

TUBE A, FUEL (NOT AVAILABLE)

16958-MB6-630

Unavailable

11

TUBE E, FUEL (NOT AVAILABLE)

16958-MJ4-670

Unavailable

12

JOINT, FUEL TUBE (NOT AVAILABLE)

16959-MB6-630

Unavailable

13

TUBE B, FUEL (NOT AVAILABLE)

16960-MB6-630

Unavailable

14

JOINT, FUEL TUBE

16966-MJ4-670

Unavailable

15

CLIP, FUEL HOSE

16969-MB1-000

$5.10

16

RECTIFIER ASSY. (NOT AVAILABLE) This part replaces 31600-MB6-630.

31600-MC7-008

Unavailable

17

RELAY, FUEL CUT

36100-MB1-701

$90.87

18

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

19

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KK9-951.

38301-KK9-952

$67.94

19

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

20

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

22

BOLT, FLANGE (6MM)

90111-162-000

$2.89

23

BOLT, FLANGE (6X16)

90113-MJ4-670

$4.41

24

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

25

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

25

NUT, CAP (6MM)

94021-06020

$1.73

25

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

25

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

26

CLIP, TUBE (B10)

95002-02100

$1.90

27

CLIP, TUBE (D10.5)

95002-41050-08

$2.34

28

CLIP, TUBE (C11)

95002-70000

$1.56

29

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

29

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

30

BOLT, FLANGE (6X40) This part replaces 95700-06040-08.

95701-06040-08

$1.80

30

BOLT, FLANGE (6X40)

95701-06040-08

$1.80
