Partiron

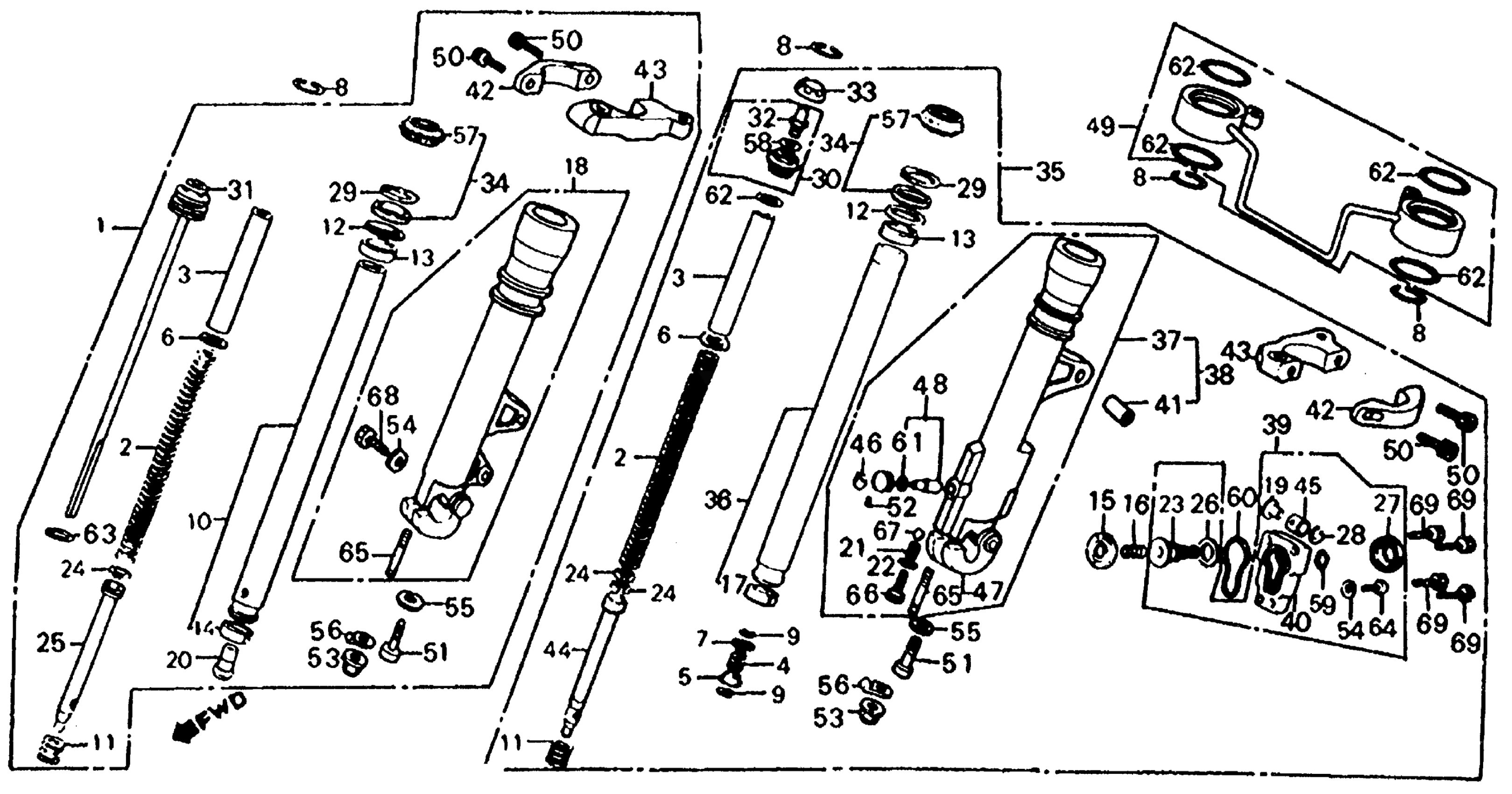

Honda VF1000RA (85) MOTORCYCLE, JPN, VIN# JH2SC160-FM000013 TO JH2SC160-FM002378 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-MJ4-671

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-MJ4-671

Unavailable

3

COLLAR, SPRING (NOT AVAILABLE)

51402-MB6-611

Unavailable

4

SPRING, OIL LOCK

51402-MB7-611

$5.04

5

VALVE, OIL LOCK

51403-MB7-611

$9.88

6

PLATE, SPRING JOINT

51404-MB4-003

$4.60

7

SEAT, SPRING

51404-MB7-611

$4.80

8

RING, STOPPER

51405-MB4-003

$5.66

9

RING, STOPPER

51405-MB7-611

$2.65

10

PIPE, FR. FORK

51410-MJ4-671

Unavailable

11

SPRING, REBOUND

51411-MG9-671

Unavailable

12

RING, BACK-UP

51412-MB4-003

$8.66

12

RING, BACK-UP (SHOWA) This part replaces 51412-MB4-305.

51412-MB4-003

$8.66

13

BUSH, GUIDE (SHOWA) This part replaces 51414-MB4-003.

51414-KCR-003

$12.58

14

BUSH, SLIDER (A)

51415-MB4-003

Unavailable

15

GASKET

51417-MJ0-013

Unavailable

16

SPRING, PISTON

51418-MJ0-003

Unavailable

17

BUSH B, SLIDER (B-TYPE)

51419-MB4-003

$18.08

18

CASE, R. (LOWER)

51421-MJ4-671

Unavailable

19

COLLAR, PISTON

51423-MJ0-003

$10.56

20

PIECE, OIL LOCK (NOT AVAILABLE)

51432-MJ4-671

Unavailable

21

SPRING, CLICK (NOT AVAILABLE)

51434-MC7-003

Unavailable

22

WASHER, SPECIAL (5MM)

51435-MC7-003

$2.65

23

PISTON

51436-MJ0-003

Unavailable

24

RING, PISTON

51437-MB4-003

$8.60

25

PIPE, SEAT

51440-MJ4-671

Unavailable

26

RUBBER, STOPPER

51441-MJ0-003

Unavailable

27

BOOT, PISTON CASE

51442-MJ0-003

$8.73

28

RING, STOPPER

51445-MJ0-003

$2.36

29

CIRCLIP (INNER)

51447-MB4-003

$4.33

30

BOLT ASSY., L. FR. FORK (NOT AVAILABLE)

51450-MB6-631

Unavailable

31

BOLT ASSY., FR. FORK

51454-MB6-631

Unavailable

32

VALVE, AIR (SHOWA)

51456-469-013

$30.27

33

CAP, AIR VALVE

51457-KM4-003

Unavailable

34

SEAL SET, FR. FORK (SHOWA) This part replaces 51490-MB4-315.

51490-MN8-305

$31.62

34

SEAL SET, FR. FORK (SHOWA)

51490-MN8-305

$31.62

35

FORK ASSY., L. FR.

51500-MJ4-671

Unavailable

36

PIPE, L. FR. FORK (NOT AVAILABLE)

51510-MJ4-671

Unavailable

37

CASE, L. (LOWER) (NOT AVAILABLE) This part replaces 51521-MJ4-671.

51521-MJ4-672

Unavailable

37

CASE, L. (LOWER) (NOT AVAILABLE)

51521-MJ4-672

Unavailable

39

CASE, PISTON

51530-MJ4-003

Unavailable

40

CASE, PISTON

51531-MJ4-003

Unavailable

41

BUSH, PIVOT

51532-MB6-631

Unavailable

42

HOLDER A, STABILIZER (NOT AVAILABLE)

51537-MJ4-003

Unavailable

43

HOLDER B, STABILIZER

51538-MJ4-003

Unavailable

44

PIPE, SEAT

51540-MJ4-671

Unavailable

45

BUSH, RUBBER

51545-MJ0-003

$8.42

46

PLATE, ADJUSTER (NOT AVAILABLE)

51558-MK3-003

Unavailable

47

CASE SET, L. (LOWER)

51590-MJ4-671

Unavailable

48

ROD SET, ADJUSTER

51591-MK3-305

Unavailable

49

EQUALIZER, FR. FORK

53137-MB6-003

Unavailable

50

BOLT, SOCKET (6X16)

90070-MJ4-003

Unavailable

51

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$4.77

52

SCREW, SOCKET

90150-MK3-003

Unavailable

53

NUT, U (10MM)

90304-GE8-003

$3.42

54

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.25

55

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

56

WASHER

90545-MJ4-003

Unavailable

57

DUST SEAL This part replaces 91254-MB4-003.

91254-MM8-003

$16.06

57

DUST SEAL

91254-MM8-003

$16.06

58

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.80

58

O-RING (5.8X1.9)

91305-323-000

$2.80

58

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.42

59

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.03

60

O-RING (49.4X3.1)

91308-MJ0-003

$3.33

61

O-RING

91310-MJ0-003

$2.38

62

O-RING (40.5X2)

91352-MB4-003

Unavailable

63

O-RING (32.9X2.4) (NOT AVAILABLE)

91356-MG8-671

Unavailable

64

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.25

64

BOLT, HEX. (6X8)

92101-06008-0A

$1.25

65

BOLT, STUD (10X40)

92900-10040-0B

$7.18

66

SCREW, PAN (5X16) (NOT AVAILABLE) This part replaces 90052-371-980.

93500-05016

Unavailable

66

SCREW, PAN (5X16) (NOT AVAILABLE)

93500-05016

Unavailable

66

SCREW, PAN (5X16)

93500-05016-0A

$0.83

66

SCREW, PAN (5X16) (NOT AVAILABLE) This part replaces 93500-05016-1A.

93500-05016

Unavailable

66

SCREW, PAN (5X16) (NOT AVAILABLE) This part replaces 93516-05016.

93500-05016

Unavailable

67

BALL, STEEL (#5) (5/32)

96211-05000

$0.97

68

BOLT, SOCKET (6X12)

96600-06012-07

$1.17

68

BOLT, SOCKET (6X12) This part replaces 96700-06012-07.

96600-06012-07

$1.17

69

BOLT, SOCKET (6X16)

96600-06016-00

$1.58

69

BOLT, SOCKET (6X16) This part replaces 96700-06016-00.

96600-06016-00

$1.58

69

BOLT, SOCKET (6X16) This part replaces 96700-06016-17.

96600-06016-00

$1.58
