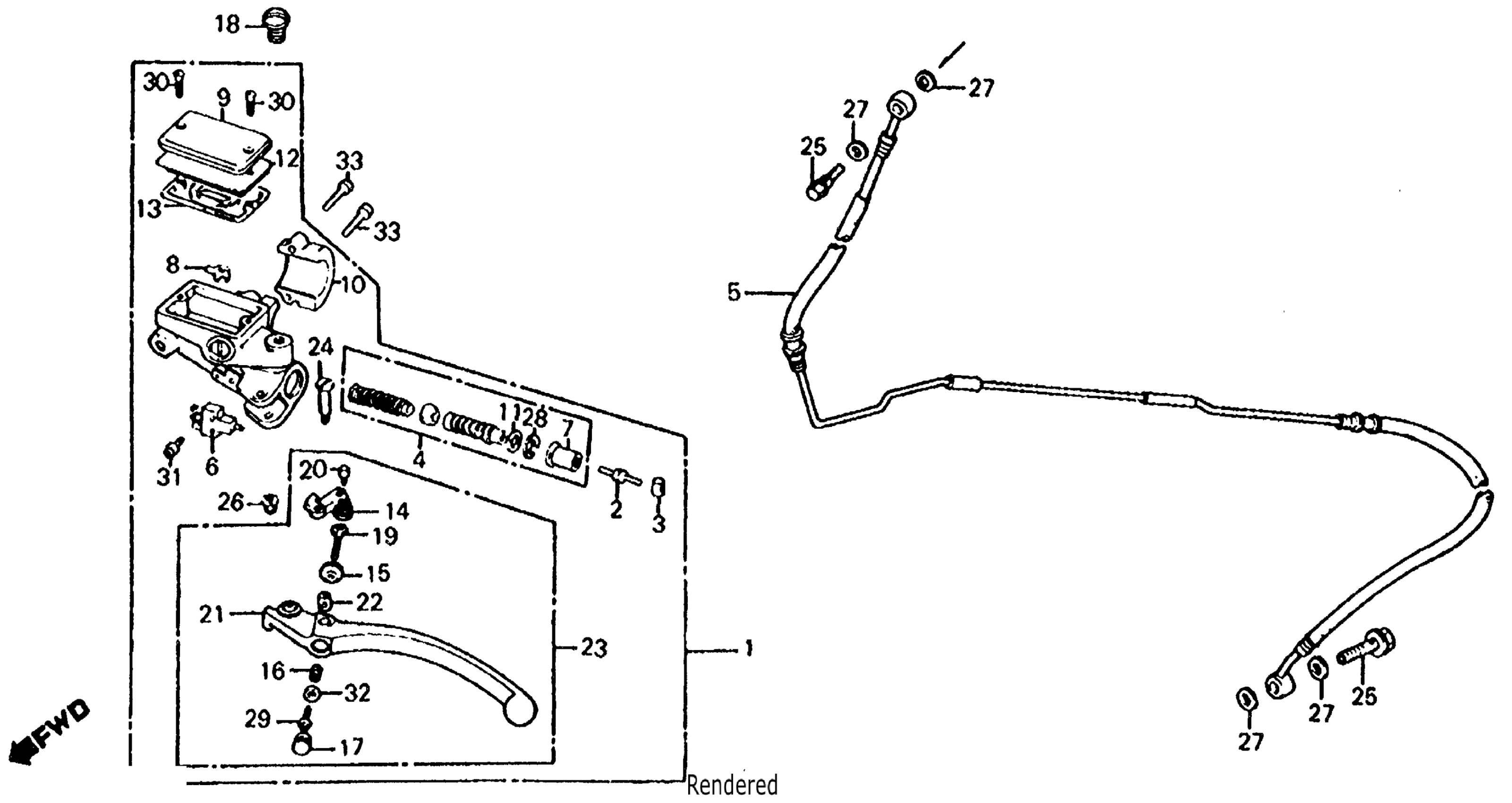

Honda VF1000RA (85) MOTORCYCLE, JPN, VIN# JH2SC160-FM000013 TO JH2SC160-FM002378 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY., CLUTCH (NOT AVAILABLE)

22880-MJ4-671

Unavailable

2

ROD, PUSH

22884-MB0-006

$20.66

3

BUSH

22885-MB0-006

$12.95

4

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$74.32

5

PIPE ASSY., CLUTCH

22900-MJ4-670

Unavailable

6

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

7

BOOT

45504-410-003

$12.16

8

PROTECTOR

45512-MA6-006

$4.28

9

CAP, MASTER CYLINDER (NOT AVAILABLE)

45540-MB4-671

Unavailable

10

HOLDER, MASTER CYLINDER

45517-MB0-006

Unavailable

11

PLATE, STOPPER

45518-MB0-006

$1.84

12

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

13

DIAPHRAGM

45520-MA5-672

$18.13

14

KNOCKER, CLUTCH

53171-MB4-681

Unavailable

15

ADJUSTER, R. CONTROL LEVER

53172-MJ4-006

Unavailable

16

SPRING, CONTROL LEVER

53173-MJ4-006

Unavailable

17

CAP, CONTROL LEVER

53174-MJ4-006

Unavailable

18

PLUG, HANDLEBAR BRACKET

53174-116-670

$2.48

18

PLUG, HANDLE LEVER BRACKET This part replaces 53174-463-770.

53174-116-670

$2.48

19

BOLT, ADJUSTING (NOT AVAILABLE) This part replaces 53176-MJ4-006.

53176-MJ4-016

Unavailable

19

BOLT, ADJUSTING

53176-MJ4-016

Unavailable

20

BOLT, CONTROL LEVER SOCKET (5X5) (NOT AVAILABLE)

53177-MJ4-006

Unavailable

21

LEVER, L. HANDLEBAR

53178-MB4-681

Unavailable

22

JOINT, CONTROL LEVER This part replaces 53179-MJ4-006.

53179-MJ4-016

Unavailable

22

JOINT, CONTROL LEVER

53179-MJ4-016

Unavailable

23

CONTROL LEVER ASSY., L. HANDLEBAR (NOT AVAILABLE)

53180-MB4-681

Unavailable

24

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

25

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

25

BOLT, OIL (10X22)

90145-KM3-751

$11.02

26

NUT, CAP (6MM)

90201-415-000

$2.05

27

WASHER, OIL BOLT

90545-300-000

$3.99

28

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

29

SCREW, PAN (3X6)

93500-03006-0A

$1.49

30

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

30

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

31

SCREW-WASHER (4X12)

93893-04012-07

$1.49

31

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

32

WASHER, PLAIN (3MM)

94101-03800

$1.49

33

BOLT, SOCKET (6X22)

96600-06022-17

$1.93

33

BOLT, SOCKET (6X22) This part replaces 96700-06022-17.

96600-06022-17

$1.93
