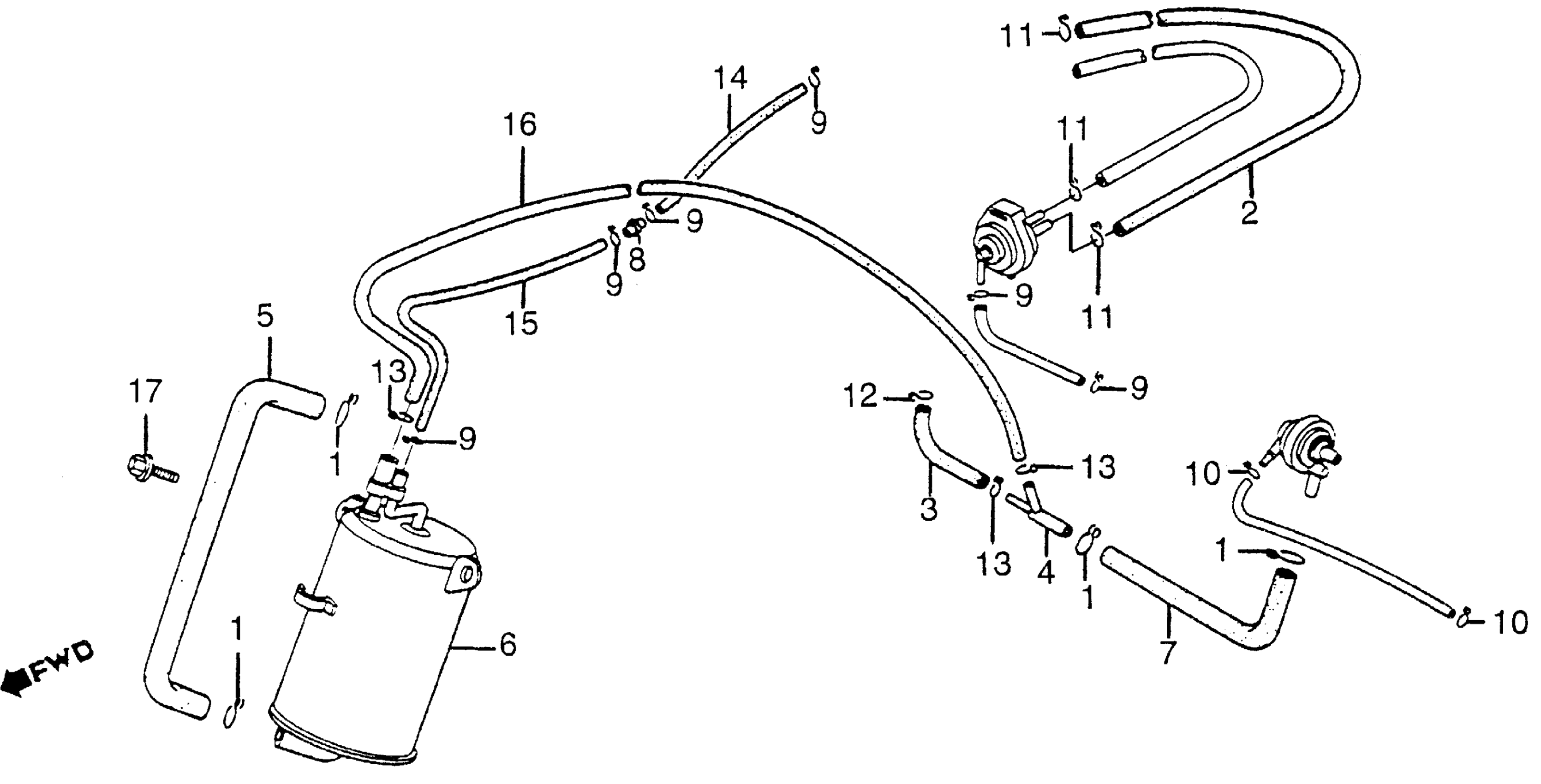

Honda VF1000FAC (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC151-EM000003 TO JH2SC151-EM000627 CANISTER (AC) Diagram

CLIP, OIL DRAIN TUBE

15707-634-000

$5.13

TUBE, VENT (OUTER) (NOT AVAILABLE)

16954-MB6-740

Unavailable

TUBE, AIR VENT CONTROL VALVE (NOT AVAILABLE)

17316-MB6-740

Unavailable

JOINT (THREE-WAY) (NOT AVAILABLE)

17330-MB6-741

Unavailable

HOSE, CANISTER (NOT AVAILABLE)

17401-MB6-740

Unavailable

CANISTER (NOT AVAILABLE)

17410-MB6-741

Unavailable

TUBE, PURGE CONTROL VALVE JOINT (NOT AVAILABLE)

17415-MB6-740

Unavailable

JOINT B, WASHER TUBE (MITSUBA)

38562-663-920

$8.56

CLIP, TUBE (B7)

95002-02070

$1.80

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (B12.5)

95002-02130

$1.49

CLIP, TUBE (C9)

95002-50000

$1.49

CLIP, TUBE (C11)

95002-70000

$1.56

BULK HOSE, VACUUM (3.5X1000) (3.5X250)

95005-35001-20M

$9.67

BULK HOSE, VACUUM (3.5X1000) (3.5X570)

95005-35001-20M

$9.67

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

$34.09

BOLT, FLANGE (6X20) This part replaces 95700-06020-07.

95701-06020-07

$1.62

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
