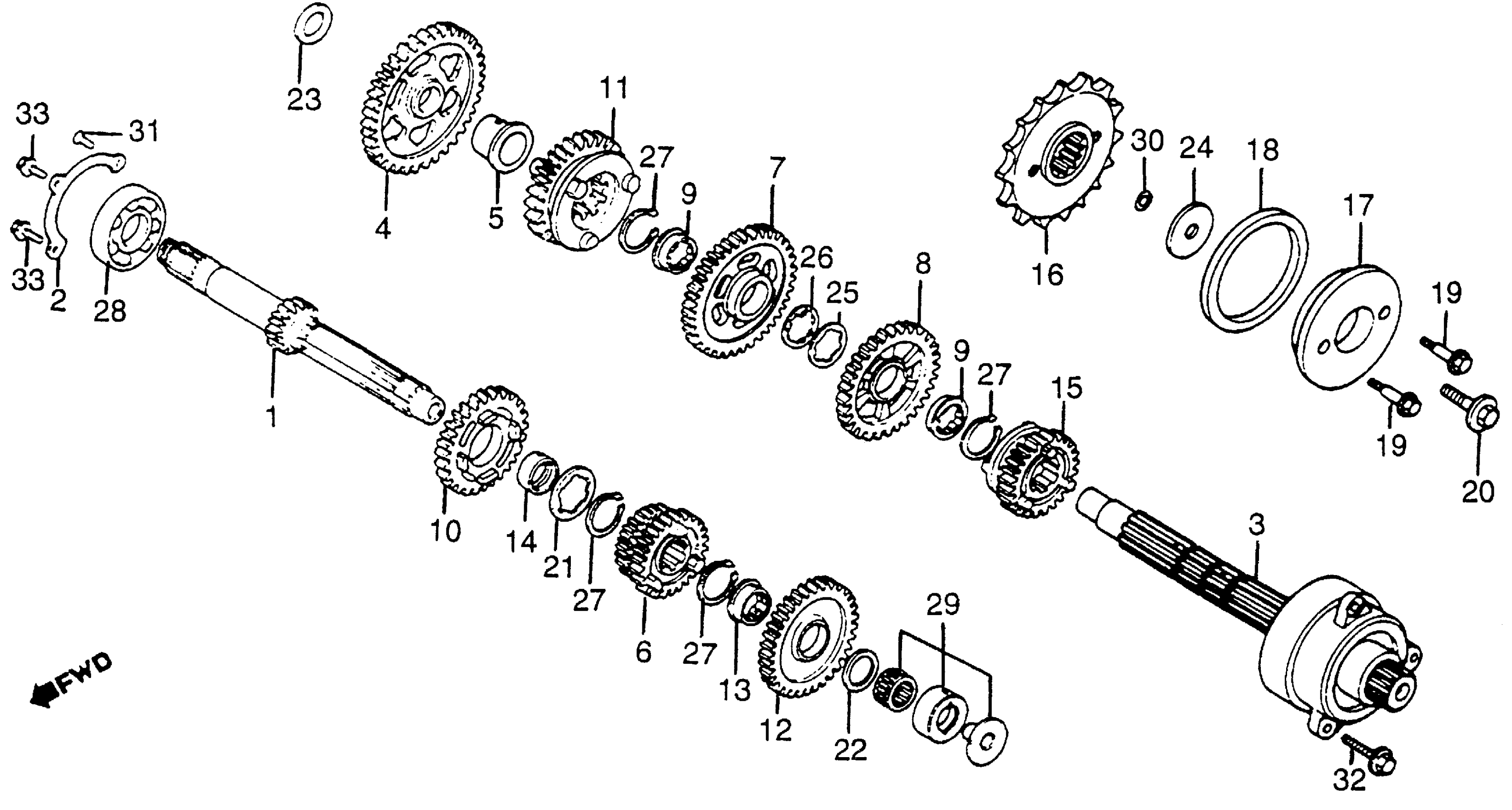

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (15T) (NOT AVAILABLE)

23211-MB6-000

Unavailable

2

PLATE, BEARING SETTING (NOT AVAILABLE) This part replaces 23212-MB0-010.

23212-MB4-830

Unavailable

3

COUNTERSHAFT This part replaces 23220-MB2-020.

23220-MB6-680

Unavailable

3

COUNTERSHAFT (NOT AVAILABLE)

23220-MB6-680

Unavailable

4

GEAR, COUNTERSHAFT LOW (41T) (NOT AVAILABLE)

23421-MB6-000

Unavailable

5

COLLAR (22X15.1) (NOT AVAILABLE)

23422-MB6-000

Unavailable

6

GEAR, MAINSHAFT SECOND & THIRD (19T,23T) (NOT AVAILABLE)

23431-MB6-000

Unavailable

7

GEAR, COUNTERSHAFT SECOND (36T) (NOT AVAILABLE)

23441-MB6-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (NOT AVAILABLE)

23461-MB6-000

Unavailable

9

COLLAR (28X15.5) (NOT AVAILABLE)

23462-MB2-010

Unavailable

10

GEAR, MAINSHAFT FOURTH (25T) (NOT AVAILABLE)

23471-MB6-000

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (31T) (NOT AVAILABLE)

23481-MB6-000

Unavailable

12

GEAR, MAINSHAFT FIFTH (27T) (NOT AVAILABLE)

23491-MB6-000

Unavailable

13

COLLAR, SPLINE (28X15.9) (NOT AVAILABLE)

23492-MB6-000

Unavailable

14

COLLAR (28X13.95) (NOT AVAILABLE)

23495-MB4-000

Unavailable

15

GEAR, COUNTERSHAFT FIFTH (28T) (NOT AVAILABLE)

23501-MB6-000

Unavailable

16

SPROCKET, DRIVE (17T)

23801-438-000

Unavailable

17

GUIDE, RING (NOT AVAILABLE)

23820-438-003

Unavailable

18

RING, DAMPER

23821-MB6-000

Unavailable

19

BOLT, FLANGE (6X20)

90020-438-000

$3.35

20

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

21

WASHER, THRUST (28MM)

90451-422-000

$8.36

22

WASHER, THRUST (22MM) (NOT AVAILABLE)

90453-MB6-000

Unavailable

23

WASHER, THRUST (20MM)

90454-428-000

$2.53

24

WASHER (10.2MM) (NOT AVAILABLE)

90459-422-000

Unavailable

25

WASHER, THRUST (29MM)

90461-MB2-000

$6.46

26

WASHER, LOCK (28MM)

90462-MB2-000

$5.84

27

CIRCLIP (28MM)

90601-422-000

$2.98

28

BEARING, RADIAL BALL (6206) (NTN) This part replaces 91006-MB4-003.

91006-MT3-003

$21.55

28

BEARING, RADIAL BALL (6206) (NTN) This part replaces 91006-MB4-004.

91006-MT3-003

$21.55

28

BEARING, RADIAL BALL (6206) (NTN)

91006-MT3-003

$21.55

29

BEARING, NEEDLE (22MM) (NOT AVAILABLE)

91023-MB6-004

Unavailable

30

O-RING (9.8X2.4)

91305-422-000

$2.47

31

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

32

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

32

BOLT, FLANGE (8X28)

95701-08028-08

$2.06

33

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

33

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
