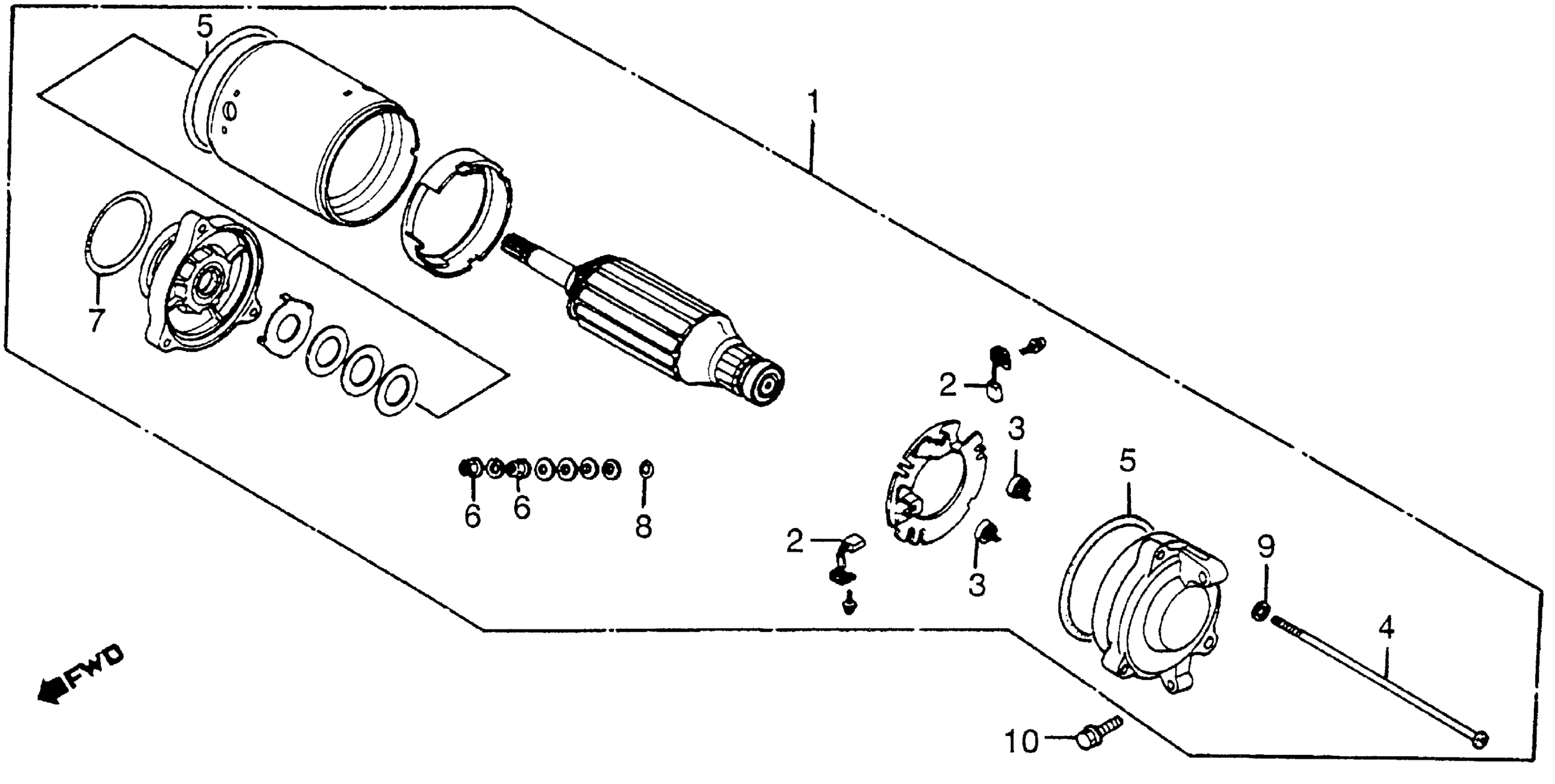

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 STARTER MOTOR Diagram

MOTOR ASSY., STARTER This part replaces 31200-MB6-008.

31200-MB6-405

Unavailable

BRUSH, CARBON

31201-MG9-004

Unavailable

SPRING, CARBON BRUSH

31204-292-158

$3.67

BOLT, SETTING (NOT AVAILABLE) This part replaces 31205-MB6-000.

31205-MB4-000

Unavailable

O-RING (60X1.4)

31206-402-008

Unavailable

NUT-WASHER (6MM)

90071-MB0-000

$1.91

O-RING

91309-MA6-000

$3.78

O-RING (4X2)

91320-MB0-000

$2.24

WASHER, SPRING (5MM)

94111-05000

$1.04

BOLT, FLANGE (6X25)

96000-06025-00

$2.49

BOLT, FLANGE (6X25)

96001-06025-00

$2.49
