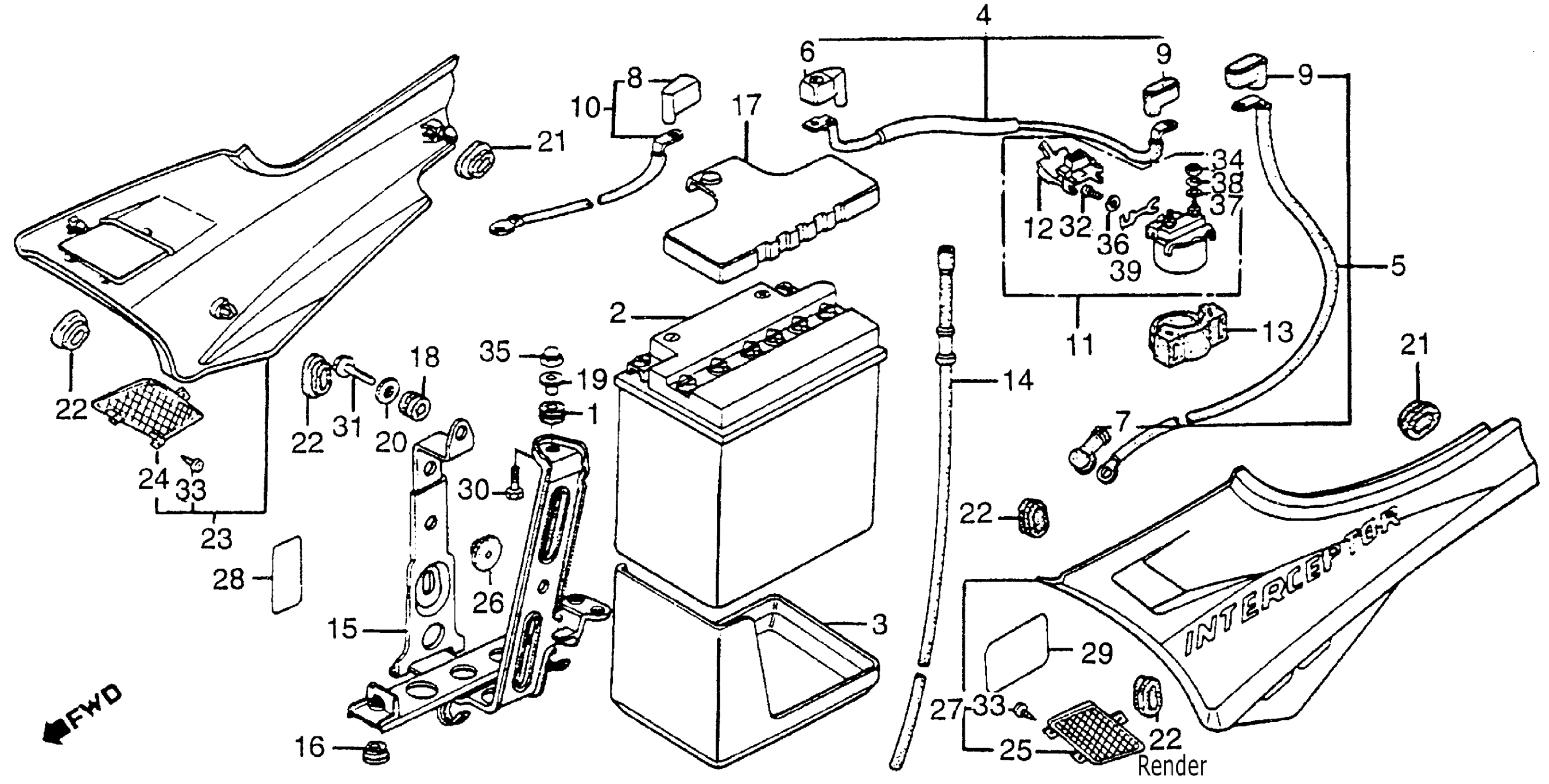

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 SIDE COVER + BATTERY Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

2

BATTERY ASSY. This part replaces 31500-MB6-671.

31500-MB6-672

Unavailable

2

BATTERY ASSY.

31500-MB6-672

Unavailable

3

RUBBER, BATTERY (NOT AVAILABLE)

31521-MB6-000

Unavailable

4

CABLE, BATTERY STARTER (NOT AVAILABLE)

32401-MB6-000

Unavailable

5

CABLE, STARTER MOTOR (NOT AVAILABLE)

32402-MB6-000

Unavailable

6

COVER, BATTERY TERMINAL (NOT AVAILABLE)

32411-MB6-000

Unavailable

7

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

7

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

8

COVER, BATTERY TERMINAL

32412-MB6-000

Unavailable

9

COVER A, MAGNETIC SWITCH (NOT AVAILABLE)

32412-443-900

Unavailable

10

CABLE, BATTERY GROUND This part replaces 32601-MB6-000.

32601-MB6-630

Unavailable

11

SWITCH ASSY., STARTER MAGNETIC

35850-MB0-007

$131.64

12

COVER, FUSE (NOT AVAILABLE)

35852-MB0-007

Unavailable

13

RUBBER, SHOCK ABSORBER

35856-MB0-007

Unavailable

14

TUBE, BATTERY (NOT AVAILABLE)

50238-MB2-000

Unavailable

15

BOX, BATTERY This part replaces 50320-MB6-000.

50320-MB6-010

Unavailable

16

RUBBER, BATTERY BOX MOUNTING (NOT AVAILABLE)

50324-MB2-000

Unavailable

17

RUBBER, BATTERY (UPPER) (NOT AVAILABLE)

50327-MB6-000

Unavailable

18

GROMMET

50329-MB2-000

$5.06

19

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

19

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

19

COLLAR, RR. FENDER (NOT AVAILABLE)

61105-428-000

Unavailable

20

WASHER, SEAT MOUNTING

77302-124-000

$3.23

21

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

22

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

23

COVER SET, R. SIDE *NH138* (SHASTA WHITE) (NOT AVAILABLE)

836A0-MB6-670ZA

Unavailable

24

GRILLE, R. SIDE COVER (NOT AVAILABLE)

83602-MB6-300

Unavailable

25

GRILLE, L. SIDE COVER (NOT AVAILABLE)

83603-MB6-300

Unavailable

26

RUBBER, BATTERY BOX

83618-323-000

$2.47

27

COVER SET, L. SIDE *NH138* (SHASTA WHITE) (NOT AVAILABLE)

837A0-MB6-670ZA

Unavailable

28

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87506-MB6-300

Unavailable

29

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-415-670

Unavailable

30

BOLT, SPECIAL (6X20) (NOT AVAILABLE)

90008-MB2-000

Unavailable

31

BOLT, SPECIAL (6X14)

90011-729-000

$1.49

32

SCREW, PAN (4X6)

93500-04006-0H

$1.49

32

SCREW, PAN (4X6) This part replaces 93500-04006-1H.

93500-04006-0H

$1.49

33

SCREW, TAPPING (4X10)

93901-34220

$1.49

34

NUT, HEX. (6MM)

94002-06000-0S

$1.49

35

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

35

NUT, CAP (6MM)

94021-06020

$1.73

35

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

35

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

36

WASHER, PLAIN (4MM)

94101-04800

$1.49

37

WASHER, PLAIN (6MM)

94101-06800

$1.49

38

WASHER, SPRING (6MM)

94111-06800

$1.49

39

FUSE F (30A)

98200-53000

$1.49
