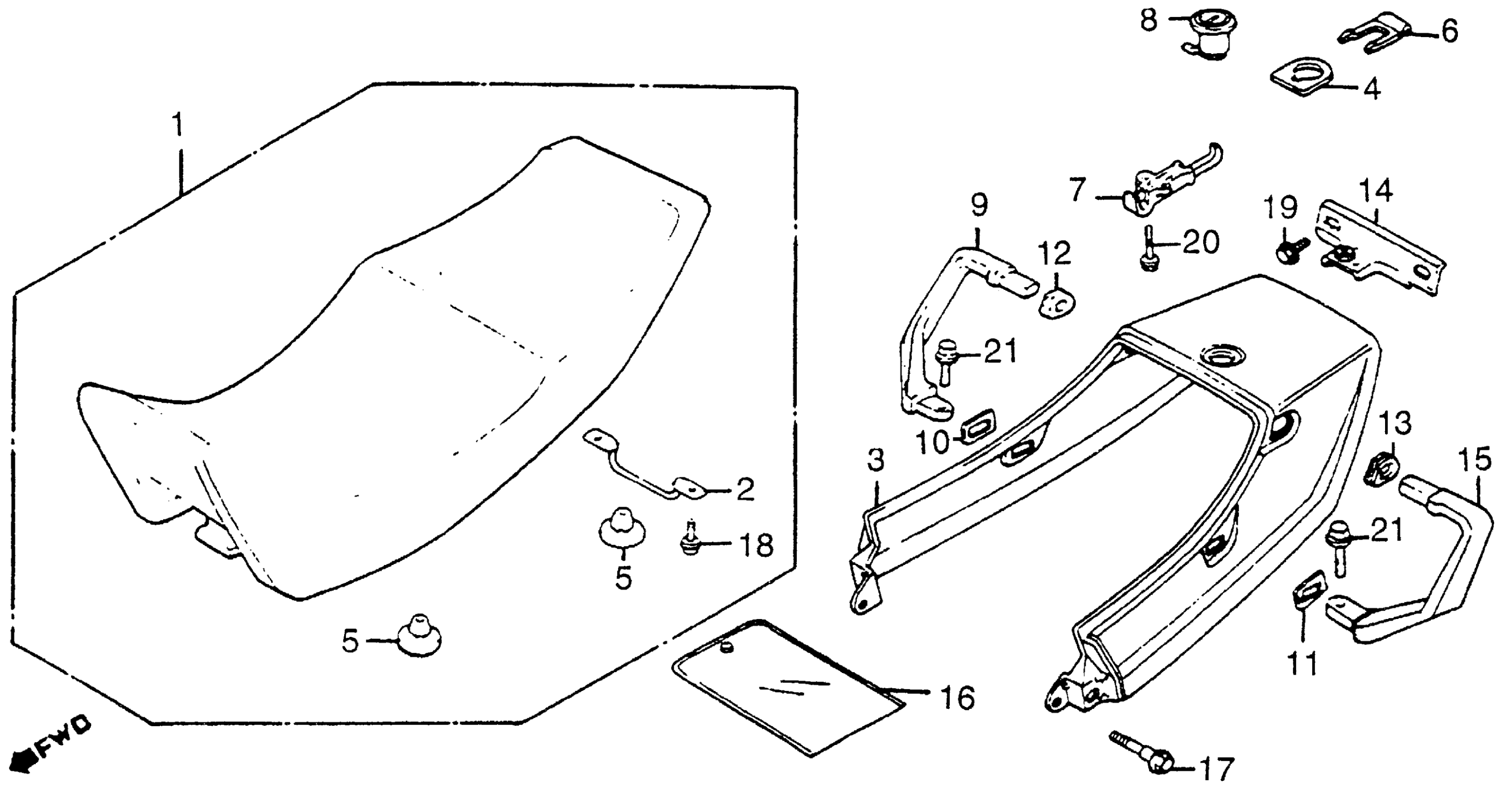

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 SEAT + REAR COWL Diagram

#

Description
Price

1

SEAT ASSY., DOUBLE *B43L* (LUSTER BLUE) (NOT AVAILABLE)

77100-MB6-670ZA

Unavailable

2

BAR, SEAT LOCK (NOT AVAILABLE)

77102-MB2-300

Unavailable

3

COWL SET, RR. *NH138* (TYPE1) (SHASTA WHITE) (NOT AVAILABLE)

772A0-MB6-000ZA

Unavailable

4

PLATE, SEAT LOCK (NOT AVAILABLE)

77207-MB2-000

Unavailable

5

RUBBER, SEAT STOPPER

77211-MB0-000

$6.72

6

SPRING, LOCK KEY SETTING (NOT AVAILABLE)

77211-MB2-000

Unavailable

7

HOOK, SEAT CATCH This part replaces 77220-MB2-003.

77220-MJ6-013

Unavailable

8

LOCK ASSY., SEAT

77225-ME4-003

Unavailable

9

GRIP, R. RR.

77330-MB2-000

Unavailable

10

RUBBER, R. RR. GRIP (A) (NOT AVAILABLE)

77331-MB2-000

Unavailable

11

RUBBER, L. RR. GRIP (A) (NOT AVAILABLE)

77332-MB2-000

Unavailable

12

RUBBER, R. RR. GRIP (B) (NOT AVAILABLE)

77333-MB2-000

Unavailable

13

RUBBER, L. RR. GRIP (B) (NOT AVAILABLE)

77334-MB2-000

Unavailable

14

JOINT, RR. GRIP (NOT AVAILABLE)

77335-MB2-000

Unavailable

15

GRIP, L. RR. (NOT AVAILABLE)

77340-MB2-000

Unavailable

16

BAG, OWNER'S MANUAL

83642-171-000

Unavailable

17

BOLT, FLANGE (6MM)

90111-187-000

$5.59

18

SCREW-WASHER (4X8)

93891-04008-08

$1.49

19

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

19

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

19

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49

20

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

20

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

21

BOLT, FLANGE (8X20) This part replaces 95700-08020-07.

95701-08020-07

$1.87

21

BOLT, FLANGE (8X20)

95701-08020-07

$1.87
