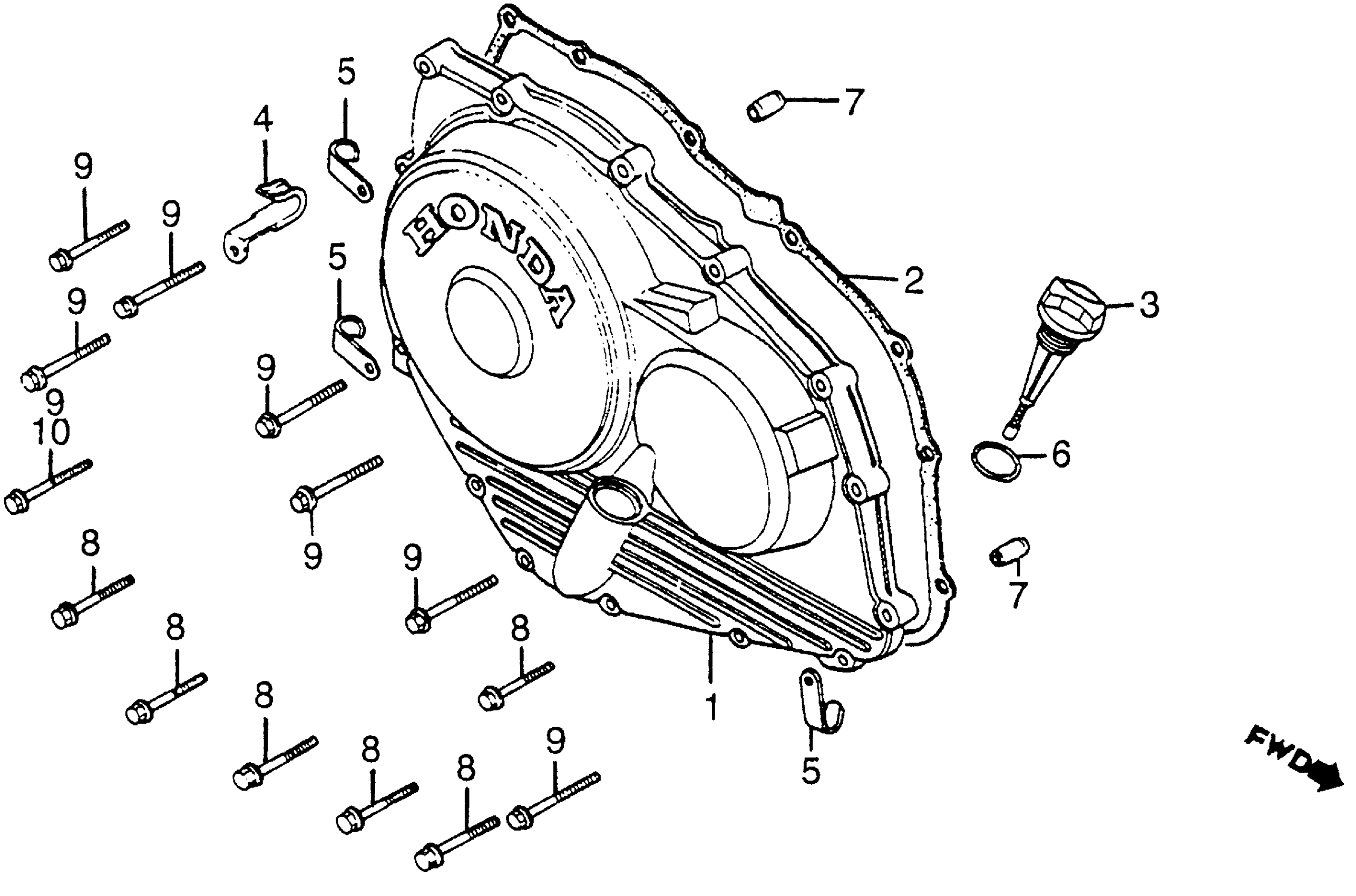

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 RIGHT CRANKCASE COVER Diagram

COVER ASSY., R. (NOT AVAILABLE)

11330-MB6-000

Unavailable

COVER ASSY., R. (NOT AVAILABLE) | Use up to Engine SN 2005130 This part replaces 11331-MB6-000.

11330-MB6-000

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11394-MB0-000.

11394-MB0-306

$43.97

GASKET, R. CRANKCASE COVER

11394-MB0-306

$43.97

DIPSTICK, OIL This part replaces 15650-MB2-000.

15650-MR1-000

$24.92

DIPSTICK, OIL

15650-MR1-000

$24.92

CLAMP, PULSER WIRE

30301-MB0-000

Unavailable

CLAMP, SWITCH WIRE

35211-443-760

$4.13

O-RING (21.5X3.2)

91307-425-003

$2.59

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

BOLT, FLANGE (6X32) | Use up to Engine SN 2005130 This part replaces 96000-06032-07.

96001-06032-07

$1.54

BOLT, FLANGE (6X32) | Use from Engine SN 2005131 This part replaces 96000-06032-07.

96001-06032-07

$1.54

BOLT, FLANGE (6X32) | Use up to Engine SN 2005130

96001-06032-07

$1.54

BOLT, FLANGE (6X32) | Use from Engine SN 2005131

96001-06032-07

$1.54

BOLT, FLANGE (6X35) | Use up to Engine SN 2005130 This part replaces 96000-06035-07.

96001-06035-07

$2.06

BOLT, FLANGE (6X35) | Use up to Engine SN 2005130

96001-06035-07

$2.06
