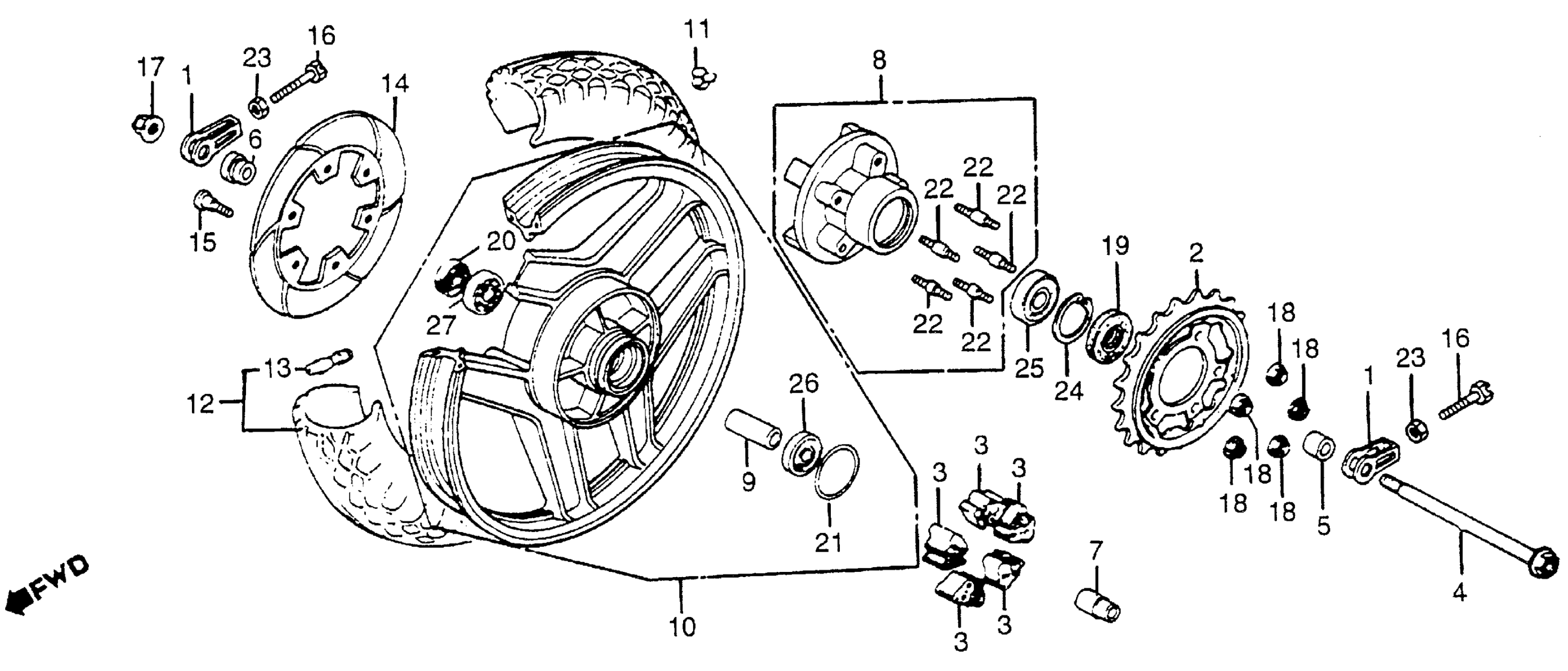

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN (NOT AVAILABLE)

40543-MB6-000

Unavailable

2

SPROCKET, FINAL DRIVEN

41200-MB6-630

Unavailable

2

SPROCKET, FINAL DRIVEN This part replaces 41200-445-000.

41200-MB6-630

Unavailable

3

DAMPER, RR. WHEEL

41241-MA6-000

$17.42

4

AXLE, RR. WHEEL This part replaces 42301-MB2-000.

42301-MB6-630

Unavailable

5

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-MB2-000

Unavailable

6

COLLAR, RR. BRAKE PANEL SIDE

42313-422-000

$38.23

7

SLEEVE, RR. AXLE

42605-393-000

Unavailable

8

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42610-MJ0-000

Unavailable

9

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MJ0-000.

42620-ML7-000

Unavailable

9

COLLAR, RR. AXLE DISTANCE

42620-ML7-000

Unavailable

10

WHEEL, RR. (NOT AVAILABLE)

42650-MB6-670

Unavailable

11

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

11

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

11

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

11

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

11

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

12

TIRE ASSY., RR. (140/80V17) (V250 K500) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MB6-611.

42710-MB6-612

Unavailable

12

TIRE ASSY., RR. (140/80V17) (V250 K500) (DUNLOP) (NOT AVAILABLE)

42710-MB6-612

Unavailable

12

TIRE ASSY., RR. (140/80V17) (V250 K500) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MB6-781.

42710-MB6-612

Unavailable

12

TIRE ASSY., RR. (140/80V17) (V250 K500) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MB6-782.

42710-MB6-612

Unavailable

13

VALVE, RIM (BS)

42753-425-003

$11.00

13

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

14

DISK, RR. BRAKE (NOT AVAILABLE)

43351-MJ0-000

Unavailable

15

BOLT, FR. DISK (8X33) This part replaces 90105-MB0-000.

90105-MB0-010

Unavailable

15

BOLT, FR. DISK (8X33) (NOT AVAILABLE)

90105-MB0-010

Unavailable

16

BOLT, CHAIN ADJUSTING

90119-438-000

Unavailable

17

NUT, U (18MM)

90305-MB4-003

$12.52

18

NUT, FLANGE (12MM)

90309-375-003

$8.61

19

OIL SEAL (34X62.2X7)

90753-MG5-670

$12.86

20

DUST SEAL (30X52X7)

91253-442-003

$13.96

21

O-RING (61X2)

91302-MA6-003

$5.17

22

BOLT, STUD (12X50) (NOT AVAILABLE)

92716-12050-0E

Unavailable

23

NUT, HEX. (10MM)

94001-10000-0S

$1.49

24

CIRCLIP (INNER) (62MM)

94520-62000

$2.13

25

BEARING, RADIAL BALL (6305U) (NOT AVAILABLE)

96140-63050-10

Unavailable

26

BEARING, RADIAL BALL (6204UU)

96150-62040-10

$18.44

27

BEARING, RADIAL BALL (6304UU)

96150-63040-10

$18.04
