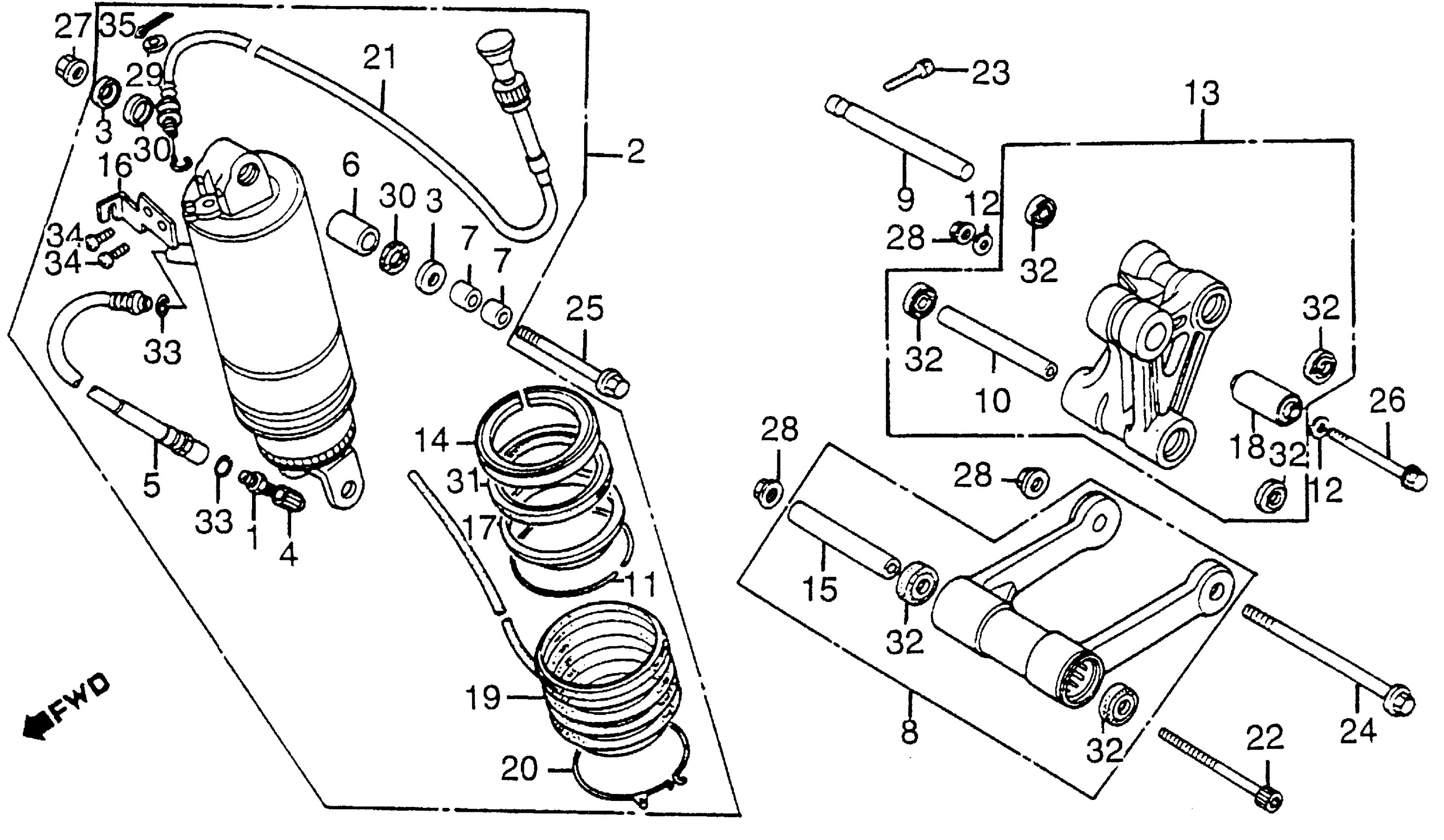

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

VALVE, AIR

51456-469-013

$33.69

2

SHOCK ABSORBER, RR. This part replaces 52400-MB6-003.

52400-MJ4-405

Unavailable

3

CAP (SHOWA) (NOT AVAILABLE)

52406-MA1-731

Unavailable

4

CAP, AIR VALVE

52425-169-003

$4.94

5

HOSE, RR. SHOCK ABSORBER (NOT AVAILABLE)

52432-MB2-701

Unavailable

6

METAL, BUSH (NOT AVAILABLE)

52452-MA1-731

Unavailable

7

COLLAR, BUSH (NOT AVAILABLE)

52453-MB6-003

Unavailable

8

ROD ASSY., SHOCK CONNECTING (NOT AVAILABLE)

52460-MB6-000

Unavailable

9

SHAFT, CUSHION ARM (UPPER) (NOT AVAILABLE)

52462-MB2-700

Unavailable

10

COLLAR, CONNECTING ROD (LOWER)

52463-MB6-000

Unavailable

11

RING B, STOPPER (NOT AVAILABLE)

52463-MC7-013

Unavailable

12

WASHER, THRUST

52466-MB2-000

Unavailable

13

ARM ASSY., SHOCK ABSORBER (NOT AVAILABLE)

52470-MB6-000

Unavailable

14

CASE, GUIDE

52472-MC7-003

Unavailable

15

COLLAR, CONNECTING ROD (NOT AVAILABLE)

52475-MJ0-000

Unavailable

16

HOLDER, ADJUSTING (NOT AVAILABLE)

52476-MJ0-003

Unavailable

17

RING, BACK-UP (NOT AVAILABLE)

52477-MC7-013

Unavailable

18

BUSH, SHOCK ABSORBER (NOT AVAILABLE)

52485-MA2-003

Unavailable

19

BOOT, RR. SHOCK (NOT AVAILABLE)

52611-MB2-003

Unavailable

20

BAND, BOOT

52612-MA2-003

$5.98

21

CABLE, CONTROL (NOT AVAILABLE)

52650-MB6-003

Unavailable

22

BOLT, SOCKET (10X115) (NOT AVAILABLE)

90105-MB6-000

Unavailable

23

BOLT, SOCKET

90116-391-670

Unavailable

24

BOLT, FLANGE (10X100)

90108-MR8-000

Unavailable

24

BOLT, FLANGE (10X100) This part replaces 90153-MA1-000.

90108-MR8-000

Unavailable

25

BOLT, FLANGE (10X66)

90182-MB2-003

$9.21

26

BOLT D, FLANGE (NOT AVAILABLE)

90189-MA2-003

Unavailable

27

NUT, AXLE (10MM)

90304-GA6-003

$2.89

28

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

29

WASHER, PLAIN (NOT AVAILABLE)

90550-MJ0-003

Unavailable

30

DUST SEAL (SHOWA) (NOT AVAILABLE)

91254-MA1-731

Unavailable

31

OIL SEAL (65X80X10.5)

91257-MC7-003

Unavailable

32

DUST SEAL, CONNECTING ROD PIVOT

91262-MB2-005

$3.83

33

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

33

O-RING (5.8X1.9)

91305-323-000

$2.92

33

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

34

SCREW, PAN (4X8)

93500-04008-0G

$1.49

34

SCREW, PAN (4X8) This part replaces 93500-04008-1G.

93500-04008-0G

$1.49

35

PIN, SPLIT (1.6)

94201-16080

$1.49
