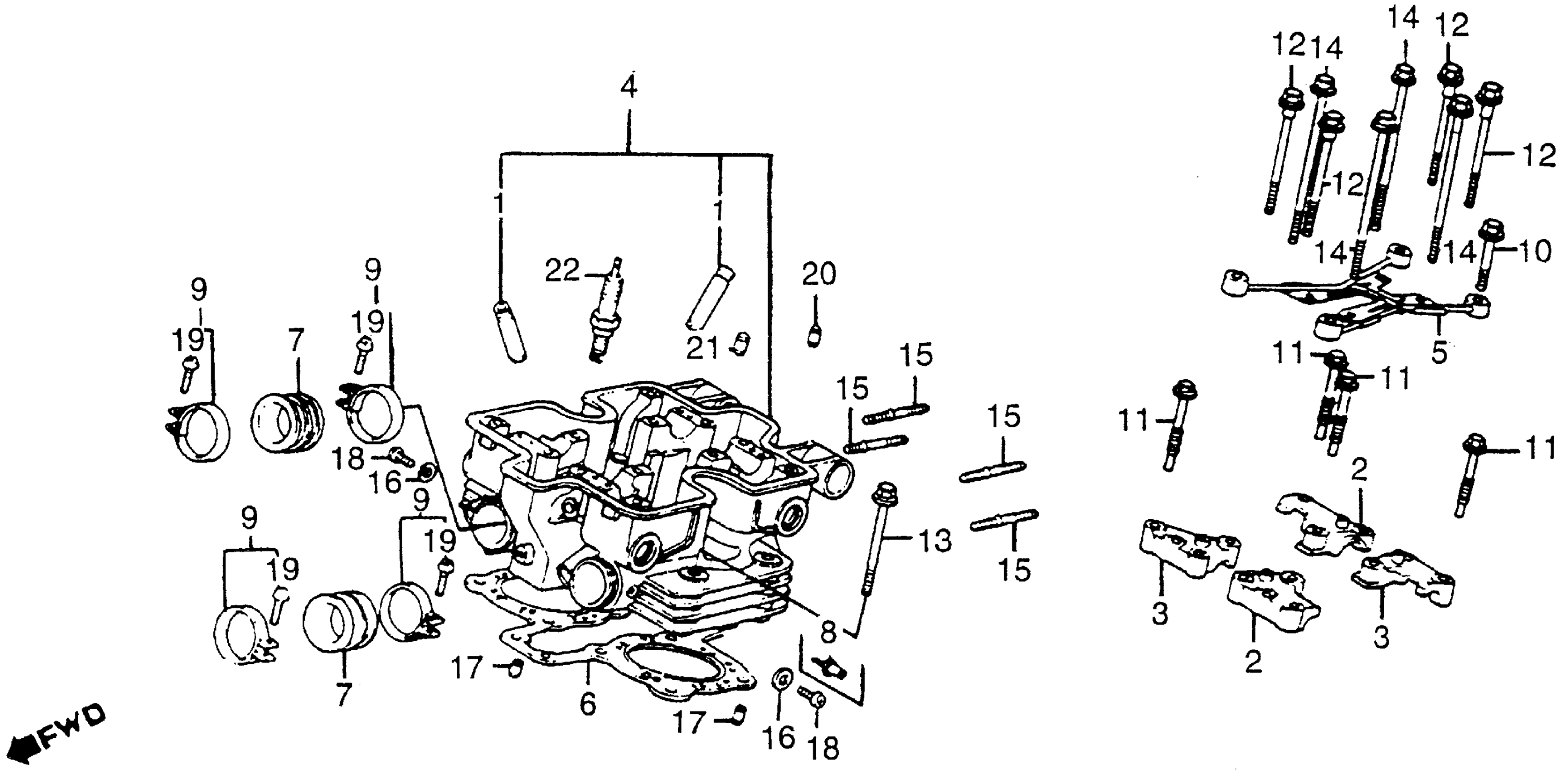

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 REAR CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE (OS) This part replaces 12204-MB0-405.

12204-MS2-305

Unavailable

1

GUIDE, VALVE (OVER SIZE)

12204-MS2-305

Unavailable

2

HOLDER A, CAMSHAFT This part replaces 12211-MB6-000.

12211-MB6-020

Unavailable

2

HOLDER A, CAMSHAFT This part replaces 12211-MB6-010.

12211-MB6-020

Unavailable

2

HOLDER A, CAMSHAFT

12211-MB6-020

Unavailable

3

HOLDER B, CAMSHAFT (NOT AVAILABLE) This part replaces 12212-MB6-000.

12212-MB6-020

Unavailable

3

HOLDER B, CAMSHAFT (NOT AVAILABLE) This part replaces 12212-MB6-010.

12212-MB6-020

Unavailable

3

HOLDER B, CAMSHAFT (NOT AVAILABLE)

12212-MB6-020

Unavailable

4

CYLINDER HEAD, RR. (NOT AVAILABLE) | Use up to Engine SN 2009920 This part replaces 12220-MB6-000.

12220-MB6-030

Unavailable

4

CYLINDER HEAD, RR. (NOT AVAILABLE) This part replaces 12220-MB6-010.

12220-MB6-030

Unavailable

4

CYLINDER HEAD, RR. (NOT AVAILABLE) This part replaces 12220-MB6-020.

12220-MB6-030

Unavailable

4

CYLINDER HEAD, RR. (NOT AVAILABLE)

12220-MB6-030

Unavailable

5

PIPE A, OIL PASSAGE (NOT AVAILABLE) This part replaces 12230-MB0-000.

12230-MB0-010

Unavailable

5

PIPE A, OIL PASSAGE (NOT AVAILABLE)

12230-MB0-010

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-MB6-000.

12251-MB6-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-MB6-010.

12251-MB6-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-MB6-020.

12251-MB6-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-MB6-030.

12251-MB6-306

Unavailable

7

INSULATOR, CARBURETOR This part replaces 16212-MB6-000.

16212-MB6-010

$14.02

7

INSULATOR, CARBURETOR

16212-MB6-010

$14.02

9

BAND, INSULATOR This part replaces 16219-MB0-770.

16223-KS5-000

$14.20

9

BAND, INSULATOR

16223-KS5-000

$14.20

10

BOLT, FLANGE (6X52) This part replaces 90001-MB0-000.

90009-HA0-000

$4.24

10

BOLT, FLANGE (6X52)

90009-HA0-000

$4.24

11

BOLT, FLANGE (6X58) (NOT AVAILABLE)

90003-MB6-000

Unavailable

12

BOLT, UBS (8X151) (NOT AVAILABLE)

90006-MB0-010

Unavailable

13

BOLT, UBS (9X93) This part replaces 90011-MB0-770.

90011-MB0-000

$10.11

14

BOLT, UBS (9X175) (NOT AVAILABLE)

90012-MB6-003

Unavailable

15

BOLT, STUD (7-6X47)

90035-MB6-000

Unavailable

16

WASHER, SEALING (5MM)

90452-323-000

$1.59

17

PIN, DOWEL (12X24) (NOT AVAILABLE)

91102-MB6-000

Unavailable

18

SCREW, PAN (5X8)

93500-05008-0G

$1.49

19

SCREW, PAN (5X25)

93500-05025-0G

$1.49

20

PIN, DOWEL (8X14)

94301-08140

$2.25

21

PIN, DOWEL (12X20)

94301-12200

$2.29

22

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

22

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

22

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

22

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

22

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

22

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
