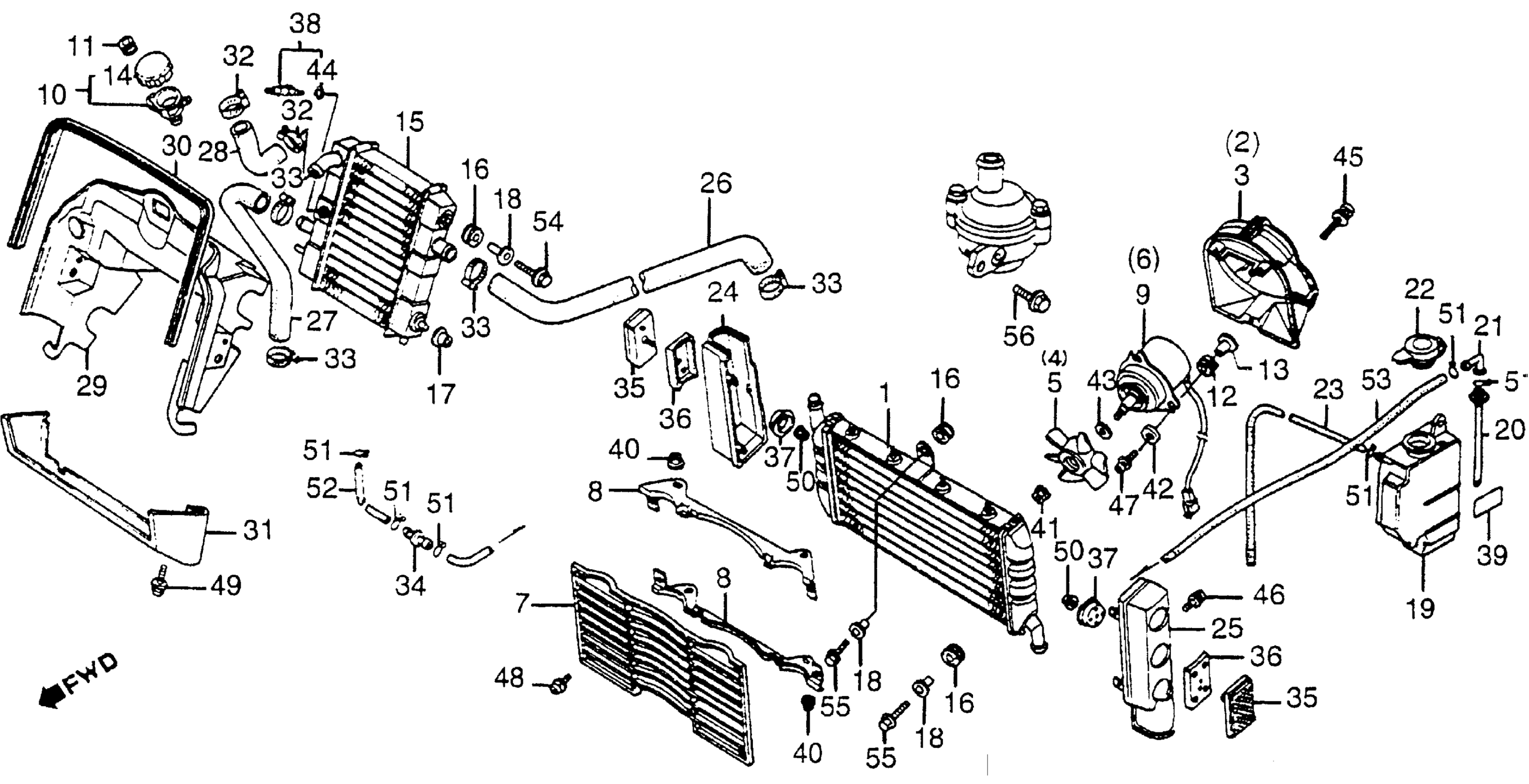

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 RADIATOR Diagram

RADIATOR, MAIN (NOT AVAILABLE)

19010-MB6-003

Unavailable

SHROUD, R. (NOT AVAILABLE)

19015-MB6-003

Unavailable

SHROUD, L. (NOT AVAILABLE)

19020-MB6-003

Unavailable

FAN, R. COOLING (NOT AVAILABLE)

19024-MB6-003

Unavailable

FAN, L. COOLING (NOT AVAILABLE)

19025-MB6-003

Unavailable

MOTOR ASSY., R. FAN (NOT AVAILABLE)

19030-MB6-003

Unavailable

GRILLE, RADIATOR (NOT AVAILABLE)

19032-MB2-000

Unavailable

BRACKET, GRILLE (NOT AVAILABLE)

19033-MB6-003

Unavailable

MOTOR ASSY., L. FAN (NOT AVAILABLE)

19035-MB6-003

Unavailable

FILLER NECK ASSY. (NOT AVAILABLE)

19035-ME9-003

Unavailable

RUBBER, FILLER NECK STOPPER

19038-ME9-000

$4.08

GROMMET

19031-HA7-671

$4.04

GROMMET This part replaces 19041-MB6-003.

19031-HA7-671

$4.04

COLLAR

19032-HA7-671

$3.48

COLLAR This part replaces 19044-MB6-003.

19032-HA7-671

$3.48

CAP, RADIATOR This part replaces 19045-MB0-013.

19045-MZ3-405

$32.49

CAP, RADIATOR (TOYO)

19045-MZ3-405

$32.49

SUB-RADIATOR (NOT AVAILABLE)

19050-MB6-003

Unavailable

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.80

RUBBER, RADIATOR MOUNTING

19051-MB2-000

$4.53

COLLAR, RADIATOR MOUNTING

19052-MB0-000

$6.34

TANK, RESERVE (NOT AVAILABLE)

19101-MB6-000

Unavailable

TUBE, LEVEL (NOT AVAILABLE)

19102-MB6-000

Unavailable

JOINT, TUBE (NOT AVAILABLE)

19103-463-000

Unavailable

CAP, RESERVE TANK

19104-MB0-700

$12.16

TUBE, OVERFLOW (NOT AVAILABLE)

19107-MB6-000

Unavailable

COVER, R. RADIATOR (NOT AVAILABLE)

19110-MB6-000

Unavailable

COVER, L. RADIATOR (NOT AVAILABLE)

19111-MB6-000

Unavailable

HOSE A, RADIATOR (NOT AVAILABLE)

19115-MB6-000

Unavailable

HOSE, RADIATOR (B) (NOT AVAILABLE)

19116-MB6-000

Unavailable

HOSE C, RADIATOR (NOT AVAILABLE)

19117-MB6-000

Unavailable

SHROUD, FR. RADIATOR (A) (NOT AVAILABLE) This part replaces 19140-MB6-000.

19140-MB6-630

Unavailable

SHROUD, FR. RADIATOR (A) (NOT AVAILABLE)

19140-MB6-630

Unavailable

RUBBER, FR. SHROUD (NOT AVAILABLE)

19141-MB6-000

Unavailable

COVER, SUB-RADIATOR (LOWER) (NOT AVAILABLE)

19201-MB6-000

Unavailable

CLAMP, WATER HOSE

19506-KA4-000

$9.18

CLAMP, WATER HOSE

19516-MB6-000

$14.41

JOINT, OIL TUBE

55102-166-000

$4.08

REFLECTOR, FR. REFLEX

33741-MB2-671

$14.86

BASE, REFLEX REFLECTOR (NOT AVAILABLE)

33752-MB2-670

Unavailable

BRACKET, REFLEX REFLECTOR

33753-MB2-670

Unavailable

SWITCH ASSY., THERMO (NOT AVAILABLE)

37760-MB6-013

Unavailable

LABEL, RESERVE TANK

87507-MB4-670

Unavailable

NUT-WASHER (6MM)

90311-GC3-000

Unavailable

NUT, SPECIAL (5MM) (MITSUBA)

90311-MB6-003

$4.70

WASHER, SPECIAL (NOT AVAILABLE)

90501-MB6-003

Unavailable

WASHER, PLAIN (7MM)

90511-MB6-003

Unavailable

O-RING (13.5X1.4)

91307-PH7-660

$2.83

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

BOLT-WASHER (6X10)

93493-06010-07

Unavailable

SCREW, PAN (4X6)

93500-04006-0G

$1.49

SCREW, PAN (4X20)

93500-04020-0H

$1.49

SCREW-WASHER (4X10)

93891-04010-07

$1.49

SCREW-WASHER (4X10)

93891-04010-08

$1.49

SCREW-WASHER (5X12)

93893-05012-07

$1.49

NUT, FLANGE (5MM)

94050-05000

$1.49

CLIP, TUBE (C11)

95002-70000

$1.56

BULK HOSE, VACUUM (7X3000) (7X600)

95005-70003-30M

$23.45

BULK HOSE, VACUUM (7X3000) (7X700)

95005-70003-30M

$23.45

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
