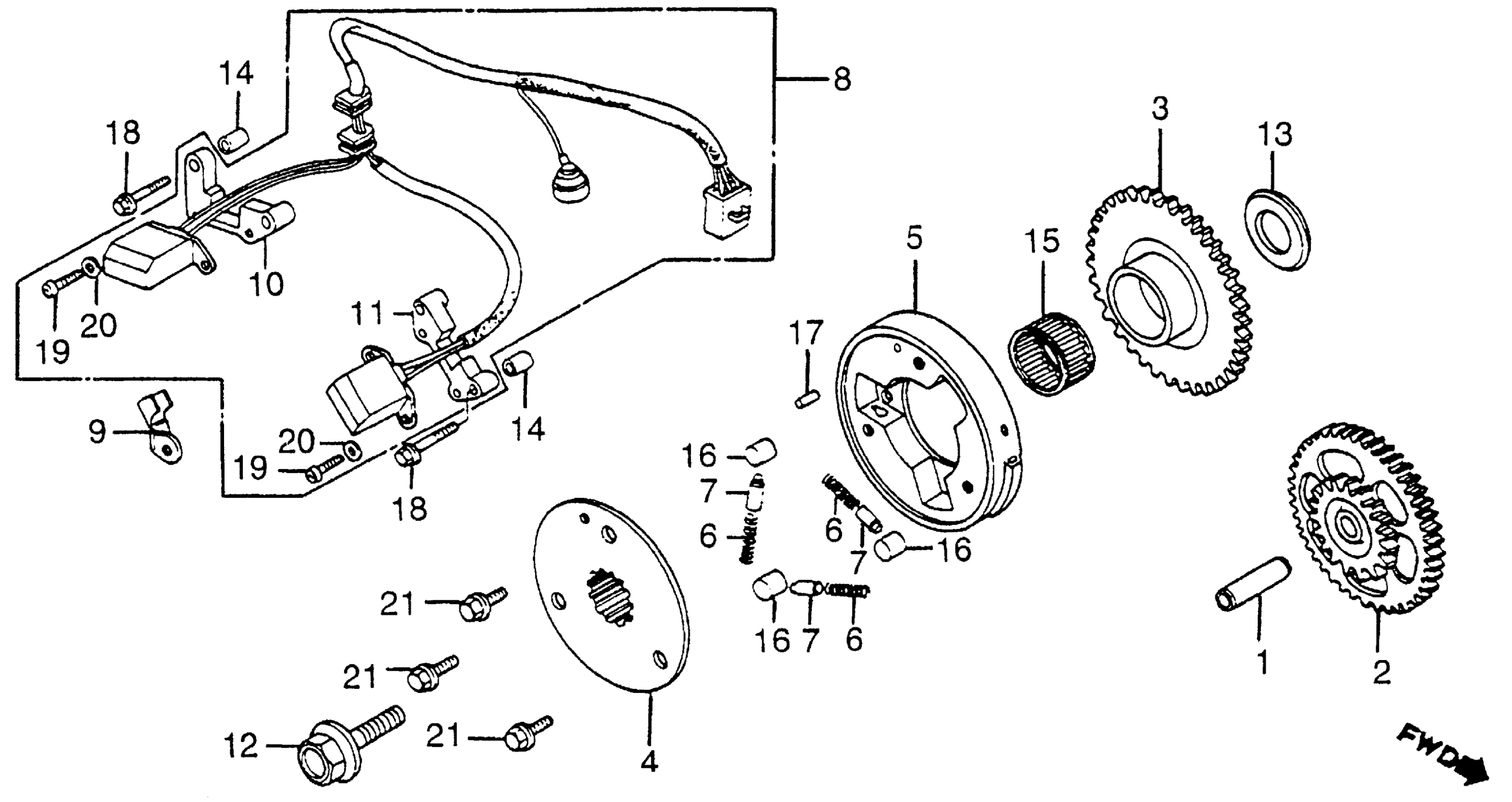

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 PULSE GENERATOR + STARTER CLUTCH Diagram

#

Description
Price

1

PIN, PISTON This part replaces 13111-GK8-000.

13111-GS7-000

$9.55

1

PIN, PISTON

13111-GS7-000

$9.55

1

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$9.55

2

GEAR, STARTER REDUCTION (NOT AVAILABLE)

28101-MB6-000

Unavailable

3

GEAR, STARTER CLUTCH (NOT AVAILABLE) | Use up to Engine SN 2009849

28110-MB6-000

Unavailable

3

GEAR, STARTER CLUTCH (NOT AVAILABLE) | Use from Engine SN 2009850

28110-MB6-010

Unavailable

4

FLANGE, STARTER CLUTCH (NOT AVAILABLE) | Use up to Engine SN 2009849

28115-MB6-000

Unavailable

4

FLANGE, STARTER CLUTCH (NOT AVAILABLE) | Use from Engine SN 2009850

28115-MB6-010

Unavailable

5

CLUTCH, STARTER (OUTER) (NOT AVAILABLE)

28120-MB6-000

Unavailable

6

SPRING, STARTER CLUTCH ROLLER

28125-516-030

$2.73

7

CAP, STARTER CLUTCH ROLLER SPRING

28126-415-000

$18.84

8

GENERATOR ASSY., PULSE This part replaces 30300-MB0-154.

30300-MJ4-405

Unavailable

8

GENERATOR ASSY., PULSE This part replaces 30300-MB0-164.

30300-MJ4-405

Unavailable

8

GENERATOR ASSY., PULSE This part replaces 30300-MB0-174.

30300-MJ4-405

Unavailable

9

CLIP, PULSER WIRE (NOT AVAILABLE)

30301-MB6-000

Unavailable

10

STAY A, PULSE GENERATOR (TOYO)

30310-MB0-154

Unavailable

11

STAY B, PULSE GENERATOR (TOYO)

30320-MB0-154

Unavailable

12

BOLT, FLANGE (12X40) This part replaces 90017-MB4-000.

90017-MB6-680

Unavailable

13

WASHER, THRUST (NOT AVAILABLE)

90510-107-720

Unavailable

14

PIN, DOWEL (8X8)

90702-MB0-000

$3.80

15

BEARING, NEEDLE (30X35X20) This part replaces 91022-MB6-003.

91025-KT7-003

$22.11

15

BEARING, NEEDLE (30X35X20)

91025-KT7-003

$22.11

16

ROLLER (15X16) (NOT AVAILABLE)

91101-422-000

Unavailable

17

ROLLER (6X18) (NOT AVAILABLE)

91103-MB6-000

Unavailable

18

BOLT-WASHER (6X25)

93401-06025-00

$1.49

18

BOLT-WASHER (6X25) This part replaces 93491-06025-00.

93401-06025-00

$1.49

19

SCREW, PAN (4X10)

93500-04010-0H

$1.49

20

WASHER, SPRING (4MM)

94111-04800

$1.49

21

BOLT, FLANGE (8X16) This part replaces 95700-08016-08.

95701-08016-08

$1.80

21

BOLT, FLANGE (8X16)

95701-08016-08

$1.80

21

BOLT, FLANGE (8X16) This part replaces 95900-08016-0B.

95701-08016-08

$1.80

21

BOLT, FLANGE (8X16) This part replaces 95900-08016-08.

95701-08016-08

$1.80

21

BOLT, FLANGE (8X16) This part replaces 96500-08016-08.

95701-08016-08

$1.80
