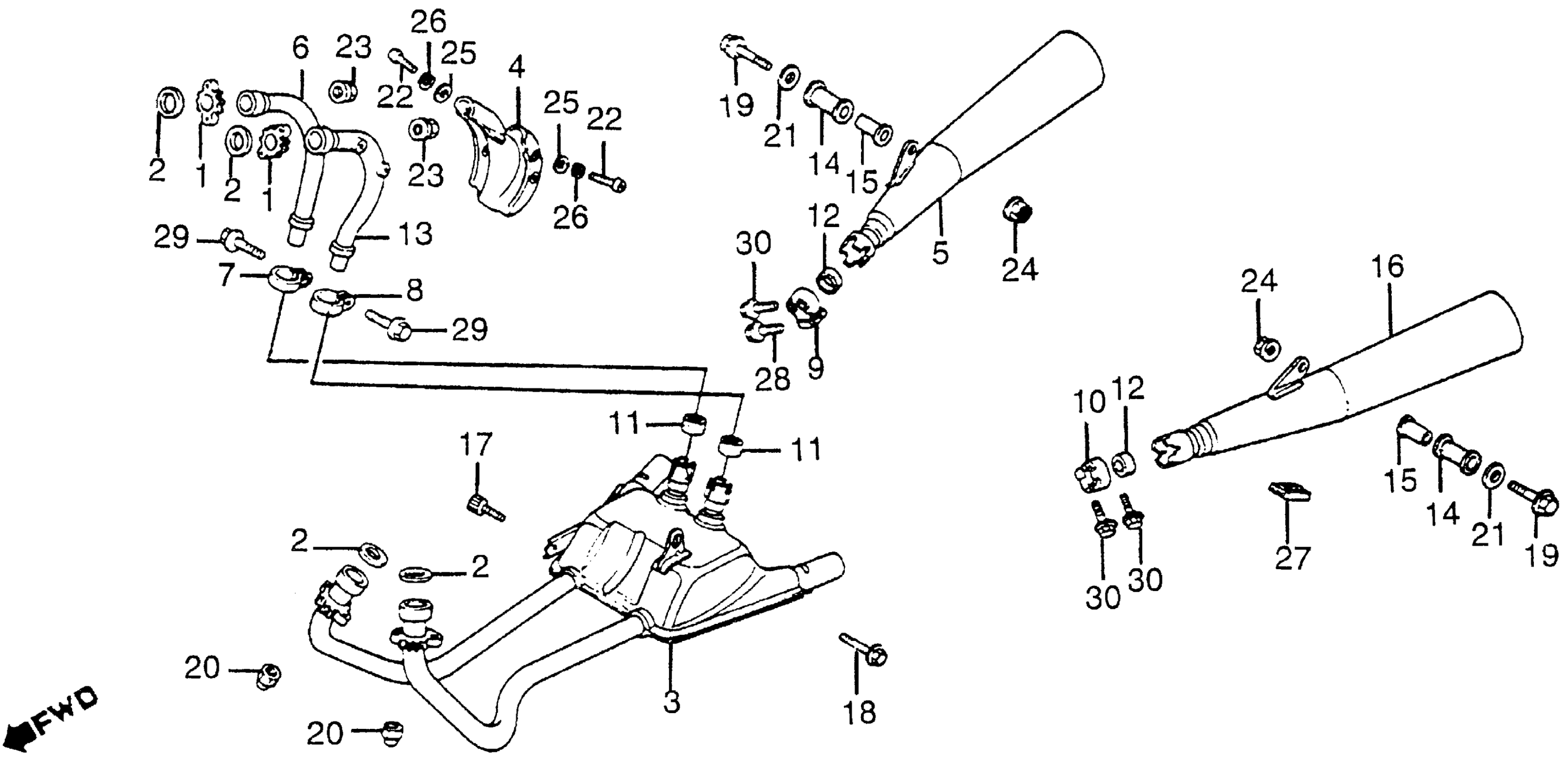

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-MB4-000

$43.26

2

GASKET, EX. PIPE

18291-MN4-920

$4.94

2

GASKET, EX. PIPE This part replaces 18291-236-000.

18291-MN4-920

$4.94

3

CHAMBER, EX. (NOT AVAILABLE) This part replaces 18300-MB6-003.

18300-MB6-630

Unavailable

3

CHAMBER, EX. (NOT AVAILABLE)

18300-MB6-630

Unavailable

4

PROTECTOR, RR. EX. PIPE (NOT AVAILABLE)

18316-MB6-003

Unavailable

5

MUFFLER, R. (NOT AVAILABLE)

18330-MB6-003

Unavailable

6

PIPE, R. RR. EX. (NOT AVAILABLE)

18370-MB6-003

Unavailable

7

BAND, R. EX. PIPE

18373-MB6-003

Unavailable

8

BAND, L. EX. PIPE

18374-MB6-003

Unavailable

9

BAND, MUFFLER

18376-KV0-000

Unavailable

9

BAND, MUFFLER This part replaces 18376-MB2-003.

18376-KV0-000

Unavailable

10

BAND, L. MUFFLER This part replaces 18377-MB2-003.

18377-MT3-000

$27.65

10

BAND, L. MUFFLER

18377-MT3-000

$27.65

11

GASKET, EX. This part replaces 18391-MJ4-000.

18392-ML0-000

Unavailable

11

GASKET, EX. This part replaces 18391-425-000.

18392-ML0-000

Unavailable

11

GASKET, EX.

18392-ML0-000

Unavailable

12

GASKET, RR. MUFFLER

18392-MJ4-670

$14.41

12

GASKET, RR. MUFFLER This part replaces 18392-449-000.

18392-MJ4-670

$14.41

13

PIPE, L. RR. EX. (NOT AVAILABLE)

18420-MB6-003

Unavailable

14

RUBBER, MUFFLER SETTING

18421-438-000

$5.71

15

COLLAR, MUFFLER MOUNTING

18422-438-000

Unavailable

16

MUFFLER, L. (NOT AVAILABLE)

18430-MB6-003

Unavailable

17

BOLT, FLANGE (8X20) This part replaces 90103-MB6-000.

90103-426-000

Unavailable

17

BOLT, FLANGE (8X20)

90103-426-000

Unavailable

18

BOLT, FLANGE (8X28) (NOT AVAILABLE)

90104-MB6-000

Unavailable

19

BOLT, FLANGE (10X50) This part replaces 90176-MA5-000.

96400-10050-00

$1.90

19

BOLT, FLANGE (10X50) This part replaces 90176-422-000.

96400-10050-00

$1.90

19

BOLT, FLANGE (10X50)

96400-10050-00

$1.90

20

NUT, CAP (6MM)

90304-438-000

$6.64

21

WASHER, SPECIAL (10MM) (NOT AVAILABLE)

90557-438-000

Unavailable

22

SCREW, PAN (6X8)

93500-06008-4J

$2.09

23

NUT, FLANGE (6MM)

94050-06000

$0.59

24

NUT, FLANGE (10MM)

94050-10000

$1.41

25

WASHER, PLAIN (6MM)

94101-06800

Unavailable

26

WASHER, SPRING (6MM)

94111-06000

$0.86

27

RUBBER A, STAND STOPPER

95011-61000

$1.13

28

BOLT, FLANGE (8X32) This part replaces 95700-08032-07.

95701-08032-07

$2.88

28

BOLT, FLANGE (8X32)

95701-08032-07

$2.88

29

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.09

29

BOLT, FLANGE (8X35)

95701-08035-00

$2.09

30

BOLT, FLANGE (8X35) This part replaces 95700-08035-07.

95701-08035-07

$1.28

30

BOLT, FLANGE (8X35)

95701-08035-07

$1.28
