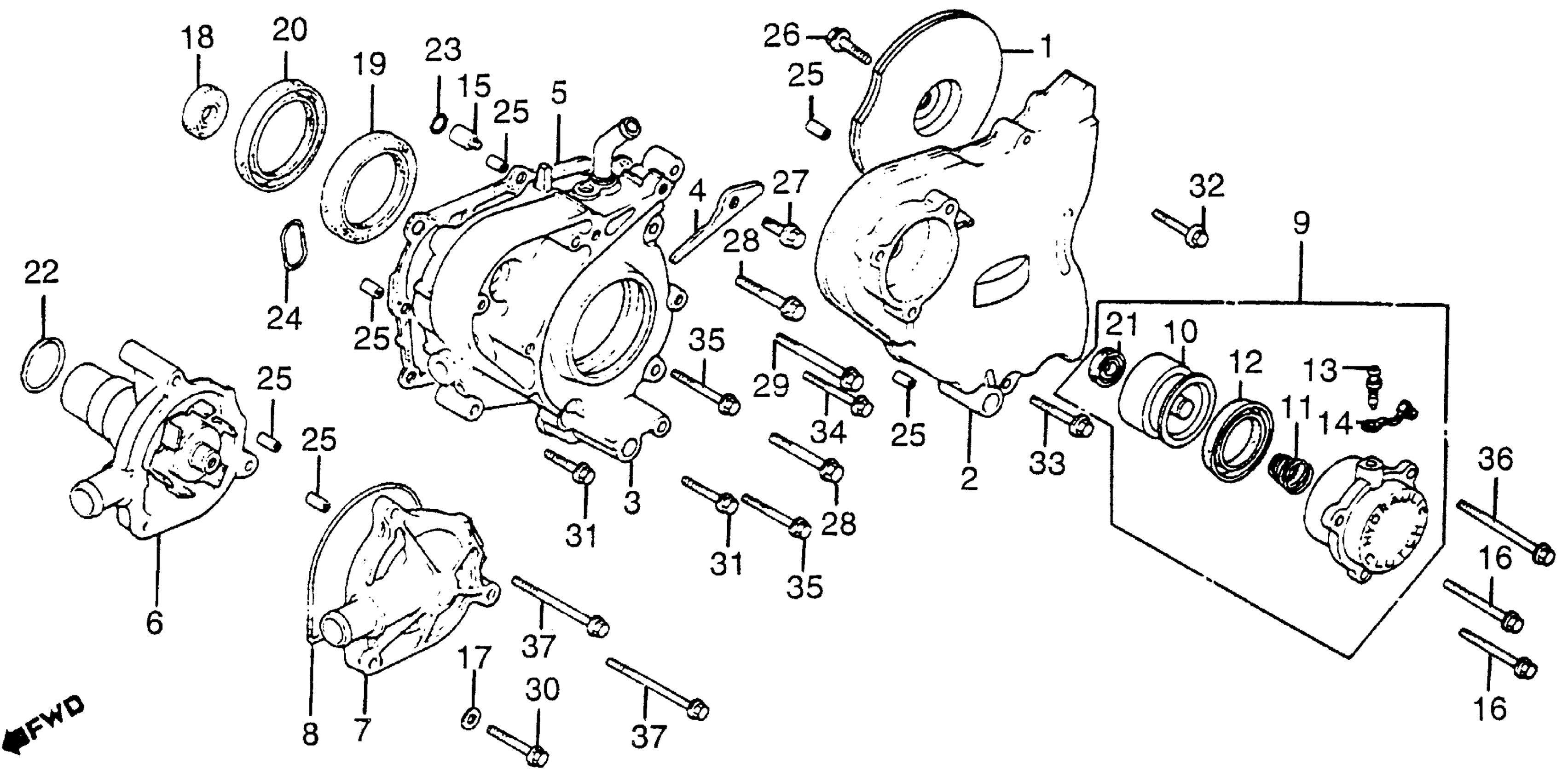

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 LEFT CRANKCASE COVER + WATER PUMP Diagram

#

Description
Price

1

PLATE, L. COVER (NOT AVAILABLE)

11350-MB6-000

Unavailable

2

COVER, L. CRANKCASE (NOT AVAILABLE)

11651-MB6-000

Unavailable

3

COVER, L. (INNER) (NOT AVAILABLE)

11661-MB6-000

Unavailable

4

GUIDE, DRIVE CHAIN (NOT AVAILABLE)

11663-MB2-000

Unavailable

5

GASKET, L. COVER (INNER) This part replaces 11666-MB2-000.

11666-MB2-306

Unavailable

6

WATER PUMP (NOT AVAILABLE) This part replaces 19200-MB6-000.

19200-MB6-020

Unavailable

6

WATER PUMP (NOT AVAILABLE)

19200-MB6-020

Unavailable

7

COVER, WATER PUMP (NOT AVAILABLE)

19221-MB6-000

Unavailable

8

GASKET, WATER PUMP COVER (NOT AVAILABLE)

19226-MB6-000

Unavailable

9

CYLINDER ASSY., CLUTCH SLAVE (NOT AVAILABLE)

22860-MB6-003

Unavailable

10

PISTON, SLAVE CYLINDER

22863-MG9-003

$29.05

11

SPRING, SLAVE CYLINDER

22864-MB0-003

$6.25

12

CUP

22865-MG9-003

$12.58

13

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

14

CAP, BLEEDER

43353-461-771

$5.05

15

ORIFICE, OIL CONTROL (NOT AVAILABLE)

90049-MB0-000

Unavailable

16

BOLT, FLANGE (6X55) (NOT AVAILABLE)

90051-MB2-000

Unavailable

17

WASHER (11MM)

90425-300-000

$2.66

18

OIL SEAL (8X25X8) (ARAI) This part replaces 91204-MB0-003.

91204-MB0-013

$4.06

18

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

19

OIL SEAL (40X58X9)

91206-MB2-000

Unavailable

19

OIL SEAL (40X58X9) (NOK) This part replaces 91206-MB2-003.

91206-MJ0-005

$12.23

19

OIL SEAL (40X58X9) (NOK) This part replaces 91206-MB2-004.

91206-MJ0-005

$12.23

19

OIL SEAL (40X58X9) (NOK)

91206-MJ0-005

$12.23

20

OIL SEAL (40X62X6) This part replaces 91207-MB2-003.

91207-MJ0-005

$14.70

20

OIL SEAL (40X62X6) This part replaces 91207-MB2-004.

91207-MJ0-005

$14.70

20

OIL SEAL (40X62X6)

91207-MJ0-005

$14.70

21

OIL SEAL (8X18X5)

91209-MB0-003

$4.06

22

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

23

O-RING (10X6X20.6X2.5) This part replaces 91303-MB2-003.

91303-MB2-004

Unavailable

23

O-RING (10X6X20.6X2.5) (NOT AVAILABLE)

91303-MB2-004

Unavailable

24

O-RING (5.7X2.2) (ARAI)

91308-MB0-003

$2.22

25

PIN, DOWEL (8X14)

94301-08140

$2.25

26

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

26

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

27

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

27

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

28

BOLT, FLANGE (8X35) This part replaces 95700-08035-08.

95701-08035-08

$1.49

28

BOLT, FLANGE (8X35)

95701-08035-08

$1.49

29

BOLT, FLANGE (8X68)

95700-08068-08

$2.43

29

BOLT, FLANGE (8X70)

95700-08070-08

Unavailable

30

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

30

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

31

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

31

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

32

BOLT, FLANGE (6X32) This part replaces 96000-06032-07.

96001-06032-07

$1.54

32

BOLT, FLANGE (6X32)

96001-06032-07

$1.54

33

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$2.06

33

BOLT, FLANGE (6X35)

96001-06035-07

$2.06

34

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

34

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

35

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

35

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

36

BOLT, FLANGE (6X60) This part replaces 96000-06060-07.

96001-06060-07

$2.07

36

BOLT, FLANGE (6X60)

96001-06060-07

$2.07

37

BOLT, FLANGE (6X70) This part replaces 96000-06070-07.

96001-06070-07

$2.15

37

BOLT, FLANGE (6X70)

96001-06070-07

$2.15
