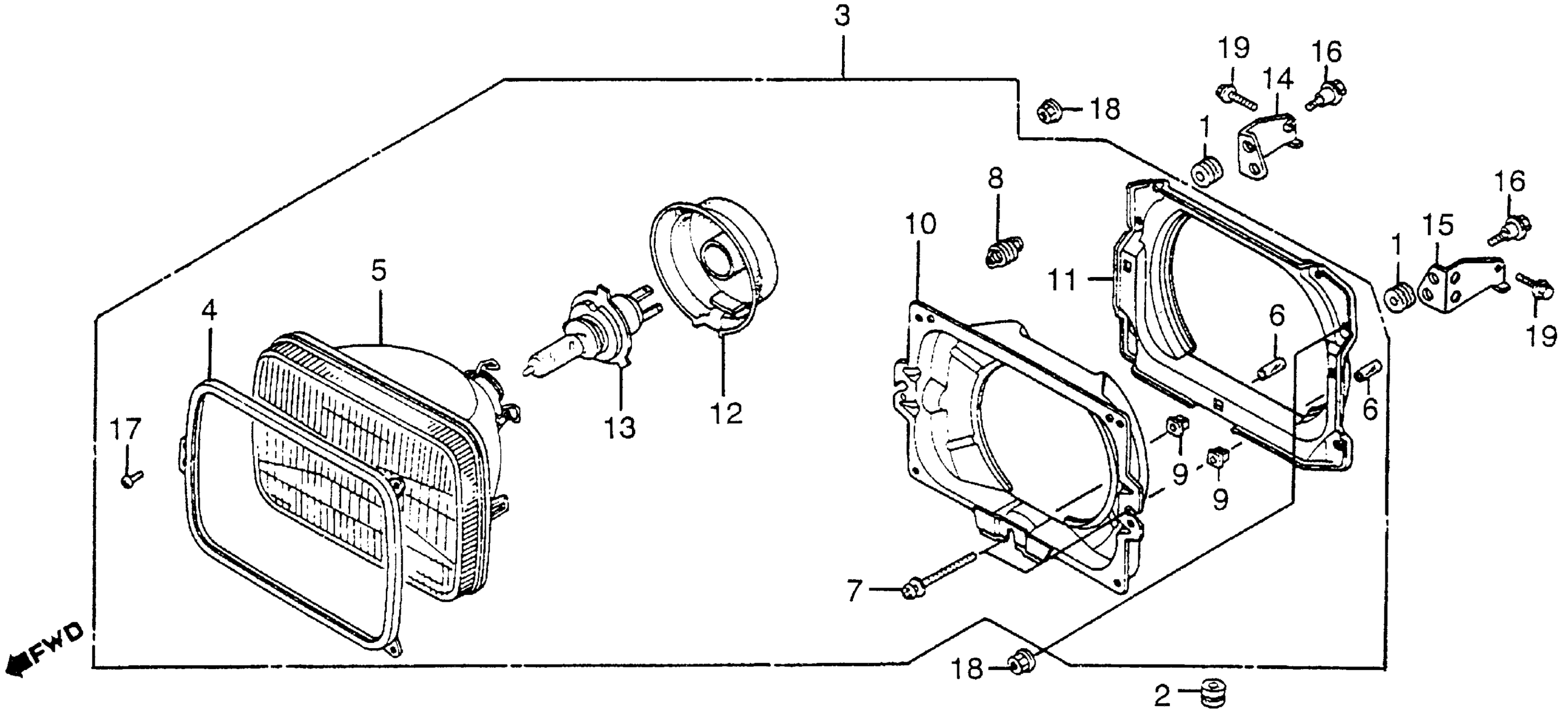

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 HEADLIGHT Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

2

GROMMET, RADIATOR

19053-MB2-000

$4.52

3

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-MB6-671

Unavailable

4

RING, RETAINING (STANLEY) (NOT AVAILABLE)

33102-692-671

Unavailable

5

HEADLIGHT UNIT (NOT AVAILABLE)

33120-MB0-771

Unavailable

6

TUBE, SCREW (NOT AVAILABLE)

33136-MB2-000

Unavailable

7

SCREW, ADJUSTING (STANLEY)

33143-692-672

Unavailable

8

SPRING, ADJUSTER (STANLEY)

33144-692-671

Unavailable

9

NUT, NYLON CAP

33145-657-671

Unavailable

10

RING, MOUNTING (1) (NOT AVAILABLE)

33150-MB6-671

Unavailable

11

RING, SETTING (2) (NOT AVAILABLE)

33154-MB6-671

Unavailable

12

COVER, RUBBER

33112-MM9-013

$10.09

12

COVER, RUBBER This part replaces 33180-MC5-003.

33112-MM9-013

$10.09

13

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

13

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

14

STAY, R. HEADLIGHT (NOT AVAILABLE)

61501-MB6-000

Unavailable

15

STAY, L. HEADLIGHT (NOT AVAILABLE)

61502-MB6-000

Unavailable

16

BOLT, FLANGE (6X24) (NOT AVAILABLE)

90114-170-000

Unavailable

17

SCREW, TAPPING (4X8) This part replaces 90162-692-003.

90162-692-013

Unavailable

17

SCREW, TAPPING (4X8) (NOT AVAILABLE)

90162-692-013

Unavailable

18

NUT, FLANGE (6MM)

94050-06000

$1.49

19

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

19

BOLT, FLANGE (6X10)

95701-06010-08

$1.61
