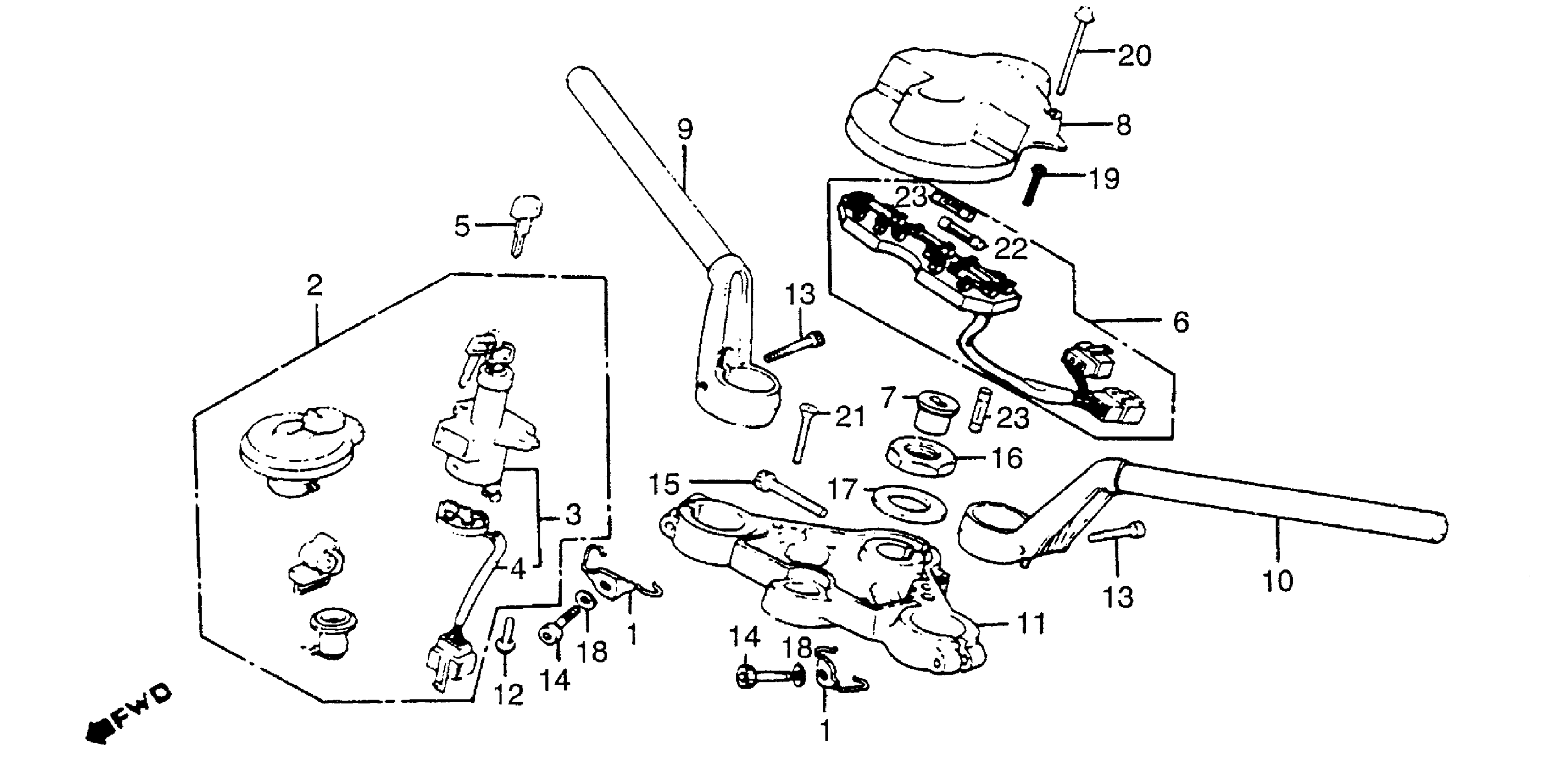

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 HANDLEBAR + TOP BRIDGE Diagram

GUIDE, CABLE (NOT AVAILABLE)

17908-MB6-000

Unavailable

LOCK SET (NOT AVAILABLE) This part replaces 35010-MB6-000.

35010-MB6-010

Unavailable

LOCK SET (NOT AVAILABLE)

35010-MB6-010

Unavailable

SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE) This part replaces 35100-MB6-007.

35100-MF2-672

Unavailable

SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE) This part replaces 35100-MB6-017.

35100-MF2-672

Unavailable

BASE, CONTACT This part replaces 35101-MB6-007.

35101-MF2-671

Unavailable

KEY, BLANK (TYPE 1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$10.10

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$10.10

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

PLATE ASSY., FUSE (NOT AVAILABLE)

38200-MB6-005

Unavailable

CASE, FUSE (NOT AVAILABLE)

38205-MB6-003

Unavailable

COVER, FUSE PLATE (NOT AVAILABLE)

38210-MB2-000

Unavailable

HANDLEBAR, R. (NOT AVAILABLE)

53100-MB6-000

Unavailable

HANDLEBAR, L. (NOT AVAILABLE)

53150-MB6-000

Unavailable

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-MB6-000

Unavailable

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

BOLT, FLANGE (8X19) This part replaces 90105-MA6-000.

90104-MJ1-000

$6.31

BOLT, SOCKET (8X34)

90112-MB0-000

Unavailable

BOLT, SOCKET (7X46)

90151-MB2-000

Unavailable

BOLT, SOCKET (8X55)

90166-MB2-000

$8.38

NUT, STEERING STEM

90304-425-000

$9.69

WASHER, STEERING STEM

90503-425-000

$4.21

WASHER, PLAIN (7MM)

90511-MB2-000

Unavailable

SCREW, PAN (5X16)

93500-05016-0G

$1.49

SCREW, PAN (5X35)

93500-05035-0G

$1.49

SCREW, FLAT (6X35) (NOT AVAILABLE)

93600-06035-0G

Unavailable

FUSE A (10A)

98200-11000

$1.80

FUSE (15A)

98200-11500

$1.49
