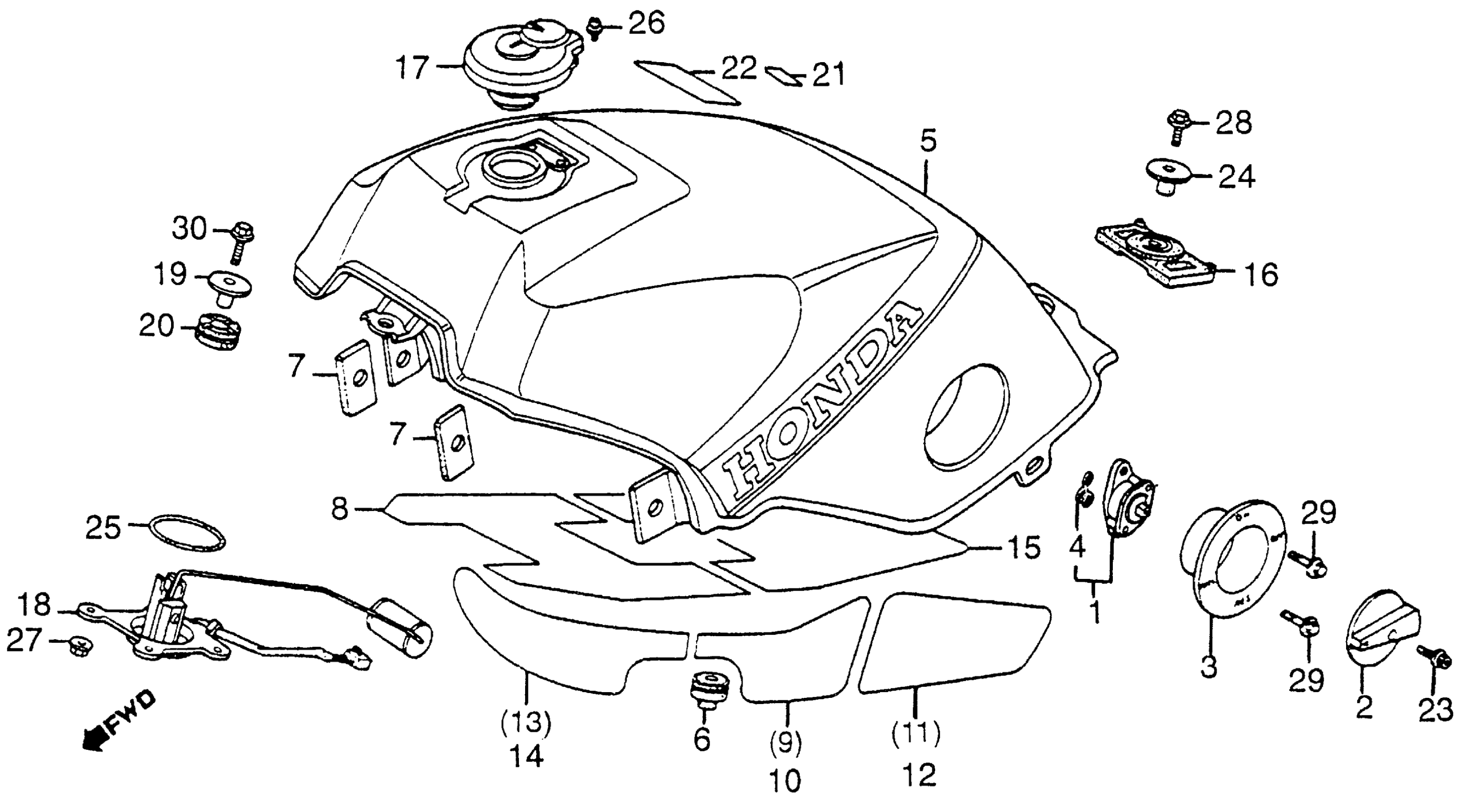

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-MB2-013

$60.22

2

LEVER, PETCOCK This part replaces 16952-MB2-000.

16952-MJ4-871

Unavailable

2

LEVER, PETCOCK This part replaces 16952-MJ4-870.

16952-MJ4-871

Unavailable

2

LEVER, PETCOCK

16952-MJ4-871

Unavailable

3

BASE, PETCOCK This part replaces 16953-MB2-000.

16953-ML7-010

Unavailable

3

BASE, PETCOCK This part replaces 16953-MB2-010.

16953-ML7-010

Unavailable

3

BASE, PETCOCK

16953-ML7-010

Unavailable

3

BASE, PETCOCK This part replaces 16953-ML7-700.

16953-ML7-010

Unavailable

4

GASKET

16958-MB4-005

$5.44

5

TANK SET, FUEL *NH138* (SHASTA WHITE) (NOT AVAILABLE)

175A1-MB6-670ZA

Unavailable

6

RUBBER, FUEL TANK SIDE (NOT AVAILABLE)

17516-MB6-000

Unavailable

7

RUBBER, FR. COWL SIDE (NOT AVAILABLE)

17517-MB6-000

Unavailable

16

RUBBER, RR. FUEL TANK

17613-MA5-771

$10.12

17

CAP, FUEL FILLER This part replaces 17620-MB2-000.

17620-MB2-023

Unavailable

17

CAP, FUEL FILLER This part replaces 17620-MB2-013.

17620-MB2-023

Unavailable

17

CAP, FUEL FILLER (NOT AVAILABLE)

17620-MB2-023

Unavailable

18

FUEL UNIT (NOT AVAILABLE) This part replaces 37800-MB6-000.

37800-MB6-010

Unavailable

18

FUEL UNIT (NOT AVAILABLE)

37800-MB6-010

Unavailable

19

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

19

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

19

COLLAR, RR. FENDER (NOT AVAILABLE)

61105-428-000

Unavailable

20

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.72

21

LABEL, FR. FORK CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87517-MB0-770ZA

Unavailable

22

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-181-760.

87560-181-760ZE

$3.95

22

LABEL, DRIVE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87560-181-760ZD

Unavailable

22

MARK, DRIVE CAUTION (TYPEB)

87560-181-760ZE

$3.95

23

BOLT, SOCKET (4X13) This part replaces 90102-MB2-000.

90102-MB2-505

Unavailable

23

BOLT, SOCKET (4X13) (NOT AVAILABLE)

90102-MB2-505

Unavailable

24

COLLAR, FUEL TANK SETTING

90324-MB6-000

Unavailable

25

O-RING (39.5X5)

91305-MC7-000

$3.31

26

SCREW-WASHER (4X6)

93892-04006-00

$1.49

27

NUT, FLANGE (6MM)

94050-06080

$1.49

28

BOLT, FLANGE (8X25) This part replaces 95700-08025-08.

95701-08025-08

$1.49

28

BOLT, FLANGE (8X25)

95701-08025-08

$1.49

29

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

29

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

30

BOLT, FLANGE (6X20) This part replaces 96000-06020-02.

96001-06020-02

$1.49

30

BOLT, FLANGE (6X20)

96001-06020-02

$1.49
