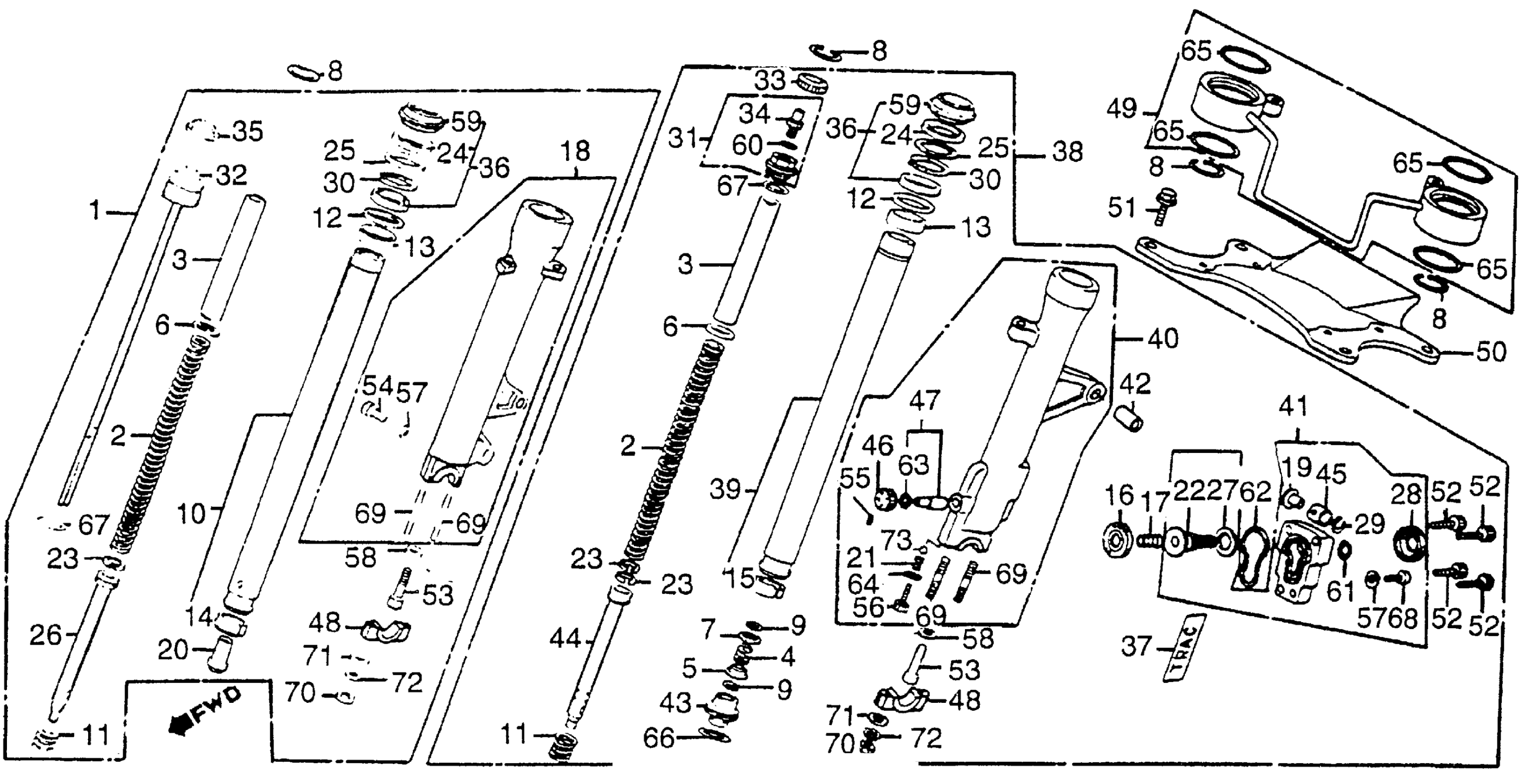

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (NOT AVAILABLE) This part replaces 51400-MB6-611.

51400-MB6-612

Unavailable

1

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-MB6-612

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-MB6-611

Unavailable

3

COLLAR, SPRING (NOT AVAILABLE)

51402-MB6-611

Unavailable

4

SPRING, OIL LOCK

51402-MB7-611

$5.04

5

VALVE, OIL LOCK

51403-MB7-611

$9.88

6

PLATE, SPRING JOINT

51404-MB4-003

$4.60

7

SEAT, SPRING

51404-MB7-611

$4.80

8

RING, STOPPER

51405-MB4-003

$5.66

9

RING, STOPPER

51405-MB7-611

$2.65

10

PIPE, R. FR. FORK (NOT AVAILABLE)

51410-MB6-611

Unavailable

11

SPRING, REBOUND (NOT AVAILABLE)

51411-MG9-671

Unavailable

12

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.66

12

RING, BACK-UP (SHOWA) This part replaces 51412-MB4-305.

51412-MB4-003

$8.66

13

BUSH, GUIDE (SHOWA) This part replaces 51414-MB4-003.

51414-KCR-003

$12.58

14

BUSH, SLIDER (A)

51415-MB4-003

Unavailable

15

BUSH B, SLIDER (B-TYPE)

51419-MB4-003

$18.08

16

GASKET This part replaces 51417-MJ0-003.

51417-MJ0-013

Unavailable

16

GASKET (NOT AVAILABLE)

51417-MJ0-013

Unavailable

17

SPRING, PISTON

51418-MJ0-003

Unavailable

18

CASE, R. (LOWER) (NOT AVAILABLE)

51421-MB6-611

Unavailable

19

COLLAR, PISTON

51423-MJ0-003

$10.56

20

PIECE, OIL LOCK (NOT AVAILABLE)

51432-MB6-611

Unavailable

21

SPRING, CLICK (NOT AVAILABLE)

51434-MC7-003

Unavailable

22

PISTON (NOT AVAILABLE)

51436-MJ0-003

Unavailable

23

RING, PISTON

51437-MB4-003

$8.60

24

HOLDER, GREASE (NOT AVAILABLE)

51438-MB4-003

Unavailable

25

WASHER, HOLDER (NOT AVAILABLE)

51439-MB4-003

Unavailable

26

PIPE, SEAT (NOT AVAILABLE)

51440-MB6-611

Unavailable

27

RUBBER, STOPPER

51441-MJ0-003

Unavailable

28

BOOT, PISTON CASE

51442-MJ0-003

$8.73

29

RING, STOPPER

51445-MJ0-003

$2.36

30

CIRCLIP (INNER)

51447-MB4-003

$4.33

31

BOLT, L. FR. FORK This part replaces 51450-MB6-611.

51450-MB6-771

Unavailable

32

BOLT, FR. FORK (NOT AVAILABLE)

51454-MB6-611

Unavailable

33

CAP, AIR VALVE

51456-MB2-003

Unavailable

34

VALVE, AIR

51456-469-013

$30.27

35

CAP, ADJUSTING PLATE (NOT AVAILABLE)

51458-MG5-611

Unavailable

36

SEAL SET, FR. FORK (SHOWA) This part replaces 51490-MB4-305.

51490-MN8-305

$31.62

36

SEAL SET, FR. FORK (SHOWA) This part replaces 51490-MB4-315.

51490-MN8-305

$31.62

36

SEAL SET, FR. FORK

51490-MN8-305

$31.62

37

MARK, FR. FORK

51496-MC7-670

$4.65

38

FORK ASSY., L. FR. (NOT AVAILABLE) This part replaces 51500-MB6-611.

51500-MB6-613

Unavailable

38

FORK ASSY., L. FR. (NOT AVAILABLE) This part replaces 51500-MB6-612.

51500-MB6-613

Unavailable

38

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-MB6-613

Unavailable

39

PIPE, L. FR. FORK (NOT AVAILABLE)

51510-MB6-611

Unavailable

40

CASE ASSY., L. (LOWER) (NOT AVAILABLE)

51521-MB6-611

Unavailable

41

CASE, PISTON (NOT AVAILABLE)

51530-MJ0-003

Unavailable

42

BUSH, PIVOT (NOT AVAILABLE)

51532-MB2-300

Unavailable

43

PIECE B, OIL LOCK (NOT AVAILABLE)

51532-MB4-003

Unavailable

44

PIPE, SEAT (NOT AVAILABLE)

51540-MB6-611

Unavailable

45

BUSH, RUBBER

51545-MJ0-003

$8.42

46

PLATE, ADJUSTER (NOT AVAILABLE)

51558-MJ0-003

Unavailable

47

ROD SET, ADJUSTER (NOT AVAILABLE)

51591-MJ0-305

Unavailable

48

HOLDER, AXLE (NOT AVAILABLE)

51634-MJ0-003

Unavailable

49

EQUALIZER, FR. FORK (NOT AVAILABLE)

53137-MB6-003

Unavailable

50

STABILIZER, FR. FORK (NOT AVAILABLE)

61102-MB6-000

Unavailable

51

BOLT, FLANGE (8X16)

90106-MB2-000

$3.77

52

BOLT, SOCKET (6MM) (NOT AVAILABLE)

90116-MJ0-003

Unavailable

53

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$4.77

53

BOLT, SOCKET (8X27)

90116-383-721

$4.77

54

BOLT, HEX. (6X17) (NOT AVAILABLE)

90125-MB2-003

Unavailable

55

SCREW, SOCKET (NOT AVAILABLE)

90150-MJ0-003

Unavailable

56

BOLT, SOCKET (NOT AVAILABLE)

90151-MJ0-003

Unavailable

57

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.25

58

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

59

DUST SEAL This part replaces 91254-MB4-003.

91254-MM8-003

$16.06

59

DUST SEAL

91254-MM8-003

$16.06

60

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.80

60

O-RING (5.8X1.9)

91305-323-000

$2.80

60

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.42

61

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.03

62

O-RING

91308-MJ0-003

$3.33

63

O-RING

91310-MJ0-003

$2.38

64

O-RING (NOT AVAILABLE)

91311-MJ0-003

Unavailable

65

O-RING (40.5X2)

91352-MB4-003

Unavailable

66

O-RING (37.5X2) (SHOWA) (NOT AVAILABLE)

91353-MB4-003

Unavailable

67

O-RING

91356-MB4-003

$3.30

68

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.25

68

BOLT, HEX. (6X8)

92101-06008-0A

$1.25

69

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.45

69

BOLT, STUD (8X50)

92900-08028-3B

$1.45

70

NUT, HEX. (8MM)

94030-08070

$0.43

71

WASHER, PLAIN (8MM)

94101-08700

$0.90

72

WASHER, SPRING (8MM) (NOT AVAILABLE)

94111-08700

Unavailable

73

BALL, STEEL (#5) (5/32)

96211-05000

$0.97
