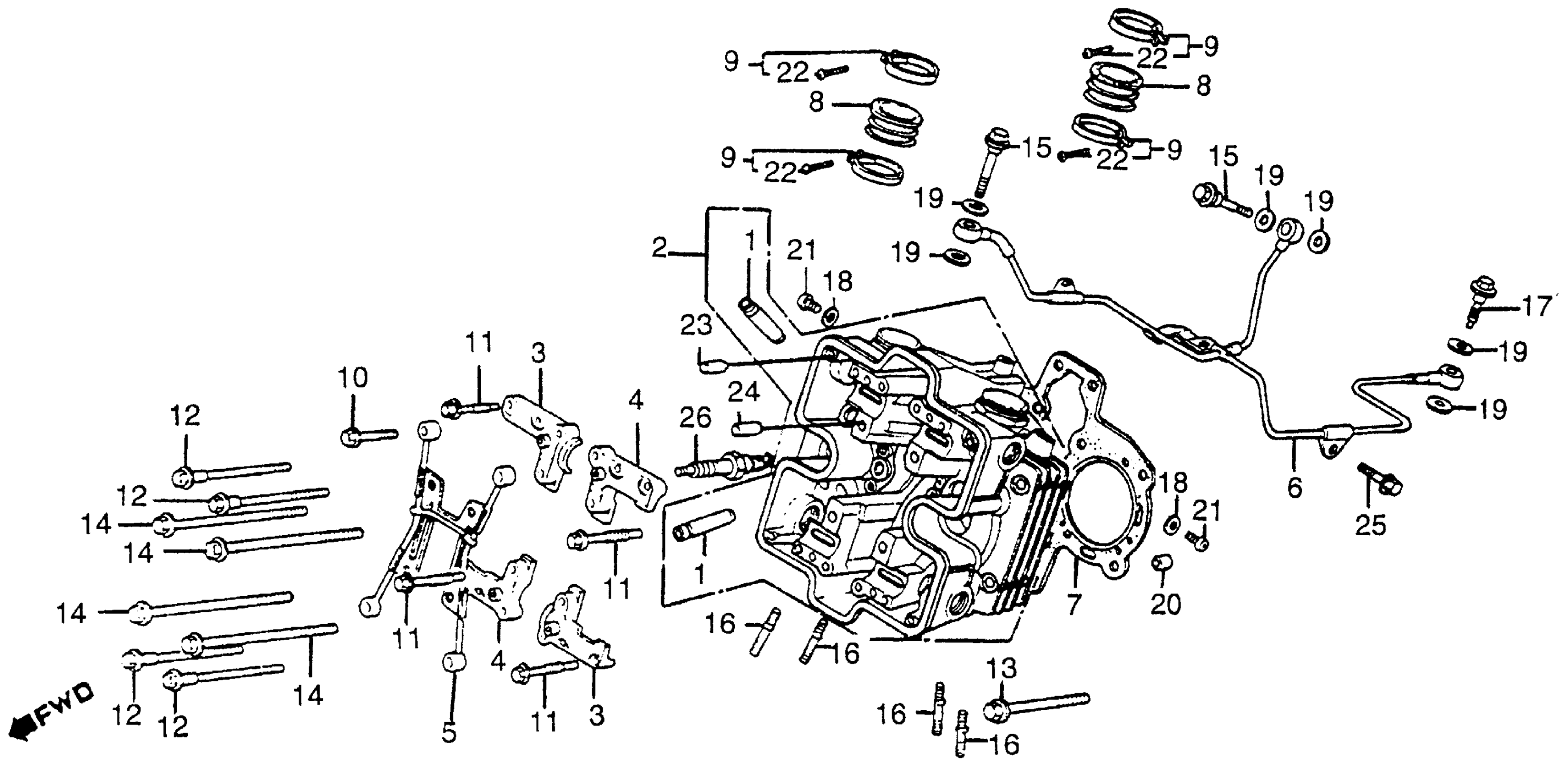

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 FRONT CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE (OS) This part replaces 12204-MB0-405.

12204-MS2-305

Unavailable

1

GUIDE, VALVE (OVER SIZE)

12204-MS2-305

Unavailable

2

CYLINDER HEAD, FR. (NOT AVAILABLE) | Use up to Engine SN 2009920 This part replaces 12210-MB6-000.

12210-MB6-030

Unavailable

2

CYLINDER HEAD, FR. (NOT AVAILABLE) This part replaces 12210-MB6-010.

12210-MB6-030

Unavailable

2

CYLINDER HEAD, FR. (NOT AVAILABLE) This part replaces 12210-MB6-020.

12210-MB6-030

Unavailable

2

CYLINDER HEAD, FR. (NOT AVAILABLE)

12210-MB6-030

Unavailable

3

HOLDER A, CAMSHAFT This part replaces 12211-MB6-000.

12211-MB6-020

Unavailable

3

HOLDER A, CAMSHAFT This part replaces 12211-MB6-010.

12211-MB6-020

Unavailable

3

HOLDER A, CAMSHAFT

12211-MB6-020

Unavailable

4

HOLDER B, CAMSHAFT (NOT AVAILABLE) This part replaces 12212-MB6-000.

12212-MB6-020

Unavailable

4

HOLDER B, CAMSHAFT (NOT AVAILABLE) This part replaces 12212-MB6-010.

12212-MB6-020

Unavailable

4

HOLDER B, CAMSHAFT (NOT AVAILABLE)

12212-MB6-020

Unavailable

5

PIPE A, OIL PASSAGE (NOT AVAILABLE) This part replaces 12230-MB0-000.

12230-MB0-010

Unavailable

5

PIPE A, OIL PASSAGE (NOT AVAILABLE)

12230-MB0-010

Unavailable

6

PIPE B, OIL PASSAGE (NOT AVAILABLE)

12240-MB6-000

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-MB6-000.

12251-MB6-306

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-MB6-010.

12251-MB6-306

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-MB6-020.

12251-MB6-306

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-MB6-030.

12251-MB6-306

Unavailable

8

INSULATOR, CARBURETOR This part replaces 16212-MB6-000.

16212-MB6-010

$14.02

8

INSULATOR, CARBURETOR

16212-MB6-010

$14.02

9

BAND, INSULATOR This part replaces 16219-MB0-770.

16223-KS5-000

$14.20

9

BAND, INSULATOR

16223-KS5-000

$14.20

10

BOLT, FLANGE (6X52) This part replaces 90001-MB0-000.

90009-HA0-000

$4.24

10

BOLT, FLANGE (6X52)

90009-HA0-000

$4.24

11

BOLT, FLANGE (6X58) (NOT AVAILABLE)

90003-MB6-000

Unavailable

12

BOLT, UBS (8X151) (NOT AVAILABLE)

90006-MB0-010

Unavailable

13

BOLT, UBS (9X93) This part replaces 90011-MB0-770.

90011-MB0-000

$10.11

14

BOLT, UBS (9X175) (NOT AVAILABLE)

90012-MB6-003

Unavailable

15

BOLT, OIL (NOT AVAILABLE)

90025-MB0-771

Unavailable

16

BOLT, STUD (7-6X47)

90035-MB6-000

Unavailable

17

BOLT, OIL CONTROL

90045-MB2-000

Unavailable

18

WASHER, SEALING (5MM)

90452-323-000

$1.59

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

PIN, DOWEL (12X24) (NOT AVAILABLE)

91102-MB6-000

Unavailable

21

SCREW, PAN (5X8)

93500-05008-0G

$1.49

22

SCREW, PAN (5X25)

93500-05025-0G

$1.49

23

PIN, DOWEL (8X14)

94301-08140

$2.25

24

PIN, DOWEL (12X20)

94301-12200

$2.29

25

BOLT, FLANGE (6X14) This part replaces 96000-06014-07.

96001-06014-07

$1.49

25

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

26

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

26

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

26

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

26

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

26

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

26

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
