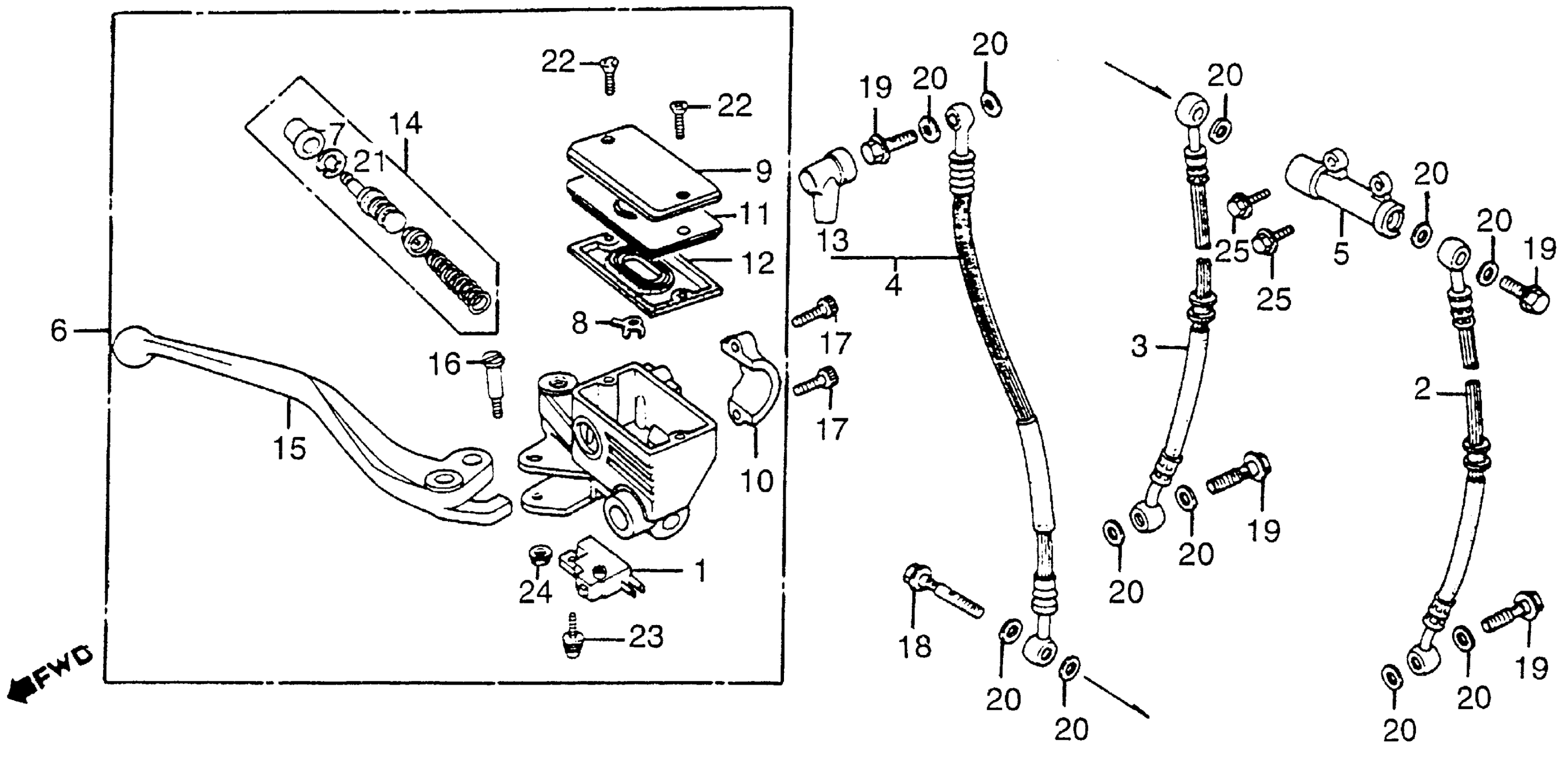

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 FRONT BRAKE MASTER CYL. Diagram

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

HOSE, L. FR. BRAKE (NOT AVAILABLE)

45124-MB6-003

Unavailable

HOSE, R. FR. BRAKE (NOT AVAILABLE)

45125-MB6-003

Unavailable

HOSE B, FR. BRAKE This part replaces 45126-MB6-671.

45126-MB6-631

Unavailable

JOINT (TWO-WAY) (NISSIN) (NOT AVAILABLE)

45127-MA1-003

Unavailable

CYLINDER SUB-ASSY. This part replaces 45500-MB4-673.

45510-MB4-405

Unavailable

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NOT AVAILABLE)

45540-MB4-671

Unavailable

HOLDER, MASTER CYLINDER (NOT AVAILABLE)

45517-MB0-006

Unavailable

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

DIAPHRAGM

45520-MA5-672

$18.13

BOOT, MASTER CYLINDER

45522-422-000

$8.68

MASTER CYLINDER SET

45530-MA5-671

$71.69

LEVER, R. HANDLE This part replaces 53175-KE8-006.

53175-MK7-671

$17.88

LEVER, R. HANDLE This part replaces 53175-MJ6-006.

53175-MK7-671

$17.88

LEVER, R. HANDLE

53175-MK7-671

$17.88

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

BOLT, OIL (10X34)

90145-MB0-010

Unavailable

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

BOLT, OIL (10X22) (SAGA)

90145-KM3-751

$11.02

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
