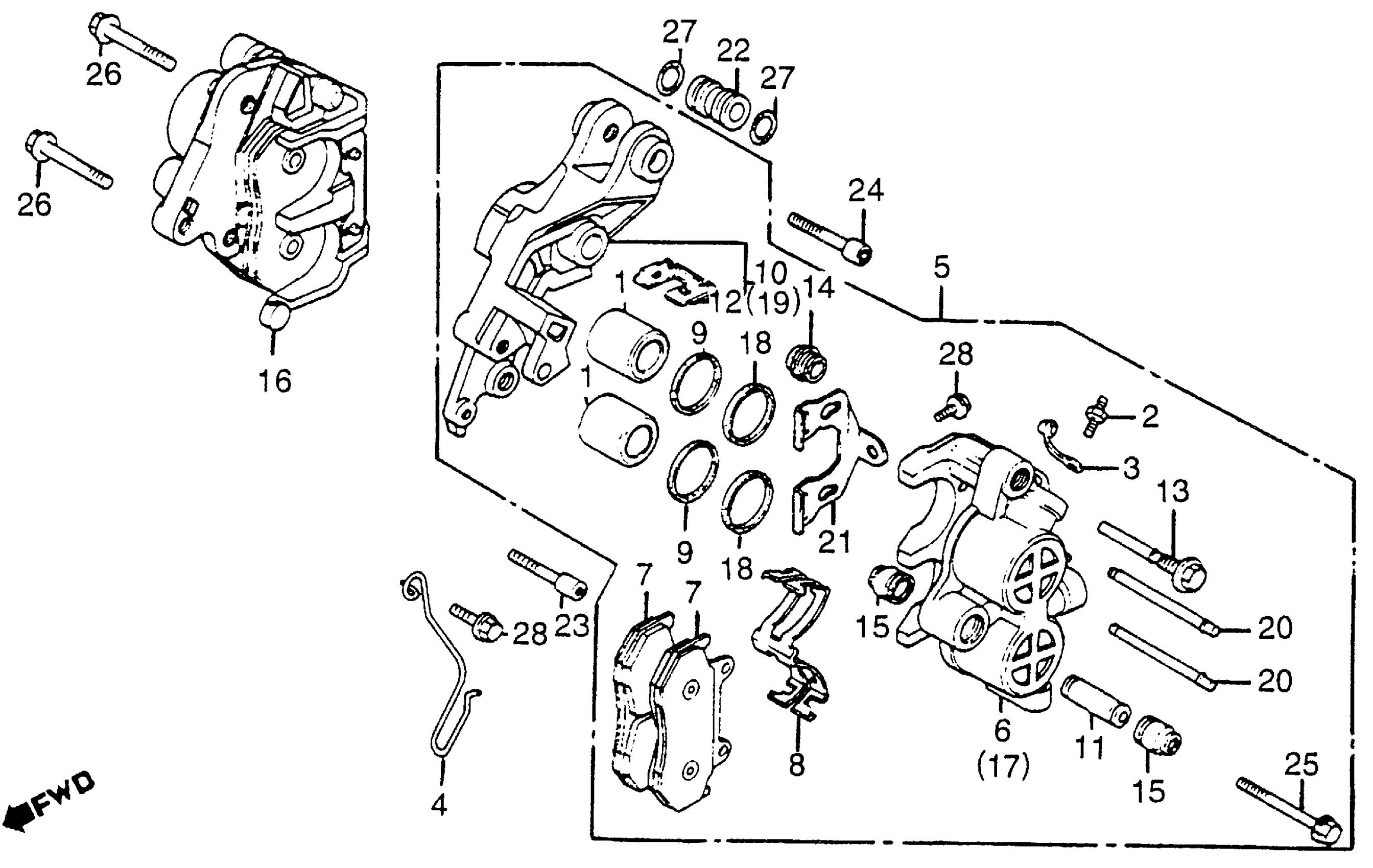

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, FR.

06455-MJ1-405

Unavailable

NI

PAD SET, FR. This part replaces 451A0-MJ1-670.

06455-MJ1-405

Unavailable

1

PISTON

43107-MA7-006

$41.82

2

SCREW, BLEEDER (NISSIN)

43352-568-003

$9.83

3

CAP, BLEEDER

43353-461-771

$4.83

4

CLAMP, SPEEDOMETER CABLE

44832-ME2-000

$8.94

5

CALIPER ASSY., L. FR. This part replaces 45100-MJ0-017.

45100-MJ0-027

Unavailable

6

CALIPER, L. FR. (NOT AVAILABLE)

45101-MJ0-006

Unavailable

7

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MB1-701.

45105-MJ1-673

Unavailable

7

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MB1-702.

45105-MJ1-673

Unavailable

7

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MJ1-672.

45105-MJ1-673

Unavailable

7

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-MJ1-673

Unavailable

8

SPRING, PAD

45108-MA3-006

$5.99

9

DUST SEAL

45109-MA7-006

Unavailable

10

BRACKET, L. FR. (NOT AVAILABLE)

45110-MJ0-016

Unavailable

11

SLEEVE

45111-MA3-006

$12.28

12

RETAINER, BRACKET

45112-445-631

$8.29

13

BOLT, PIN

45131-MA3-006

$16.14

14

BOOT B

45133-MA3-006

$5.21

15

BOOT, PIN

45133-166-016

$3.43

16

CALIPER ASSY., R. FR. (NISSHIN) (NOT AVAILABLE) This part replaces 45200-MJ0-017.

45200-MJ0-027

Unavailable

16

CALIPER ASSY., R. FR. (NISSHIN) (NOT AVAILABLE)

45200-MJ0-027

Unavailable

17

BODY, R. FR. CALIPER (NOT AVAILABLE)

45201-MJ0-006

Unavailable

18

SEAL, PISTON

45209-MA7-006

$6.32

19

BRACKET, R. FR. (NOT AVAILABLE)

45210-MJ0-016

Unavailable

20

PIN, HANGER

45215-MA3-006

$11.79

21

PLATE

45217-MJ0-006

Unavailable

22

SLEEVE, FR. CALIPER BRACKET

51536-MB2-000

Unavailable

23

BOLT, SOCKET (6X25)

90105-MJ1-000

Unavailable

24

BOLT, SOCKET (10X40)

90131-MB2-000

Unavailable

25

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$5.80

25

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80

26

BOLT, FLANGE (10X40) This part replaces 90180-MB6-000.

96400-10040-07

Unavailable

26

BOLT, FLANGE (10X40)

96400-10040-07

Unavailable

27

O-RING (13.8X2.4) (NOK) This part replaces 91308-MC7-003.

91311-PH7-003

$2.23

27

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.23

28

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.50

28

BOLT, FLANGE (6X10)

95701-06010-07

$1.50
