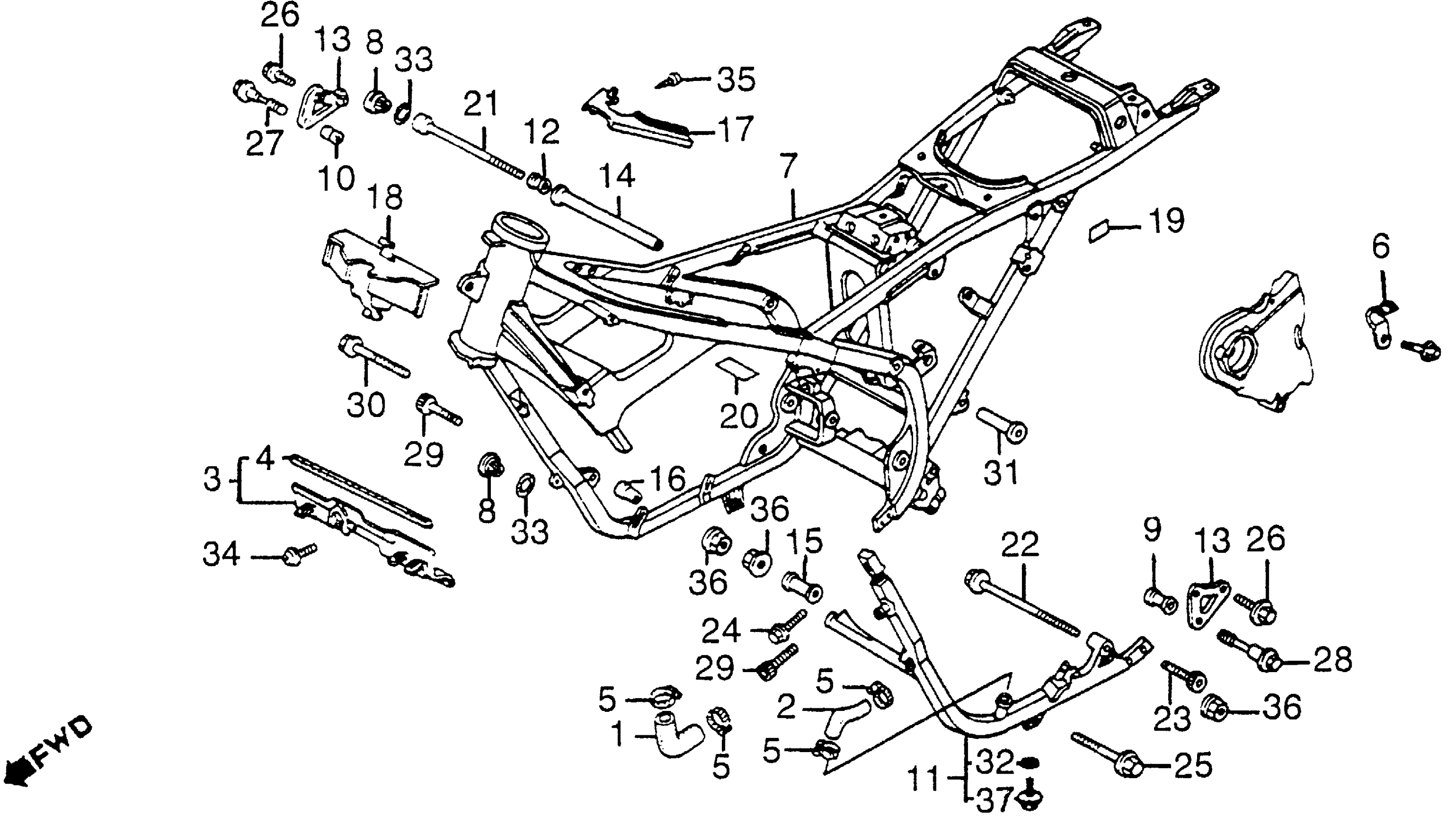

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 FRAME Diagram

#

Description
Price

1

HOSE, RADIATOR (D) (NOT AVAILABLE)

19118-MB6-000

Unavailable

2

HOSE, RADIATOR (E) (NOT AVAILABLE)

19120-MB6-000

Unavailable

3

PLATE, HEAT GUARD (NOT AVAILABLE)

19125-MB6-000

Unavailable

4

RUBBER, HEAT GUARD SEAL (NOT AVAILABLE)

19127-MB6-000

Unavailable

5

CLAMP, WATER HOSE

19516-MB6-000

$14.41

6

CLAMP, WIRE

32922-MB2-000

Unavailable

7

FRAME *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE) This part replaces 50100-MB6-000ZA.

50100-MB6-010ZA

Unavailable

7

FRAME *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

50100-MB6-010ZA

Unavailable

8

CAP, ENGINE HANGER (NOT AVAILABLE)

50200-MB6-000

Unavailable

9

COLLAR, L. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50208-MB2-000

Unavailable

10

COLLAR, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50209-MB6-000

Unavailable

11

SUB-FRAME *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE) This part replaces 50210-MB6-000ZA.

50210-MB6-010ZA

Unavailable

11

SUB-FRAME *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

50210-MB6-010ZA

Unavailable

12

COLLAR, R. ENGINE MOUNTING (NOT AVAILABLE)

50226-MB2-000

Unavailable

13

PLATE, ENGINE HANGER CENTER (NOT AVAILABLE)

50356-MB6-000

Unavailable

14

COLLAR, ENGINE HANGER (UPPER) (NOT AVAILABLE)

50361-MB2-000

Unavailable

15

COLLAR B, ENGINE HANGER (NOT AVAILABLE)

50362-MB0-000

Unavailable

16

COLLAR, R. FR. ENGINE HANGER (NOT AVAILABLE)

50362-MB2-000

Unavailable

17

COVER, HEAD PIPE GUSSET (NOT AVAILABLE)

61401-MB2-000

Unavailable

18

COVER, FR. (NOT AVAILABLE)

84610-MB6-000

Unavailable

19

LABEL, RR. RUBBER CAUTION (NOT AVAILABLE)

87518-MB0-770

Unavailable

20

LABEL, RR. DAMPING FORCE ADJUSTMENT (NOT AVAILABLE)

87519-MB6-300

Unavailable

21

BOLT, SOCKET (10X244) (NOT AVAILABLE)

90100-MB6-000

Unavailable

22

BOLT, FLANGE (10X300) (NOT AVAILABLE)

90101-MB2-000

Unavailable

23

BOLT, SOCKET (10X15) (NOT AVAILABLE)

90103-MB2-000

Unavailable

24

BOLT, SOCKET (10X23) (NOT AVAILABLE)

90104-MB2-000

Unavailable

25

BOLT, FLANGE (10X54) (NOT AVAILABLE)

90105-MB2-000

Unavailable

26

BOLT, FLANGE (8X16) This part replaces 90106-MB6-000.

90107-MN0-000

Unavailable

27

BOLT, FLANGE (8X42) (NOT AVAILABLE)

90107-MB6-000

Unavailable

28

BOLT, FLANGE (8X50)

90108-MB2-000

$5.23

28

BOLT, FLANGE (8X50) This part replaces 90108-MB6-000.

90108-MB2-000

$5.23

29

BOLT, SOCKET (10X20) (NOT AVAILABLE)

90109-MB2-000

Unavailable

30

BOLT, FLANGE (10X67) (NOT AVAILABLE)

90110-MB2-000

Unavailable

31

NUT, SPECIAL (10MM) (NOT AVAILABLE)

90303-MB2-000

Unavailable

32

WASHER, SEALING (6MM)

90441-028-010

$2.92

33

O-RING (13.8X2.5)

91303-MG7-003

$3.12

33

O-RING (13.8X2.5)

91303-377-000

$3.42

33

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

34

SCREW-WASHER (5X12) This part replaces 93891-05012-0A.

93891-05012-00

$1.49

34

SCREW-WASHER (5X12)

93891-05012-00

$1.49

35

SCREW, TAPPING (4X12)

93903-44380

$1.49

36

NUT, FLANGE (10MM)

94050-10000

$1.59

37

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

37

BOLT, FLANGE (6X10)

96001-06010-00

$1.55
