- VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753
CRANKSHAFT + PISTON

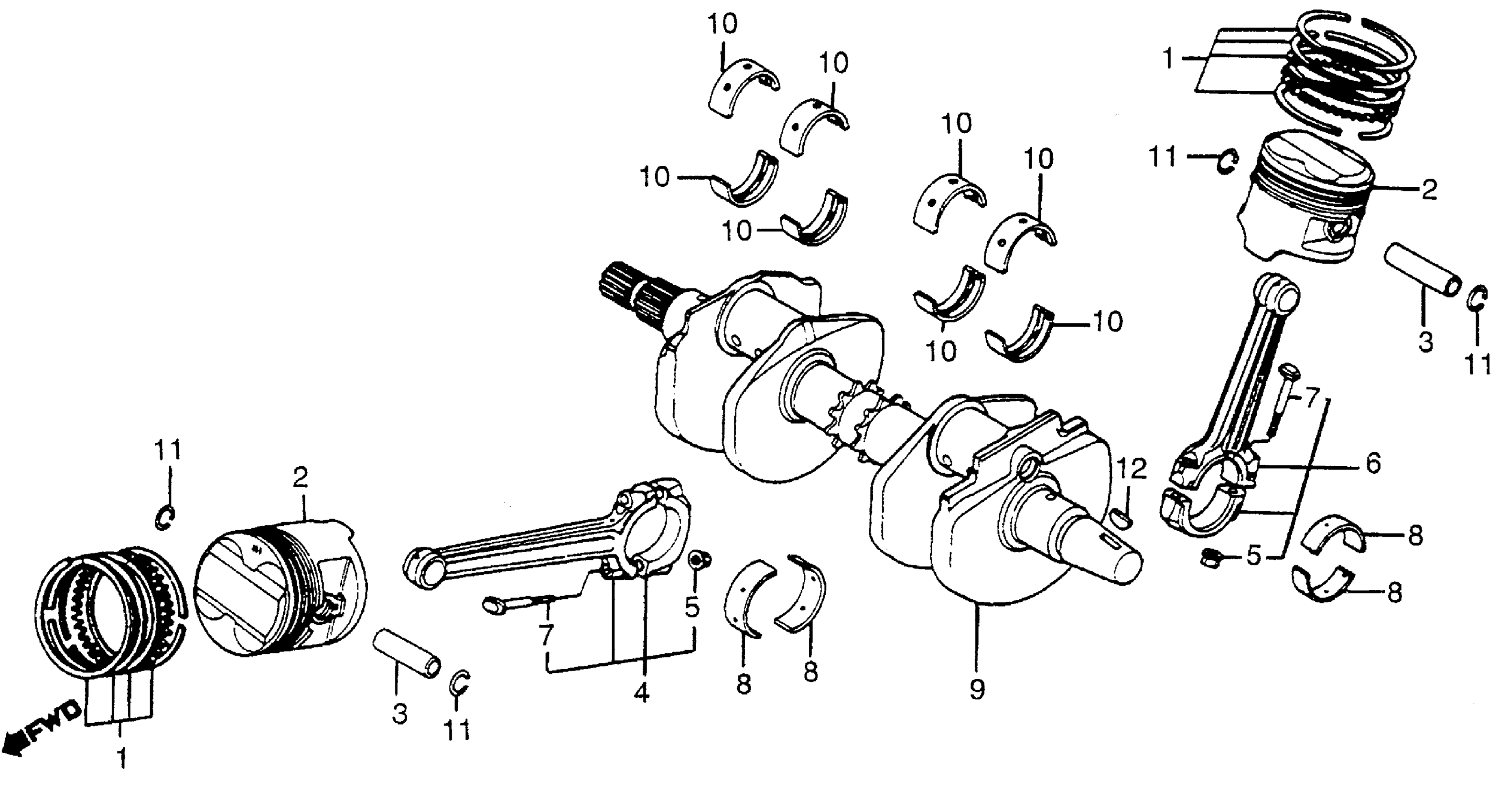

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 CRANKSHAFT + PISTON Diagram
#
1
RING SET, PISTON (STD) This part replaces 13011-MB6-305.
13011-MM5-640
Unavailable
1
RING SET, PISTON (STD) This part replaces 13011-MB6-315.
13011-MM5-640
Unavailable
1
RING SET, PISTON (STD)
13011-MM5-640
Unavailable
1
RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13012-MB6-305.
13012-MM5-640
Unavailable
1
RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13012-MB6-315.
13012-MM5-640
Unavailable
1
RING SET, PISTON (0.25) (RIKEN) | (Optional).
13012-MM5-640
Unavailable
1
RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13013-MB6-305.
13013-MM5-640
Unavailable
1
RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13013-MB6-315.
13013-MM5-640
Unavailable
1
RING SET, PISTON (OVER SIZE) (0.50) | (Optional).
13013-MM5-640
Unavailable
2
PISTON (STD) (NOT AVAILABLE)
13101-MB6-000
Unavailable
2
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional).
13102-MB6-305
Unavailable
2
PISTON (OVER SIZE) (0.50) | (Optional).
13103-MB6-305
Unavailable
4
ROD, CONNECTING | Use up to Engine SN 2002639 This part replaces 13201-MB6-000.
13203-MB6-405
Unavailable
4
ROD, CONNECTING This part replaces 13201-MB6-010.
13203-MB6-405
Unavailable
4
ROD, CONNECTING This part replaces 13202-MB6-000.
13203-MB6-405
Unavailable
4
ROD ASSY. B, FR. CONNECTING
13202-MB6-010
Unavailable
4
ROD, CONNECTING This part replaces 13203-MB6-000.
13203-MB6-405
Unavailable
4
ROD, CONNECTING This part replaces 13203-MB6-010.
13203-MB6-405
Unavailable
4
ROD, CONNECTING This part replaces 13203-MB6-680.
13203-MB6-405
Unavailable
4
ROD ASSY. D, FR. CONNECTING (NOT AVAILABLE) | Use up to Engine SN 2002639 This part replaces 13204-MB6-000.
13204-MB6-010
Unavailable
4
ROD ASSY. D, FR. CONNECTING (NOT AVAILABLE)
13204-MB6-010
Unavailable
4
ROD ASSY. D, FR. CONNECTING (NOT AVAILABLE) | Use up to Engine SN 2002639 This part replaces 13205-MB6-000.
13204-MB6-010
Unavailable
4
ROD ASSY. D, FR. CONNECTING (NOT AVAILABLE) This part replaces 13205-MB6-010.
13204-MB6-010
Unavailable
6
ROD, CONNECTING | Use up to Engine SN 2002676 This part replaces 13206-MB6-000.
13208-MB6-405
Unavailable
6
ROD, CONNECTING This part replaces 13206-MB6-010.
13208-MB6-405
Unavailable
6
ROD ASSY. B, RR. CONNECTING
13207-MB6-010
Unavailable
6
ROD, CONNECTING This part replaces 13208-MB6-000.
13208-MB6-405
Unavailable
6
ROD, CONNECTING This part replaces 13208-MB6-010.
13208-MB6-405
Unavailable
6
ROD, CONNECTING | Use up to Engine SN 2002676 This part replaces 13209-MB6-000.
13208-MB6-405
Unavailable
6
ROD, CONNECTING This part replaces 13209-MB6-010.
13208-MB6-405
Unavailable
6
ROD, CONNECTING | Use up to Engine SN 2002676 This part replaces 13210-MB6-000.
13208-MB6-405
Unavailable
6
ROD, CONNECTING This part replaces 13210-MB6-010.
13208-MB6-405
Unavailable
8
BEARING A, CONNECTING ROD This part replaces 13224-MB6-013.
13224-MJ4-010
Unavailable
8
BEARING A, CONNECTING ROD
13224-MJ4-010
Unavailable
8
BEARING B, CONNECTING ROD This part replaces 13225-MB6-013.
13225-MJ4-010
Unavailable
8
BEARING C, CONN ROD This part replaces 13226-MB6-013.
13226-MJ4-010
Unavailable
9
CRANKSHAFT (NOT AVAILABLE) This part replaces 13300-MB6-000.
13300-MB6-010
Unavailable
9
CRANKSHAFT (NOT AVAILABLE)
13300-MB6-010
Unavailable
10
BEARING A, CRANKSHAFT (BROWN) (NOT AVAILABLE)
13313-MB6-003
Unavailable
10
BEARING B, CRANKSHAFT (GREEN) (NOT AVAILABLE)
13314-MB6-003
Unavailable
10
BEARING C, CRANKSHAFT (YELLOW) (NOT AVAILABLE)
13315-MB6-003
Unavailable
