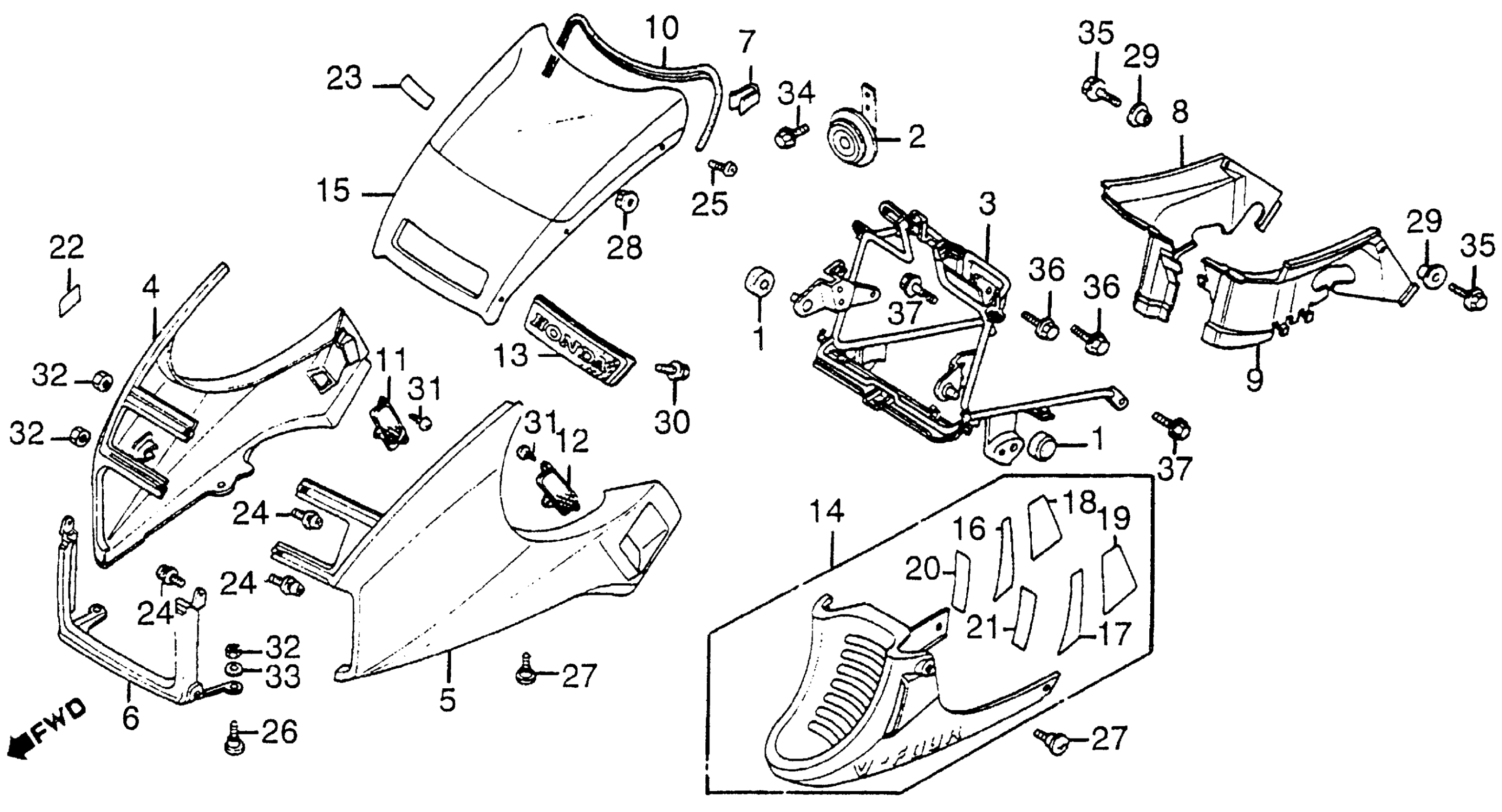

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 COWL Diagram

#

Description
Price

1

RUBBER, FR. FUEL TANK

17611-028-000

$4.07

2

HORN This part replaces 38110-MB6-671.

38110-ML8-711

Unavailable

3

STAY, FAIRING (NOT AVAILABLE)

61311-MB6-000

Unavailable

4

COWL SET, R. FR. SIDE *NH138* (SHASTA WHITE) (NOT AVAILABLE) This part replaces 641A0-MB6-670ZA.

641A0-MB6-671ZA

Unavailable

4

COWL SET, R. FR. SIDE *NH138* (SHASTA WHITE) (NOT AVAILABLE)

641A0-MB6-671ZA

Unavailable

5

COWL SET, L. FR. SIDE *NH138* (SHASTA WHITE) (NOT AVAILABLE) This part replaces 641A1-MB6-670ZA.

641A1-MB6-671ZA

Unavailable

5

COWL SET, L. FR. SIDE *NH138* (SHASTA WHITE) (NOT AVAILABLE)

641A1-MB6-671ZA

Unavailable

6

COWL SET, FR. CENTER *NH138* (TYPE1) (SHASTA WHITE) (NOT AVAILABLE)

641A5-MB6-000ZA

Unavailable

7

CLIP, SCREEN MOLDING

64102-MA3-720

$4.00

8

COWL, R. (INNER) (NOT AVAILABLE) This part replaces 64106-MB6-000.

64106-MB6-630

Unavailable

8

COWL, R. (INNER) (NOT AVAILABLE)

64106-MB6-630

Unavailable

9

COWL, L. (INNER) (NOT AVAILABLE) This part replaces 64107-MB6-000.

64107-MB6-630

Unavailable

9

COWL, L. (INNER) (NOT AVAILABLE)

64107-MB6-630

Unavailable

10

MOLDING, WINDSCREEN (NOT AVAILABLE)

64108-MB6-000

Unavailable

11

COVER, R. SIDE DUCT (NOT AVAILABLE)

64109-MB6-000

Unavailable

12

COVER, L. SIDE DUCT (NOT AVAILABLE)

64114-MB6-000

Unavailable

13

COVER, DUCT (NOT AVAILABLE)

64116-MB6-000

Unavailable

14

COWL SET (LOWER) *NH138* (TYPE3) (SHASTA WHITE) (NOT AVAILABLE)

642A4-MB6-000ZC

Unavailable

15

WINDSCREEN SET This part replaces 64200-MB6-000.

64225-MB6-315

Unavailable

15

WINDSCREEN SET This part replaces 64200-MB6-010.

64225-MB6-315

Unavailable

16

HEAT GUARD A, R. COWL (LOWER) (NOT AVAILABLE)

64242-MB6-000

Unavailable

16

HEAT GUARD A, R. COWL (LOWER) (NOT AVAILABLE) This part replaces 64242-MB6-300.

64242-MB6-000

Unavailable

17

HEAT GUARD A, L. COWL (LOWER) (NOT AVAILABLE)

64243-MB6-000

Unavailable

17

HEAT GUARD A, L. COWL (LOWER) (NOT AVAILABLE) This part replaces 64243-MB6-300.

64243-MB6-000

Unavailable

18

HEAT GUARD B, R. COWL (LOWER) (NOT AVAILABLE) This part replaces 64246-MB6-000.

64246-MB6-300

Unavailable

18

HEAT GUARD B, R. COWL (LOWER) (NOT AVAILABLE)

64246-MB6-300

Unavailable

19

HEAT GUARD B, L. COWL (LOWER) (NOT AVAILABLE) This part replaces 64247-MB6-000.

64247-MB6-300

Unavailable

19

HEAT GUARD B, L. COWL (LOWER) (NOT AVAILABLE)

64247-MB6-300

Unavailable

20

GUARD C, R. COWL HEAT (LOWER) (NOT AVAILABLE)

64248-MB6-000

Unavailable

20

GUARD C, R. COWL HEAT (LOWER) (NOT AVAILABLE) This part replaces 64248-MB6-300.

64248-MB6-000

Unavailable

21

GUARD C, L. COWL HEAT (LOWER) (NOT AVAILABLE)

64249-MB6-300

Unavailable

22

LABEL, FAIRING MARK (NOT AVAILABLE)

87515-MB6-670

Unavailable

23

LABEL, WINDSCREEN CAUTION

87522-463-930

Unavailable

24

SCREW-WASHER (4X14) This part replaces 90102-MB6-000.

93893-04014-08

$1.49

24

SCREW-WASHER (4X14)

93893-04014-08

$1.49

25

SCREW, SCREEN SETTING

90107-KE8-700

Unavailable

26

SCREW, SPECIAL (4X11) (NOT AVAILABLE)

90112-MB6-000

Unavailable

27

SCREW, FAIRING SETTING

90112-MC7-000

$6.48

28

NUT-WASHER (4MM) (NOT AVAILABLE)

90202-KE8-700

Unavailable

29

WASHER B

90554-240-000

$1.73

30

SCREW, TAPPING (3X6)

93901-22020

$1.49

31

SCREW, TAPPING (4X8)

93903-34180

$1.49

32

NUT, HEX. (4MM)

94001-04080-0S

$1.49

33

WASHER, PLAIN (4MM)

94103-04800

$1.49

34

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

34

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

35

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

35

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

36

BOLT, FLANGE (8X16) This part replaces 95700-08016-07.

95701-08016-07

$1.80

36

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

37

BOLT, FLANGE (6X12) This part replaces 96000-06012-07.

96001-06012-07

$1.72

37

BOLT, FLANGE (6X12)

96001-06012-07

$1.72
