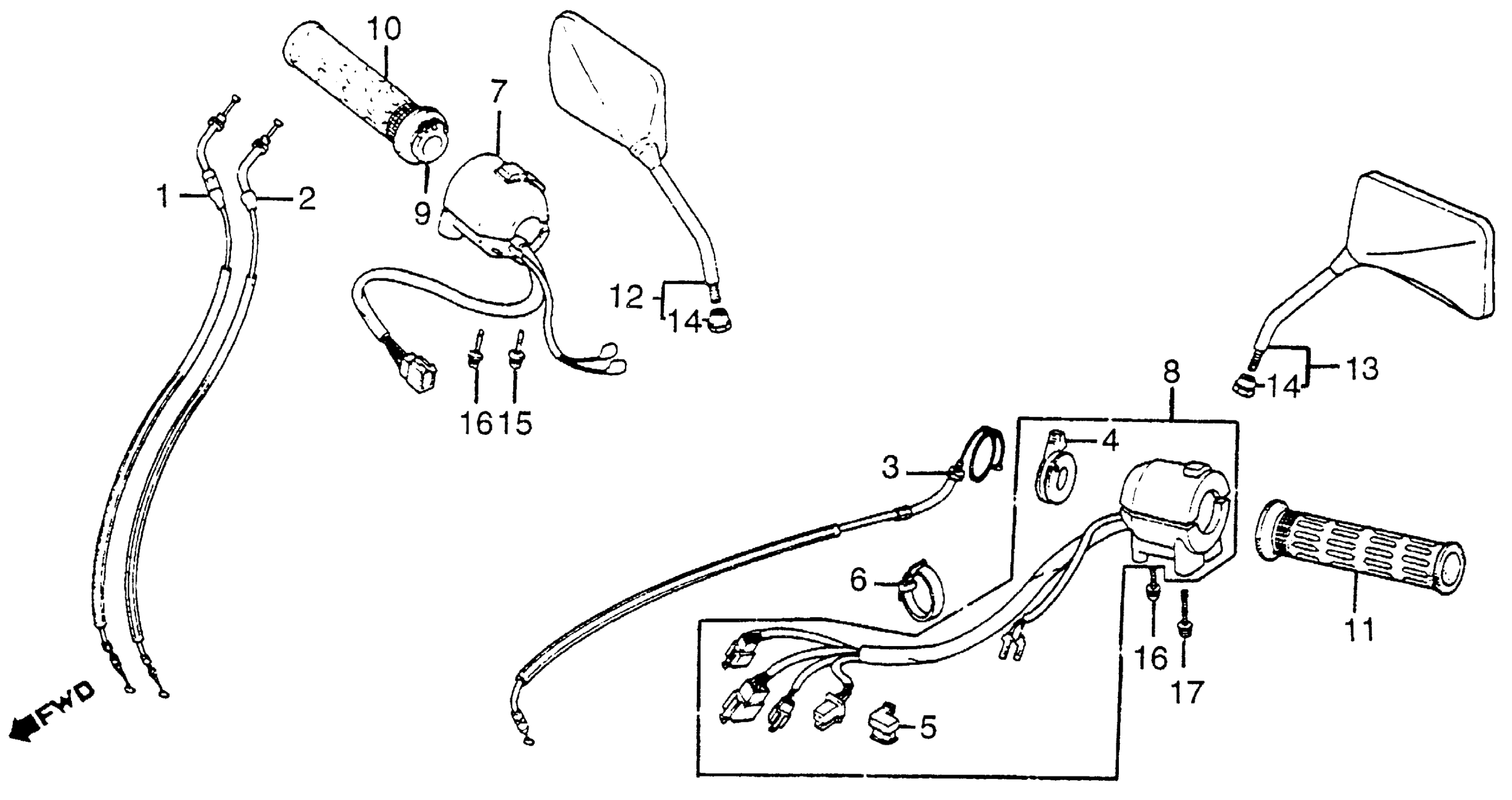

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 CONTROL SWITCHES + CLUTCH Diagram

CABLE A, THROTTLE (NOT AVAILABLE) This part replaces 17910-MB6-000.

17910-MB6-020

Unavailable

CABLE A, THROTTLE (NOT AVAILABLE) This part replaces 17910-MB6-010.

17910-MB6-020

Unavailable

CABLE A, THROTTLE (NOT AVAILABLE)

17910-MB6-020

Unavailable

CABLE B, THROTTLE (NOT AVAILABLE) This part replaces 17920-MB6-000.

17920-MB6-020

Unavailable

CABLE B, THROTTLE (NOT AVAILABLE) This part replaces 17920-MB6-010.

17920-MB6-020

Unavailable

CABLE B, THROTTLE (NOT AVAILABLE)

17920-MB6-020

Unavailable

CABLE, CHOKE (NOT AVAILABLE)

17950-MB6-000

Unavailable

LEVER, CHOKE This part replaces 17962-KE8-700.

17962-KE8-701

Unavailable

LEVER, CHOKE

17962-KE8-701

Unavailable

COVER, HEADLIGHT SOCKET

32106-KE1-600

Unavailable

BAND B1, WIRE

32161-404-000

$2.23

SWITCH ASSY., STARTER STOP (NOT AVAILABLE)

35130-MB6-670

Unavailable

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE) This part replaces 35200-MB6-670.

35200-MB6-771

Unavailable

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-MB6-771

Unavailable

PIPE, THROTTLE GRIP

53141-422-000

$21.74

GRIP, R. HANDLE

53165-422-000

$15.95

GRIP, L. HANDLE (COO) This part replaces 53166-422-000.

53166-422-305

$13.19

GRIP, L. HANDLE (COO)

53166-422-305

$13.19

MIRROR, R. (NOT AVAILABLE) This part replaces 88110-MB6-000.

88110-MB6-010

Unavailable

MIRROR, R. (NOT AVAILABLE)

88110-MB6-010

Unavailable

MIRROR, L. (NOT AVAILABLE) This part replaces 88120-MB6-000.

88120-MB6-010

Unavailable

MIRROR, L. (NOT AVAILABLE)

88120-MB6-010

Unavailable

NUT, LOCK

90314-MB6-000

$4.93

SCREW-WASHER (5X20)

93892-05020-07

$1.49

SCREW-WASHER (5X28)

93892-05028-07

$1.49

SCREW-WASHER (5X45)

93892-05045-07

$1.49
