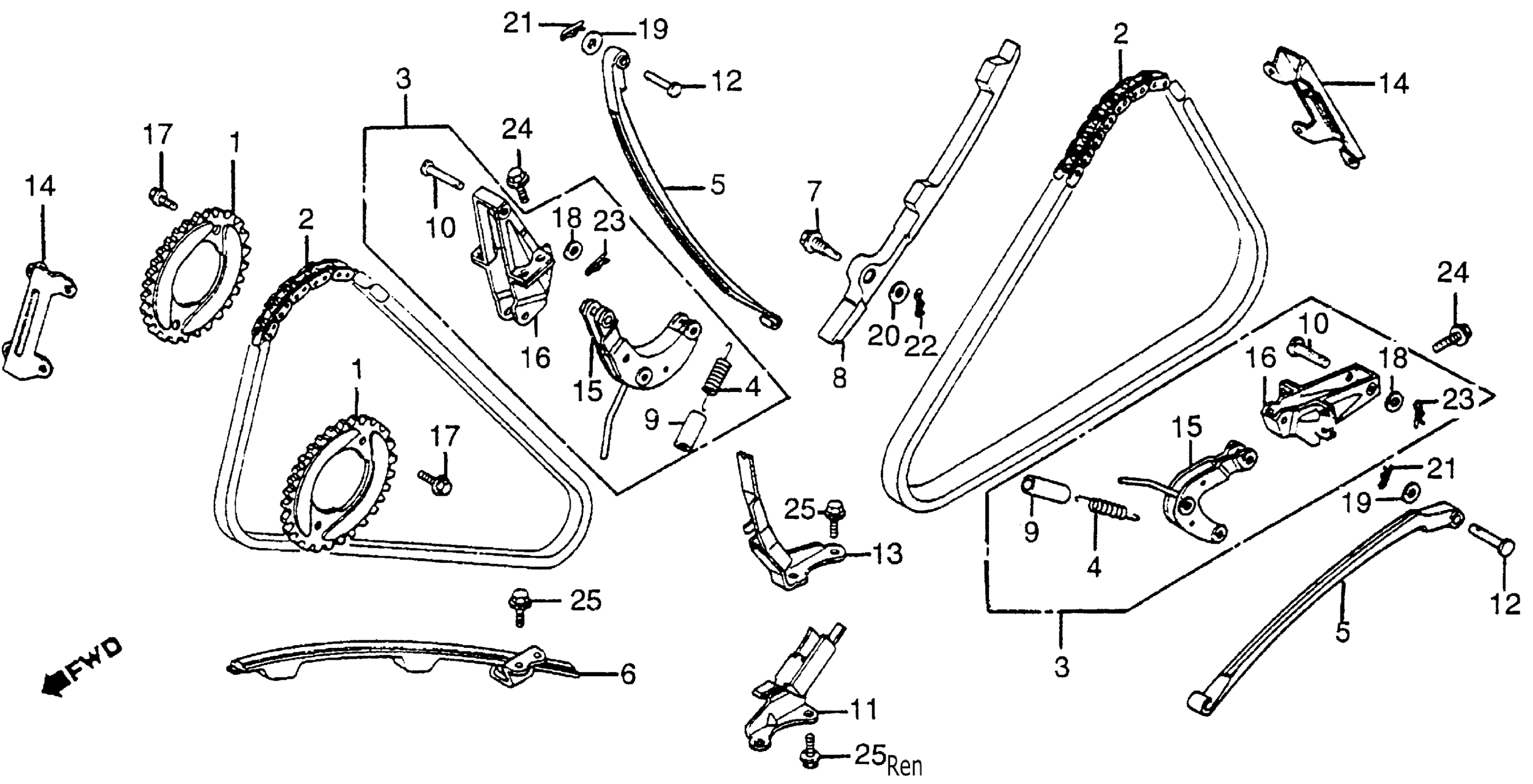

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (NOT AVAILABLE)

14321-MB6-000

Unavailable

2

CHAIN, CAM (NOT AVAILABLE)

14401-MB6-003

Unavailable

3

BRACKET ASSY., CAM CHAIN TENSIONER (NOT AVAILABLE) This part replaces 14510-MB6-000.

14510-MB6-020

Unavailable

3

BRACKET ASSY., CAM CHAIN TENSIONER (NOT AVAILABLE) This part replaces 14510-MB6-010.

14510-MB6-020

Unavailable

3

BRACKET ASSY., CAM CHAIN TENSIONER (NOT AVAILABLE)

14510-MB6-020

Unavailable

4

SPRING, TENSIONER (NOT AVAILABLE)

14514-MB6-003

Unavailable

5

TENSIONER, CAM CHAIN This part replaces 14515-MB6-000.

14515-MB6-305

Unavailable

5

TENSIONER, CAM CHAIN

14515-MB6-305

Unavailable

6

GUIDE A, CAM CHAIN (NOT AVAILABLE)

14520-MB6-000

Unavailable

7

BOLT, CAM CHAIN GUIDE A (NOT AVAILABLE)

14521-MB0-000

Unavailable

8

GUIDE A, CAM CHAIN (NOT AVAILABLE)

14522-MB6-300

Unavailable

9

TUBE, TENSIONER SPRING This part replaces 14525-MB0-010.

14525-MB0-020

Unavailable

10

PIN (8X43.2) (NOT AVAILABLE)

14526-MB0-000

Unavailable

11

HOLDER A, CAM CHAIN TENSIONER (NOT AVAILABLE)

14530-MB6-000

Unavailable

12

PIN A, ARM

14533-MB0-000

Unavailable

13

HOLDER B, CAM CHAIN TENSIONER (NOT AVAILABLE)

14540-MB6-000

Unavailable

14

GUIDE B, CAM CHAIN (NOT AVAILABLE)

14541-MB6-000

Unavailable

15

ARM This part replaces 14550-MB6-000.

14550-MB6-010

Unavailable

16

BRACKET, CAM CHAIN TENSIONER HOLDER This part replaces 14560-MB6-000.

14560-MB6-040

Unavailable

17

BOLT, FLANGE KNOCK (7X12)

90081-426-000

Unavailable

18

WASHER (8MM)

90405-463-000

$3.45

19

WASHER (6MM) | Use from Engine SN 2003277 This part replaces 90485-KE8-000.

90485-VM0-000

$2.92

19

WASHER (6MM) | Use from Engine SN 2003277

90485-VM0-000

$2.92

19

WASHER (6MM) | Use up to Engine SN 2003276

90485-286-000

$1.55

20

WASHER (7MM) (NOT AVAILABLE)

90486-MB0-000

Unavailable

21

PIN, SPECIAL LOCK (6MM) (NOT AVAILABLE)

90704-MB0-000

Unavailable

22

PIN, LOCK (6MM)

94251-06000

$1.49

23

PIN, LOCK (8MM)

94251-08000

$1.49

24

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

24

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

25

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

25

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
