- VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753
ALTERNATOR

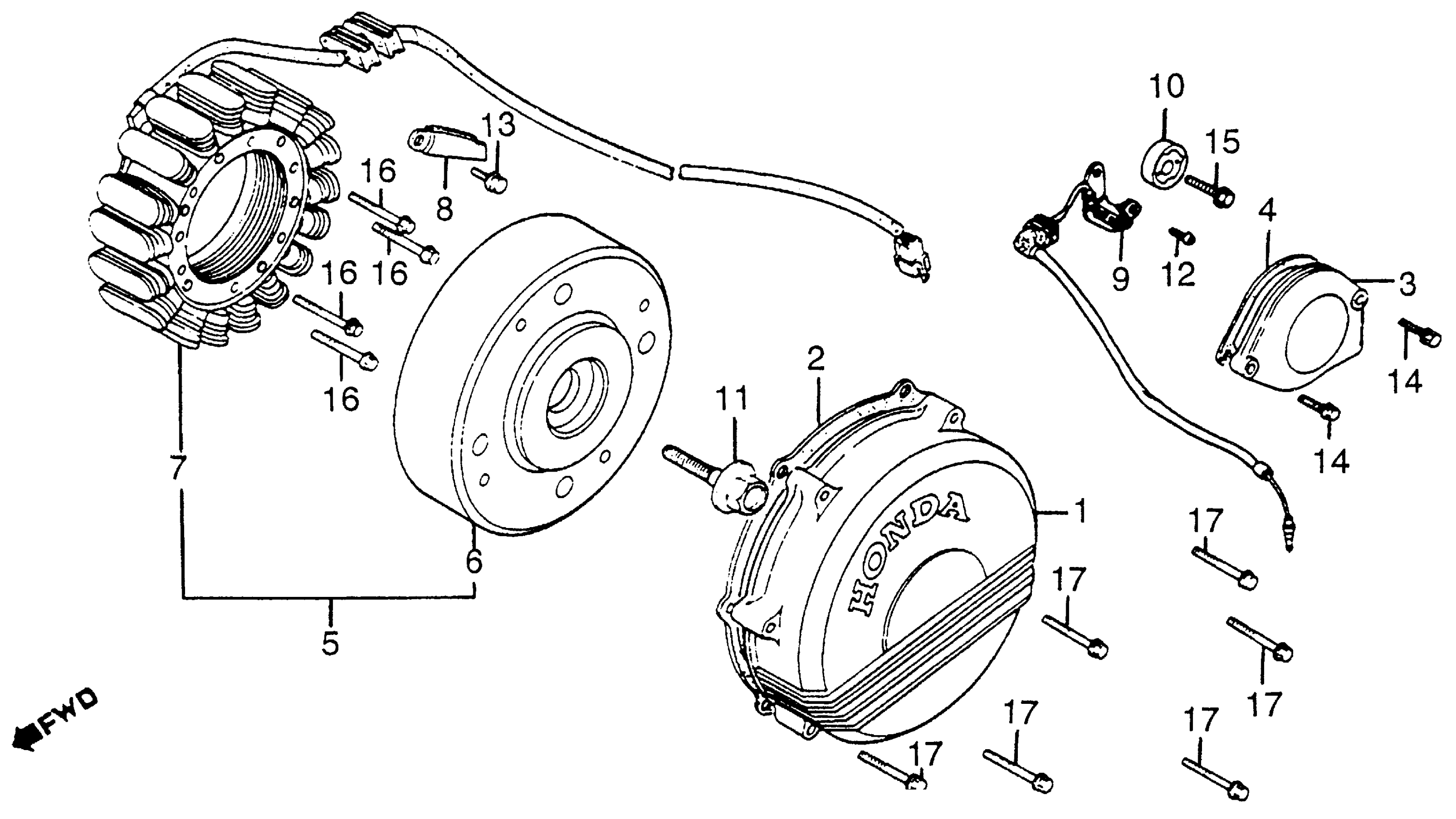

Honda VF1000FA (84) 1000 INTERCEPTOR, JPN, VIN# JH2SC150-EM000017 TO JH2SC150-EM003753 ALTERNATOR Diagram
#
Description
Price
1
COVER, ALTERNATOR (NOT AVAILABLE)
11631-MB6-000
Unavailable
2
GASKET, ALTERNATOR COVER This part replaces 11636-MB0-000.
11636-MB0-306
Unavailable
2
GASKET, ALTERNATOR COVER
11636-MB0-306
Unavailable
3
COVER, INDICATOR SWITCH (NOT AVAILABLE)
11641-MB2-000
Unavailable
4
GASKET, INDICATOR SWITCH COVER This part replaces 11642-MB0-000.
11642-MB0-306
Unavailable
5
ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-MB6-000.
31100-MB6-014
Unavailable
5
ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-MB6-004.
31100-MB6-014
Unavailable
5
ALTERNATOR ASSY.
31100-MB6-008
Unavailable
5
ALTERNATOR ASSY. (NOT AVAILABLE)
31100-MB6-014
Unavailable
6
ROTOR (MITSUBA) (NOT AVAILABLE) This part replaces 31110-MB6-000.
31110-MB6-004
Unavailable
6
ROTOR (MITSUBA) (NOT AVAILABLE)
31110-MB6-004
Unavailable
6
ROTOR (MITSUBA) (NOT AVAILABLE) This part replaces 31110-MB6-008.
31110-MB6-004
Unavailable
7
STATOR (DENSO) (NOT AVAILABLE) This part replaces 31120-MB6-000.
31120-MB6-014
Unavailable
7
STATOR (DENSO) (NOT AVAILABLE) This part replaces 31120-MB6-004.
31120-MB6-014
Unavailable
7
STATOR (DENSO) (NOT AVAILABLE) This part replaces 31120-MB6-008.
31120-MB6-014
Unavailable
7
STATOR (DENSO) (NOT AVAILABLE)
31120-MB6-014
Unavailable
8
CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)
31130-MB6-000
Unavailable
9
SWITCH ASSY., NEUTRAL (NOT AVAILABLE)
35610-MB2-003
Unavailable
10
ROTOR, NEUTRAL SWITCH | Use up to Engine SN 2010311 This part replaces 35753-MB2-000.
35753-MB2-010
Unavailable
10
ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)
35753-MB2-010
Unavailable
11
BOLT, FLANGE (12X40) This part replaces 90017-MB4-000.
90017-MB6-680
Unavailable
