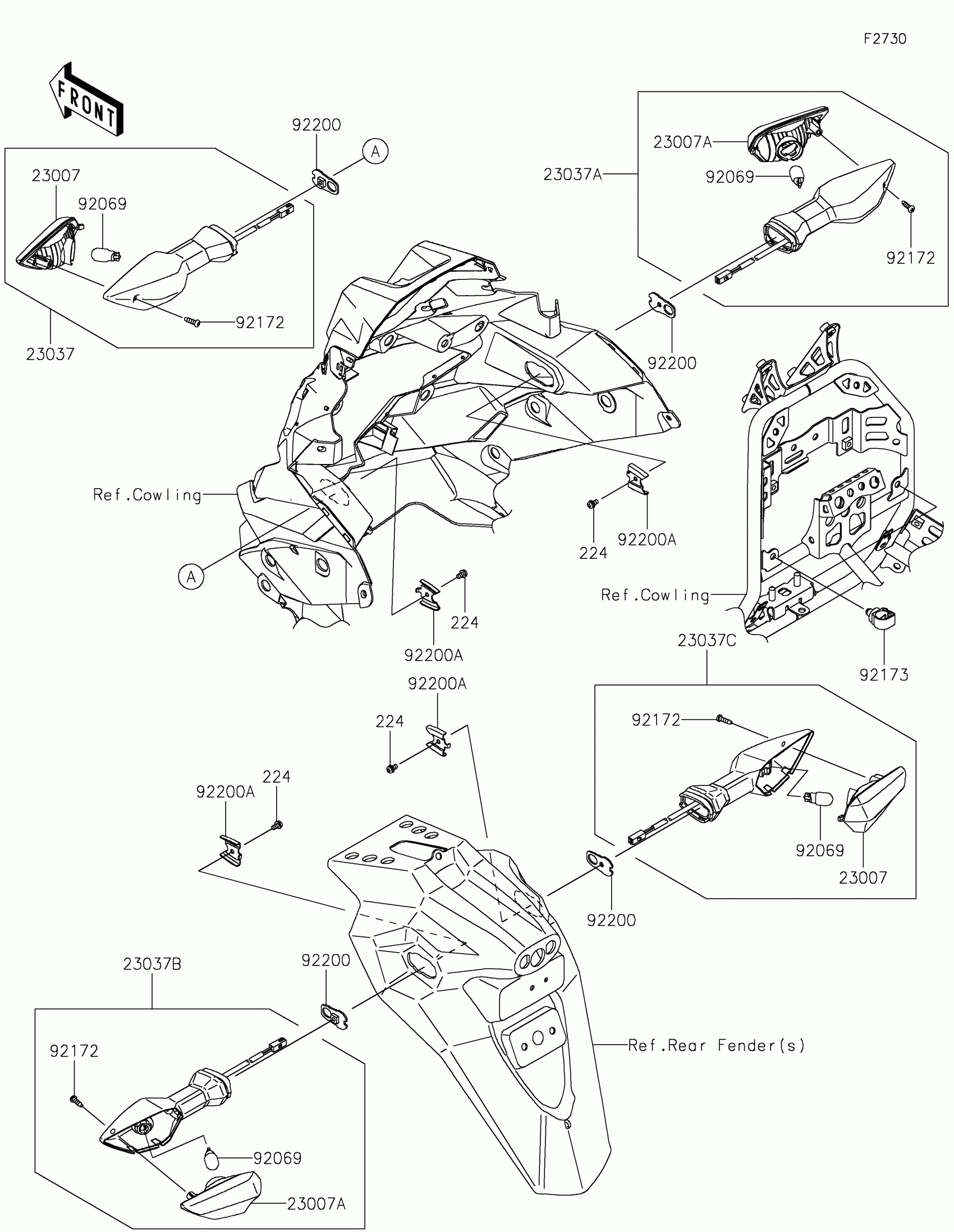

Kawasaki VERSYS®-X 300 Turn Signals Diagram

Description

Price

224

SCREW-PAN-WP-CROS,4X8

224AB0408

$3.67

23007

LENS-COMP

23007-0205

$25.57

23007A

LENS-COMP

23007-0206

$25.57

23037

LAMP-ASSY-SIGNAL,FR,LH

23037-0330

$59.44

23037A

LAMP-ASSY-SIGNAL,FR,RH

23037-0331

$59.44

23037B

LAMP-ASSY-SIGNAL,RR,LH

23037-0348

$59.44

23037C

LAMP-ASSY-SIGNAL,RR,RH

23037-0349

$59.44

92069

BULB,12V 10W

92069-0090

$5.75

92172

SCREW,4X14

92172-1117

$3.65

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92200

WASHER,NUT 4MM

92200-0854

$3.35

92200A

WASHER

92200-0855

$1.97
