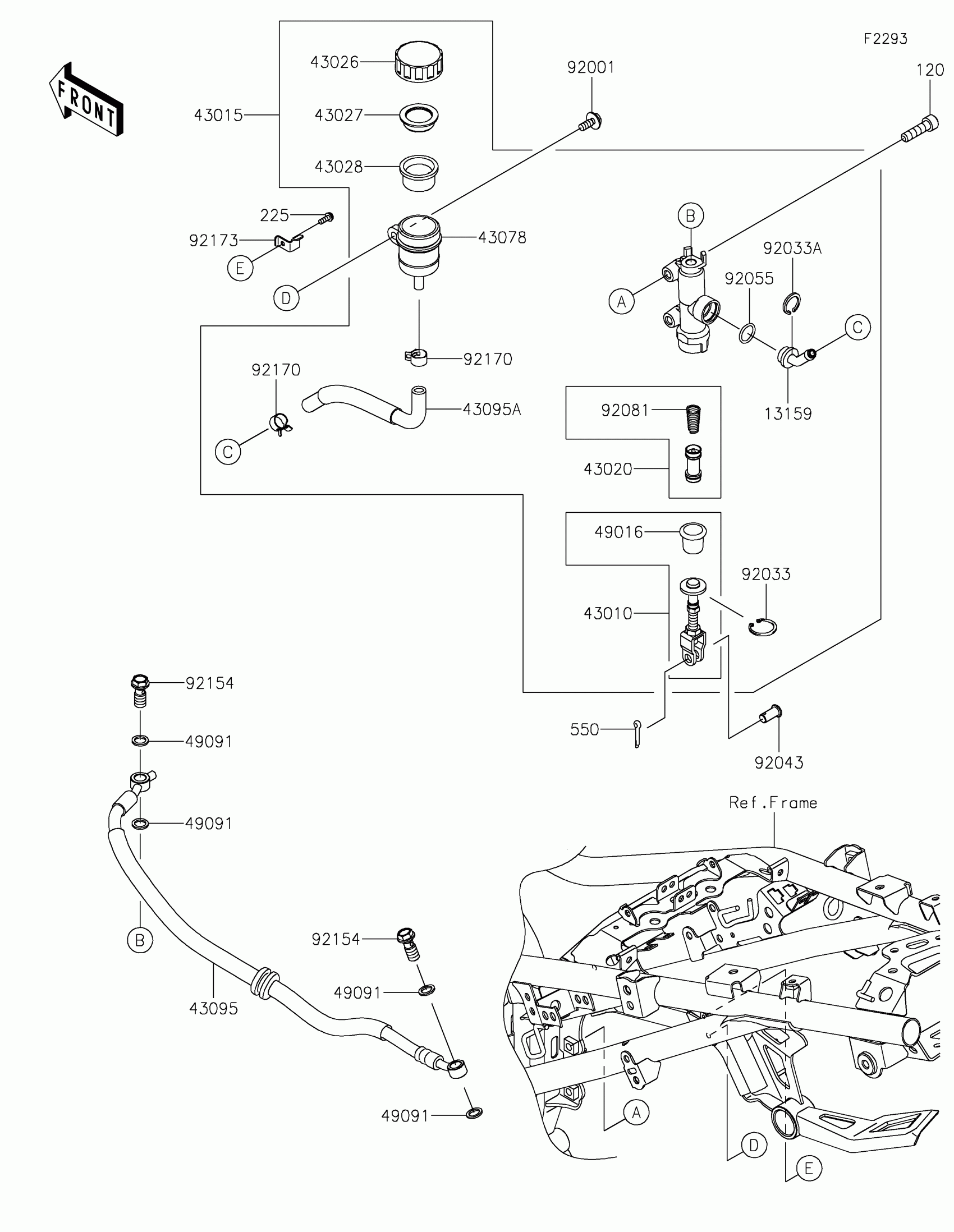

Kawasaki VERSYS®-X 300 Rear Master Cylinder Diagram

Description

Price

120

BOLT-SOCKET,8X30

120CA0830

$2.80

13159

CONNECTOR

13159-0008

$11.02

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

$2.94

43010

ROD-ASSY-BRAKE

43010-0021

$71.10

43015

CYLINDER-ASSY-MASTER,RR

43015-0656

$264.68

43020

PISTON-COMP-BRAKE

43020-0023

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43078

RESERVOIR

43078-0040

$28.98

43095

HOSE-BRAKE

43095-1446

$79.06

43095A

HOSE-BRAKE,RR

43095-1449

$15.70

49016

COVER-SEAL,BRAKE PISTON

49016-1103

$13.37

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

550

PIN-COTTER,2.0X15

550AA2015

$1.12

92001

BOLT,W/P,6X16

92001-1860

$4.31

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN,8X17

92043-0104

$3.90

92055

RING-O,14.8X2.4

92055-0741

$3.71

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92154

BOLT,BANJO,10X23

92154-2560

$3.94

92170

CLAMP,HOSE

92170-1091

$5.00

92173

CLAMP,RESERVOIR TANK CAP

92173-0028

$5.54
