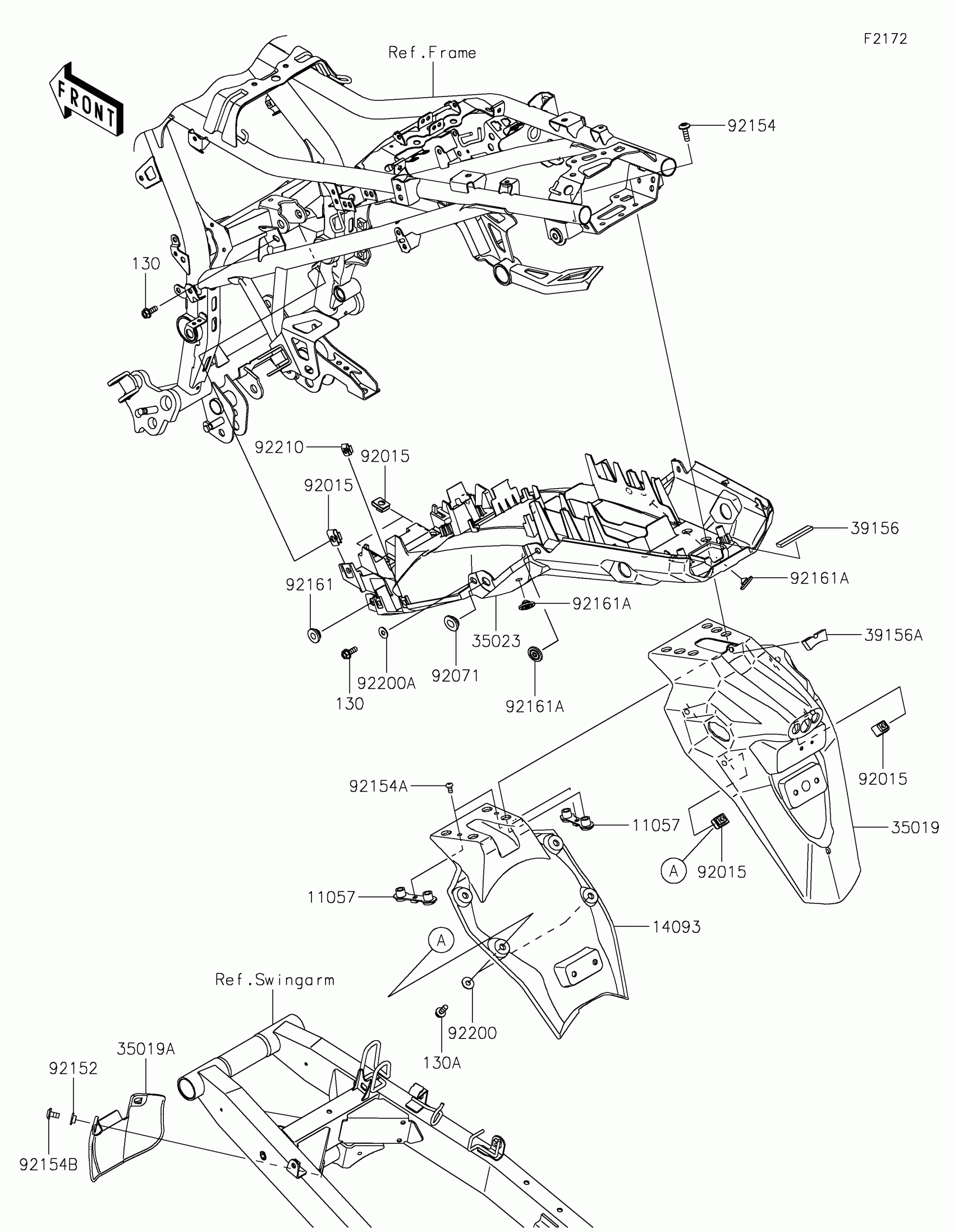

Kawasaki Versys-X 300 Rear Fender(s) Diagram

Description

Price

11057

BRACKET

11057-0556

$10.00

14093

COVER

14093-0552

$40.04

35019

FLAP,RR

35019-0632

$67.90

35019A

FLAP,SWA,LWR

35019-0634

$10.26

35023

FENDER-REAR

35023-0427

$83.71

39156

PAD,9X60X4

39156-0820

$1.18

39156A

PAD

39156-2211

$1.52

92015

NUT,6MM

92015-1602

$7.34

92071

GROMMET,20X24X7.5

92071-0766

$1.41

92152

COLLAR

92152-2296

$2.70

92154

BOLT,SOCKET,6X20

92154-0918

$6.26

92154A

BOLT,SOCKET,5X10

92154-1547

$1.48

92154B

BOLT,SOCKET,6X12

92154-2355

$1.94

92161

DAMPER

92161-1531

$3.02

92161A

DAMPER,8X22X10

92161-1685

$0.88

92200

WASHER,6.5X17X1

92200-0430

$1.34

92200A

WASHER,6.5X16X1.0

92200-0796

$0.85

92210

NUT,5MM

92210-0817

$1.97

130

BOLT-FLANGED,6X16

130BA0616

$1.20

130A

BOLT-FLANGED,6X16

130BB0616

$2.06
