Description

Price

11057

BRACKET,REFLECTOR

11057-0641

$18.83

13272

PLATE

13272-1330

$3.71

21007

ROTOR,LOCK,TANK CAP

21007-5082

$111.74

220

SCREW-PAN-CROS,6X25

220AA0625

$2.78

27005

SWITCH-ASSY-IGNITION

27005-5162

$174.70

27008

KEY-LOCK,BLANK

27008-0053

$21.22

27010

SWITCH,REAR BRAKE

27010-0726

$46.80

27010A

SWITCH,SIDE STAND

27010-0845

$117.80

27016

LOCK-ASSY,SEAT LEVER

27016-0089

$59.26

27016A

LOCK-ASSY,SEAT

27016-5398

$104.16

27048

SWITCH-ASSY

27048-5139

$336.77

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$24.14

28012A

REFLECTOR-REFLEX

28012-0002

$24.14

28012B

REFLECTOR-REFLEX

28012-1077

$23.25

311

NUT-HEX,5MM

311AB0500

$0.43

32074

BRACKET-LOCK

32074-0022

$4.85

461

WASHER-SPRING,6MM

461DA0600

$0.71

55020

GUARD

55020-1987

$6.57

92002

BOLT,6X12

92002-1132

$1.49

92009

SCREW,5X16,BLACK

92009-1654

$3.13

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92072

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92145

SPRING,REAR BRAKE SWITCH

92145-0144

$3.87

92153

BOLT,TORX,6X16

92153-0967

$2.61

92154

BOLT,SOCKET,5X12

92154-0933

$1.19

92154A

BOLT,FLANGED,6X35

92154-1009

$3.35

92161

DAMPER

92161-1531

$3.02

92171

CLAMP

92171-0939

$4.41

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92210

NUT,FLANGED,5MM

92210-0007

$2.70

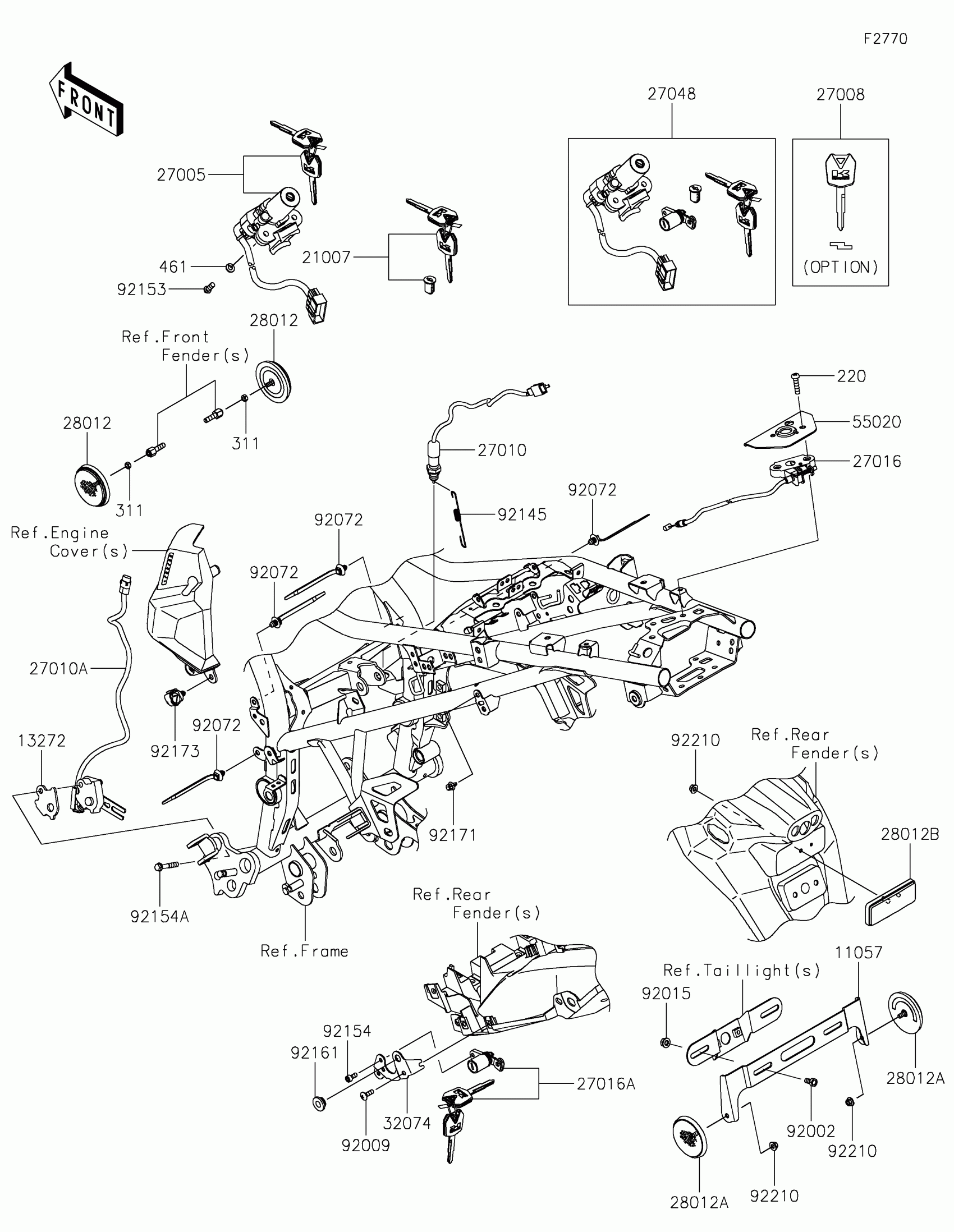

Kawasaki VERSYS®-X 300 Ignition Switch Diagram

BRACKET,REFLECTOR

PLATE

ROTOR,LOCK,TANK CAP

SCREW-PAN-CROS,6X25

SWITCH-ASSY-IGNITION

KEY-LOCK,BLANK

SWITCH,REAR BRAKE

SWITCH,SIDE STAND

LOCK-ASSY,SEAT LEVER

LOCK-ASSY,SEAT

SWITCH-ASSY

REFLECTOR-REFLEX,FR,SIDE

REFLECTOR-REFLEX

REFLECTOR-REFLEX

NUT-HEX,5MM

BRACKET-LOCK

WASHER-SPRING,6MM

GUARD

BOLT,6X12

SCREW,5X16,BLACK

NUT,FLANGED,6MM

BAND,OS170-FT7(BLACK)

SPRING,REAR BRAKE SWITCH

BOLT,TORX,6X16

BOLT,SOCKET,5X12

BOLT,FLANGED,6X35

DAMPER

CLAMP

CLAMP,12MM DIA.

NUT,FLANGED,5MM
