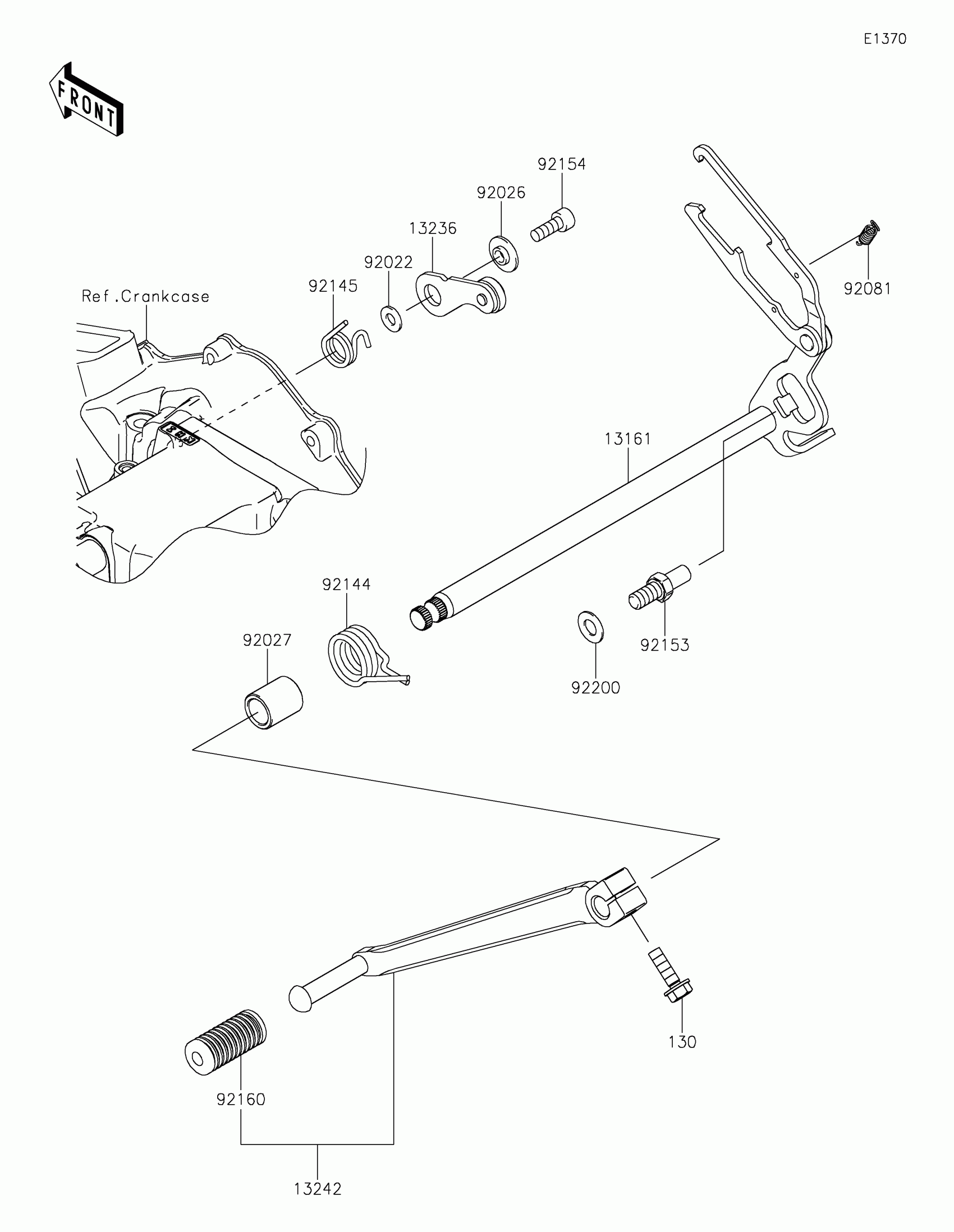

Kawasaki VERSYS®-X 300 Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130CC0620

$1.71

13161

LEVER-COMP-CHANGE SHAFT

13161-0560

$91.77

13236

LEVER-COMP

13236-0797

$9.07

13242

LEVER-ASSY-CHANGE,PEDAL

13242-0151

$53.04

92022

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-1217

$5.52

92027

COLLAR,13X18.3X21.5

92027-1440

$5.52

92081

SPRING,CHANGE LEVER

92081-076

$5.46

92144

SPRING,CHANGE PEDAL RETURN

92144-1074

$9.43

92145

SPRING

92145-1747

$1.68

92153

BOLT,8X15.5

92153-1986

$6.07

92154

BOLT,SOCKET,6X16

92154-0235

$2.95

92160

DAMPER,CHANGE PEDAL

92160-1036

$5.05

92200

WASHER,8.2X16X1

92200-0434

$1.34
