2020 Kawasaki Versys®-X 300 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2020 Kawasaki Versys®-X 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

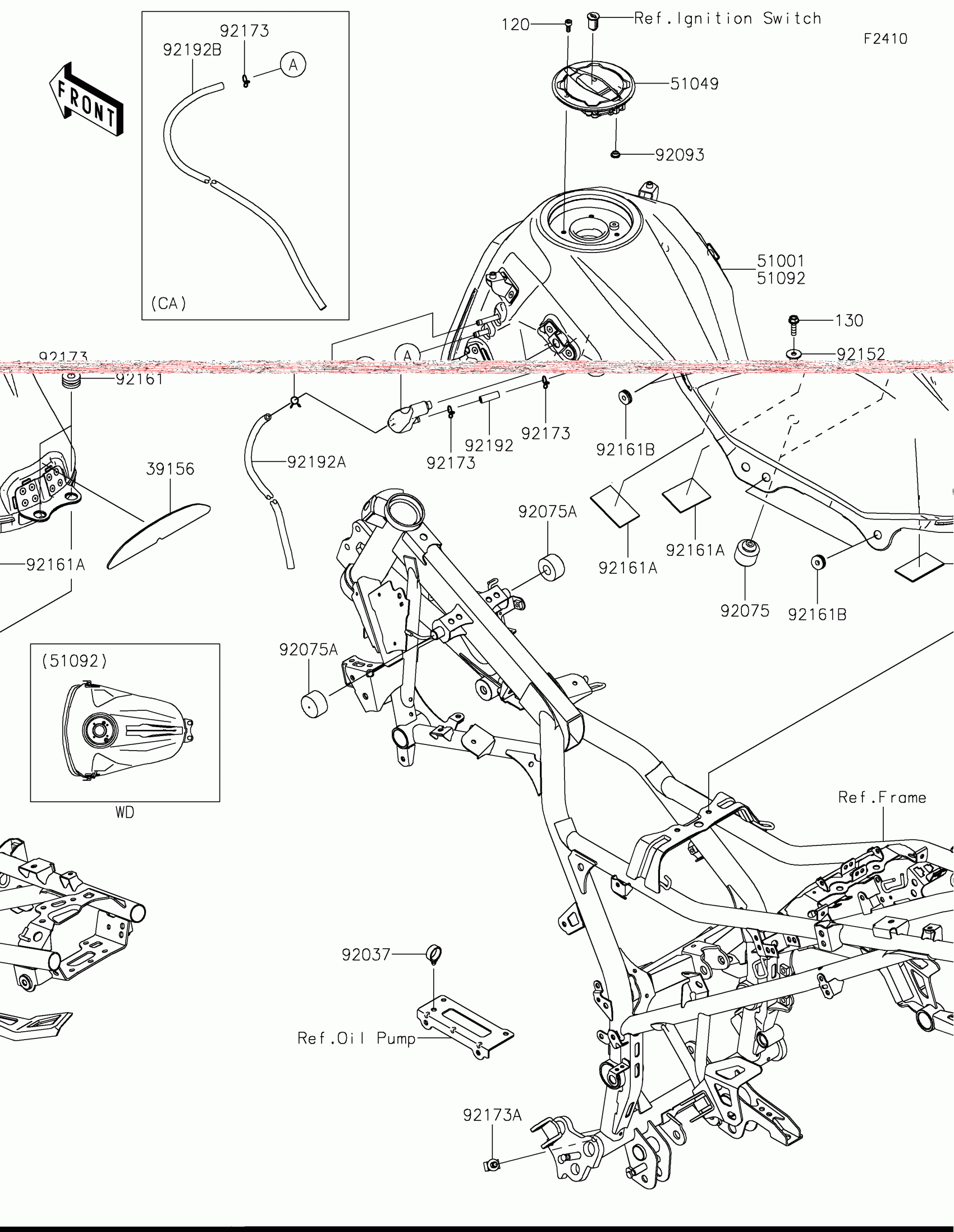

2020 Kawasaki Versys®-X 300 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120CA0512

1
Out of stock

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

14069

BREATHER

14069-0011

1

$11.37

In stock

39156

PAD,34X210X2

39156-2210

1

$5.32

In stock

51001D

TANK-COMP-FUEL,P.B.WHITE

51001-0843-54X

1
Out of stock

51049

CAP-TANK

51049-0735

1
Out of stock

92037

CLAMP,HOSE

92037-1827

1
Out of stock

92075

DAMPER

92075-1002

1
Out of stock

92075A

DAMPER,FUEL TANK,FR

92075-1115

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92152

COLLAR,6.5X10X13.1

92152-0332

1
Out of stock

92161

DAMPER,10X24X12

92161-0927

1
Out of stock

92161A

DAMPER

92161-1883

1

$1.27

In stock

92161B

DAMPER,6X19X5.6

92161-1911

1

$0.88

In stock

92173

CLAMP

92173-0049

1
Out of stock

92173A

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92192

TUBE,5X9X26

92192-0910

1
Out of stock

92192A

TUBE,5X9X1040

92192-1732

1
Out of stock

92192B

TUBE,5X9X1060

92192-1733

1
Out of stock

92173

CLAMP

92173-0049

1
Out of stock
