2020 Kawasaki Versys®-X 300 Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2020 Kawasaki Versys®-X 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

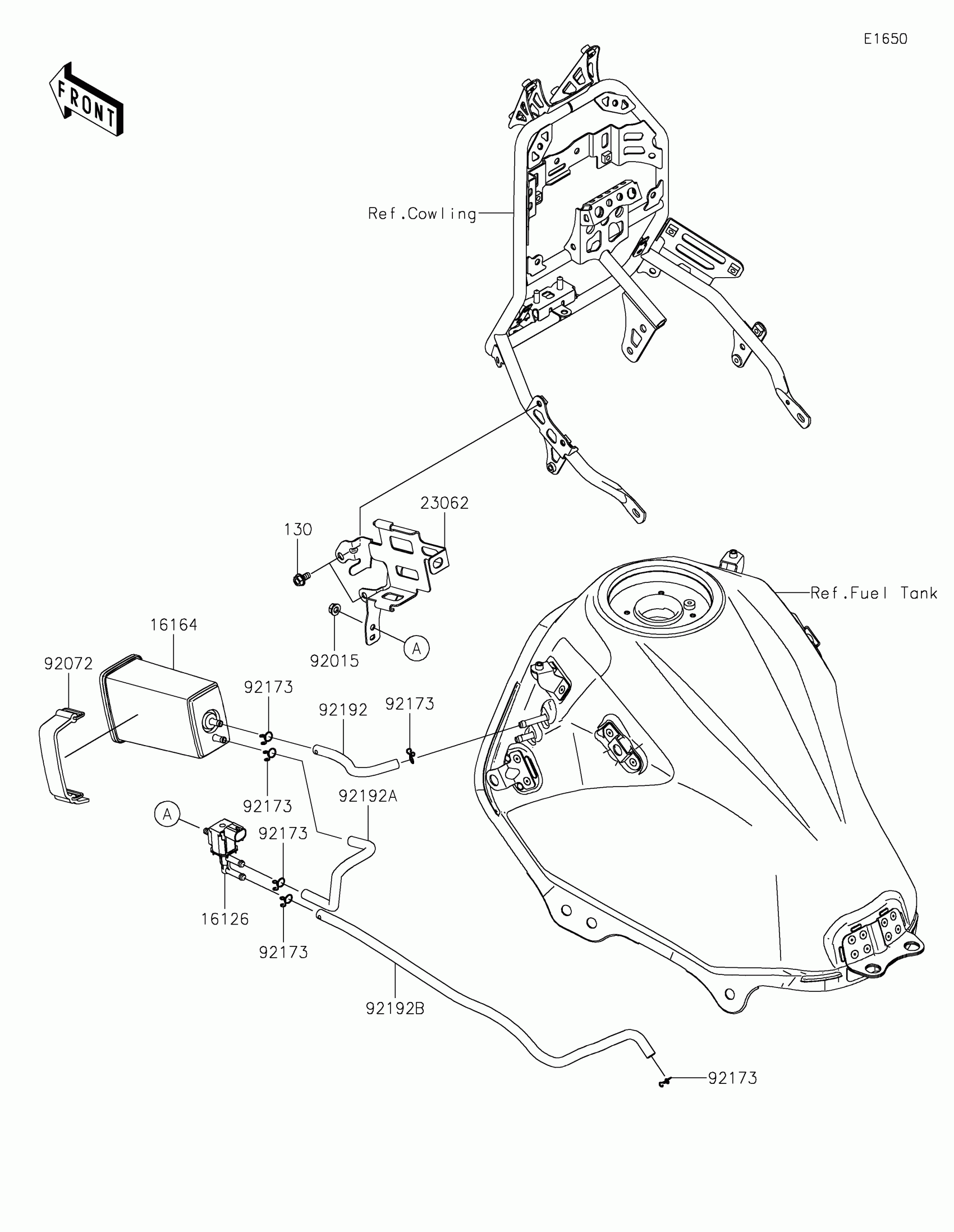

2020 Kawasaki Versys®-X 300 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

16126

VALVE,SOLENOID

16126-0705

1
Out of stock

16164

CANISTER

16164-0012

1
Out of stock

23062

BRACKET-COMP,CANISTER

23062-0910

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92072

BAND,L=90

92072-0135

1
Out of stock

92173

CLAMP

92173-0050

1
Out of stock

92192

TUBE,TANK-CANISTER

92192-1729

1
Out of stock

92192A

TUBE,CANISTER-VALVE

92192-1730

1
Out of stock

92192B

TUBE,VALVE-THROTTLE BODY

92192-1731

1
Out of stock
