2020 Kawasaki Versys®-X 300 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2020 Kawasaki Versys®-X 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

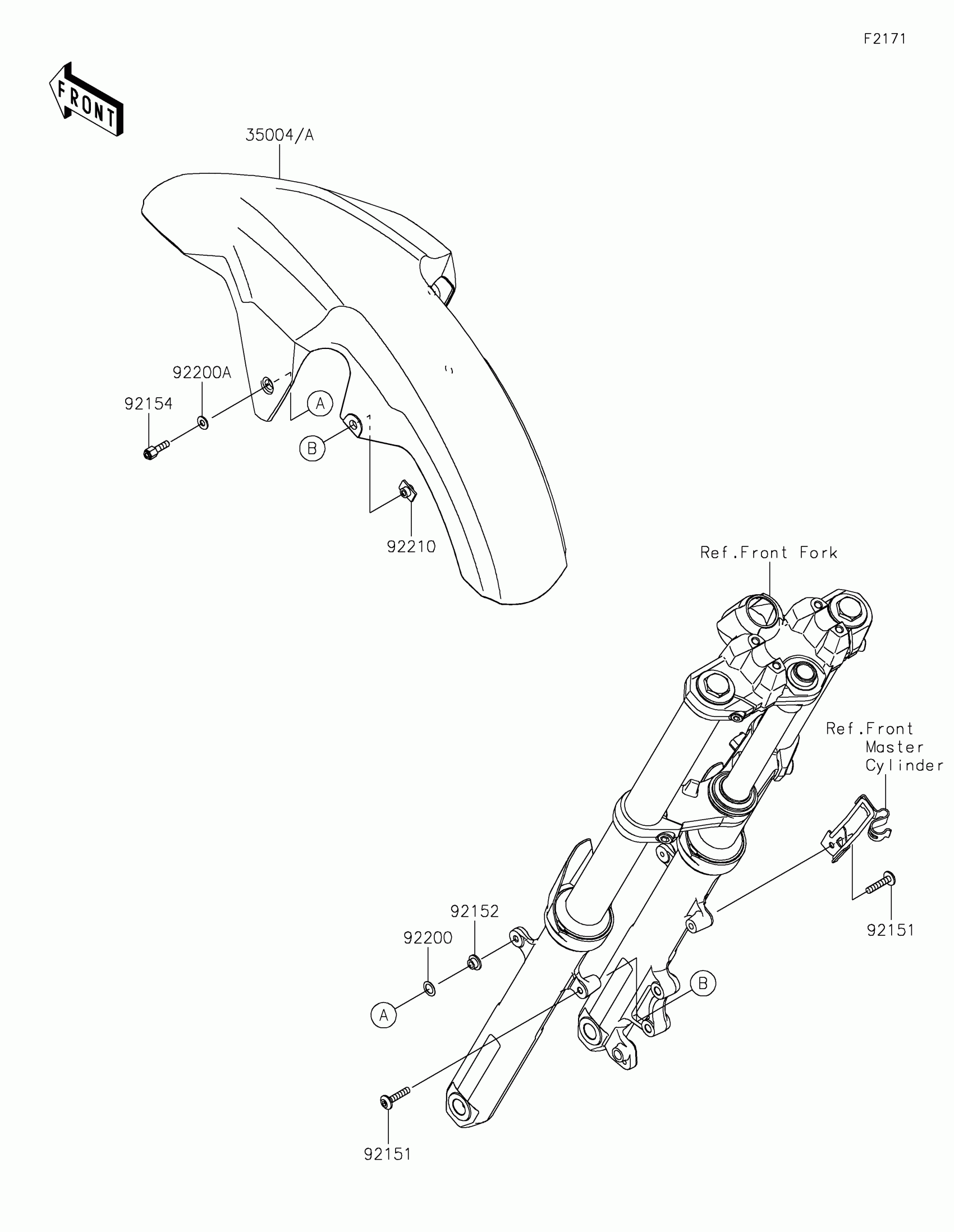

2020 Kawasaki Versys®-X 300 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004A

FENDER-FRONT,M.M.C.GRAY

35004-0363-51B

1
Out of stock

92151

BOLT,SOCKET,6X30

92151-1605

1
Out of stock

92152

COLLAR,6.2X16X6.6

92152-2348

1
Out of stock

92154

BOLT,6X20

92154-2739

1
Out of stock

92200

WASHER,10.4X15.9X0.5

92200-0157

1
Out of stock

92200A

WASHER,6.5X14X1.2

92200-0964

1
Out of stock

92210

NUT,6MM

92210-1564

1
Out of stock
