2020 Kawasaki Versys®-X 300 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2020 Kawasaki Versys®-X 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

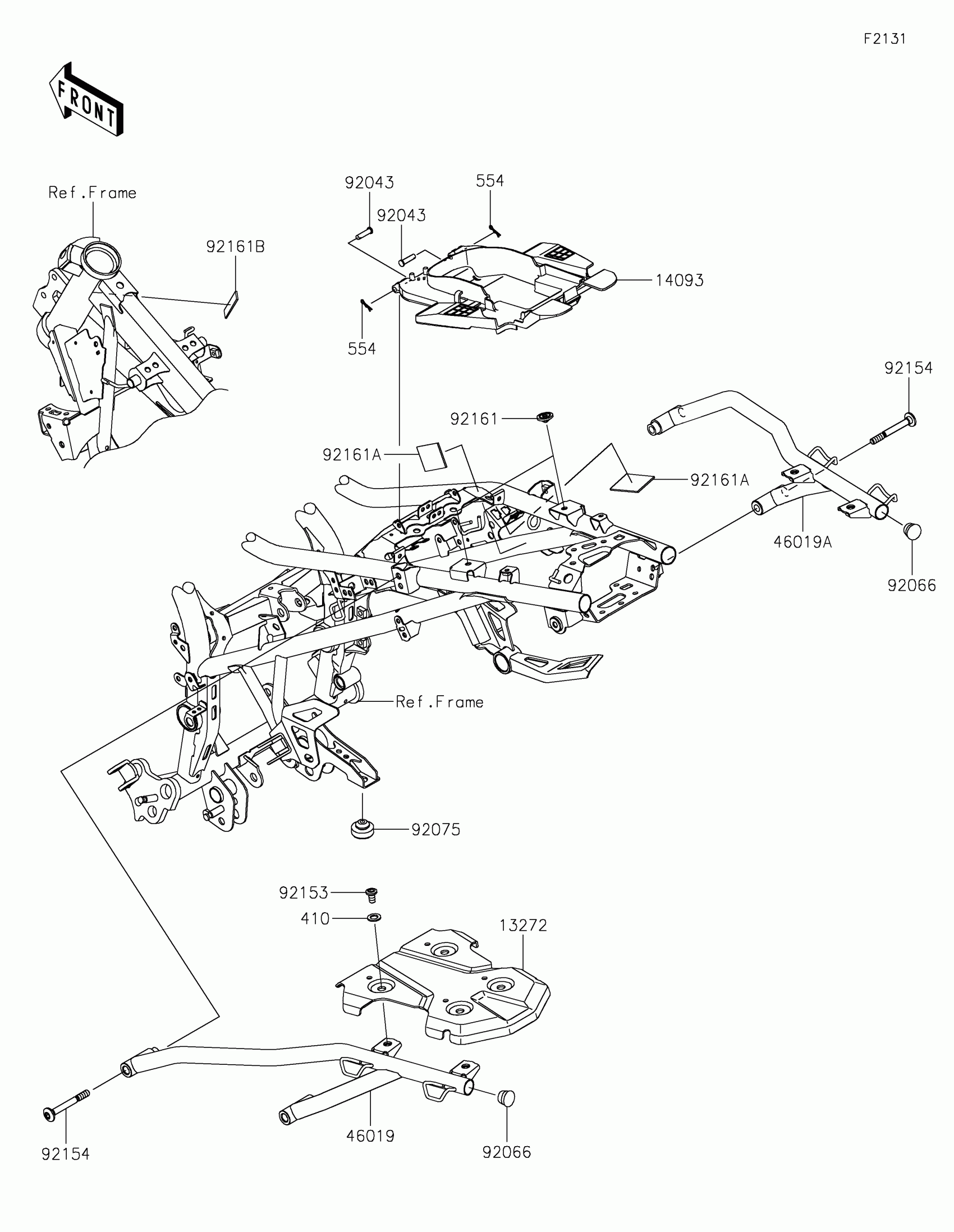

2020 Kawasaki Versys®-X 300 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-2247

1
Out of stock

14093

COVER,TOOL

14093-0694

1
Out of stock

410

WASHER-PLAIN-SMALL,10MM

410AA1000

1
Out of stock

46019

GRIP-ASSY,LH,F.S.BLACK

46019-0070-18R

1
Out of stock

46019A

GRIP-ASSY,RH,F.S.BLACK

46019-0071-18R

1
Out of stock

554

PIN-SNAP,1.2X21.2

554DA0600

1
Out of stock

92043

PIN,6X23

92043-0746

1
Out of stock

92066

PLUG

92066-1220

1
Out of stock

92075

DAMPER

92075-1045

1
Out of stock

92153

BOLT,SOCKET,8X15

92153-1810

1
Out of stock

92154

BOLT,SOCKET,8X73

92154-2339

1
Out of stock

92161

DAMPER,8X22X10

92161-1685

1
Out of stock

92161A

DAMPER

92161-1883

1
Out of stock

92161B

DAMPER,13X48X2

92161-1972

1
Out of stock
