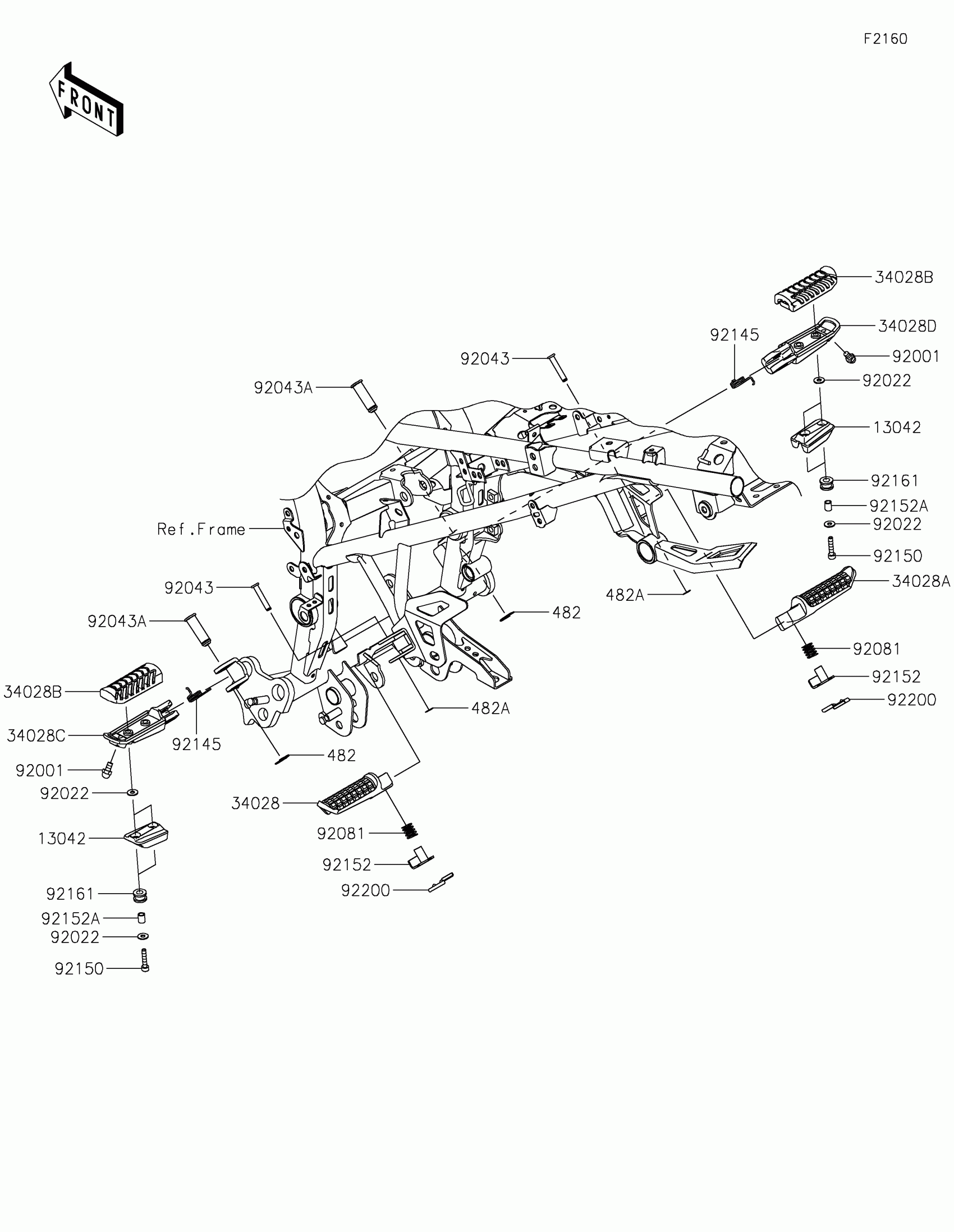

Kawasaki Versys-X 300 Footrests Diagram

Description

Price

13042

WEIGHT,STEP

13042-0759

$40.04

34028

STEP,RR,LH

34028-0334

$34.36

34028A

STEP,RR,RH

34028-0335

$34.36

34028B

STEP,RUBBER

34028-0349

$22.74

34028C

STEP,FR,LH

34028-0350

$36.60

34028D

STEP,FR,RH

34028-0351

$36.60

92001

BOLT,BANK SENSOR

92001-1905

$7.31

92022

WASHER,5.2X13X1

92022-1380

$4.31

92043

PIN,5X31.8

92043-0907

$1.94

92043A

PIN,12X39

92043-0924

$5.57

92081

SPRING,STEP,RR

92081-1612

$4.26

92145

SPRING,STEP RETURN

92145-0723

$3.67

92150

BOLT,SOCKET,5X25

92150-1684

$3.98

92152

COLLAR,STEP

92152-0658

$10.30

92152A

COLLAR,5.6X8X10.5

92152-1545

$2.67

92161

DAMPER,8X16X10

92161-1935

$0.90

92200

WASHER

92200-1892

$1.69

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

482A

CIRCLIP-TYPE-E

482EA5000

$1.34
