Engine Cover(s)

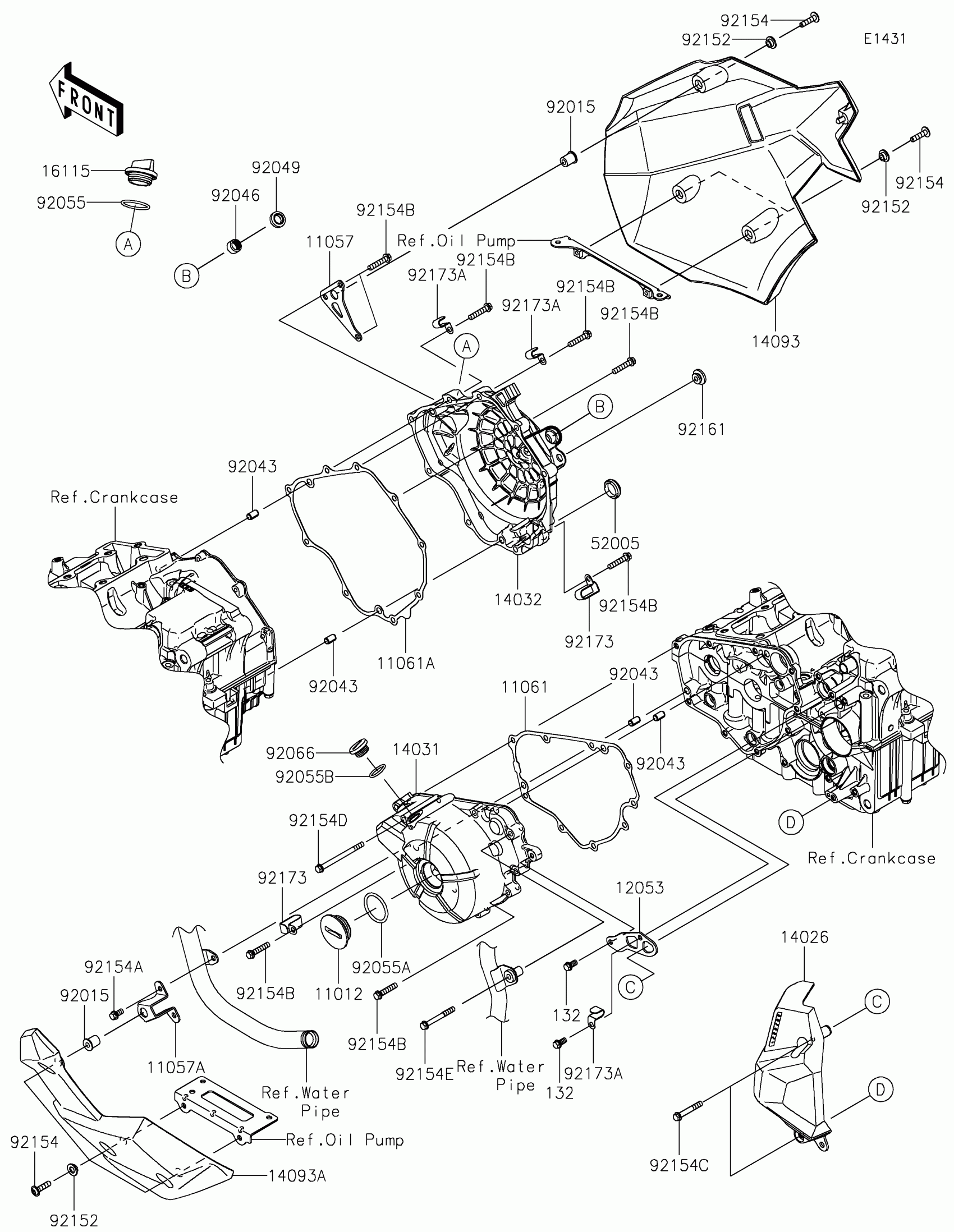

Kawasaki Versys-X 300 Engine Cover(s) Diagram
#
Description
Price
11012
CAP
11012-1362
$8.79
11057
BRACKET,RIGHT LOWER COVER
11057-0623
$3.57
11057A
BRACKET,LEFT LOWER COVER
11057-0674
$5.61
11061
GASKET,GENERATOR COVER
11061-0793
$17.14
11061A
GASKET,CLUTCH COVER
11061-0854
$30.14
12053
GUIDE-CHAIN
12053-0237
$3.41
14026
COVER-CHAIN
14026-0133
$116.36
14031
COVER-GENERATOR
14031-0562
$186.30
14032
COVER-CLUTCH
14032-0633
$191.73
14093
COVER,LWR,RH
14093-0548
$183.02
14093A
COVER,LWR,LH
14093-0549
$183.02
16115
CAP-OIL FILLER
16115-1068
$5.74
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
92015
NUT
92015-1700
$8.58
92043
PIN,6.2X8X14
92043-1263
$0.43
92046
BEARING-NEEDLE,HK1210FM
92046-0034
$15.63
92049
SEAL-OIL
92049-1560
$9.28
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,39.4X3.1
92055-0734
$1.97
92055B
RING-O,20X2
92055-1146
$8.58
92066
PLUG
92066-0748
$15.64
92152
COLLAR
92152-2296
$2.70
92154
BOLT,SOCKET,6X25
92154-0071
$2.12
92154A
BOLT,FLANGED,6X12
92154-1140
$2.32
92154B
BOLT,FLANGED,6X30
92154-1773
$1.19
92154C
BOLT,FLANGED,6X40
92154-1774
$1.48
92154D
BOLT,FLANGED,6X75
92154-2346
$2.70
92154E
BOLT,FLANGED,6X50
92154-2347
$3.29
92161
DAMPER
92161-1810
$1.19
92173
CLAMP
92173-0833
$3.74
92173A
CLAMP
92173-1811
$5.69
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
