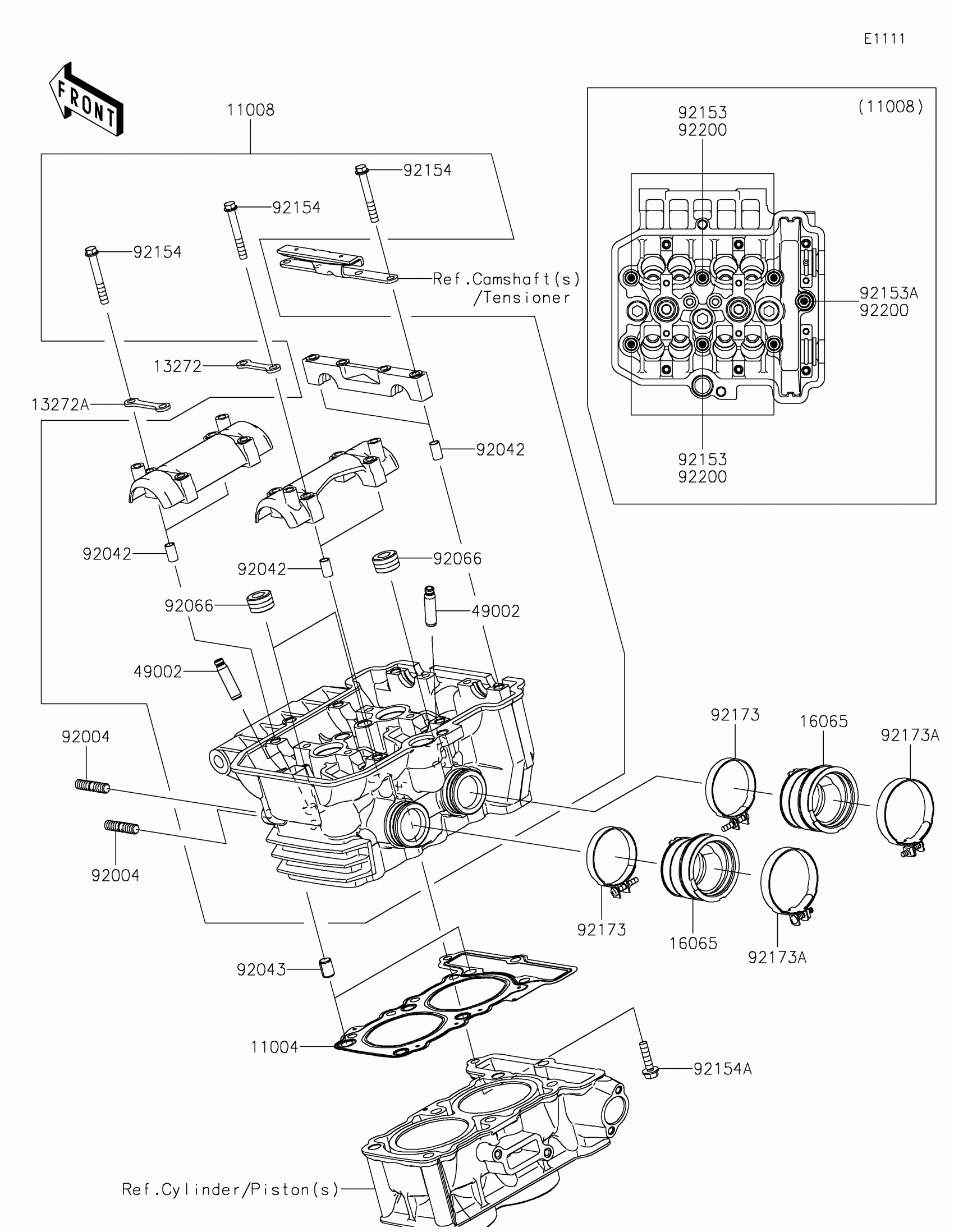

Kawasaki VERSYS®-X 300 Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0734

$47.30

11008

HEAD-COMP-CYLINDER

11008-0747

$1,314.82

13272

PLATE,IN

13272-0260

$8.46

13272A

PLATE,EX

13272-0261

$8.46

16065

HOLDER-CARBURETOR

16065-0119

$30.39

49002

GUIDE-VALVE

49002-0009

$30.60

92004

STUD,8X22

92004-0040

$3.17

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,8.2X10X14

92043-1264

$0.51

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92153

BOLT,6X45

92153-0339

$2.30

92153A

BOLT,SOCKET,8X146

92153-1774

$6.62

92153B

BOLT,SOCKET,8X115

92153-1775

$7.90

92154

BOLT,FLANGED,6X25

92154-2556

$1.47

92173

CLAMP,47MM

92173-0919

$5.76

92173A

CLAMP,53MM

92173-0956

$7.71

92200

WASHER,8.5X18X1.6

92200-0860

$4.27
