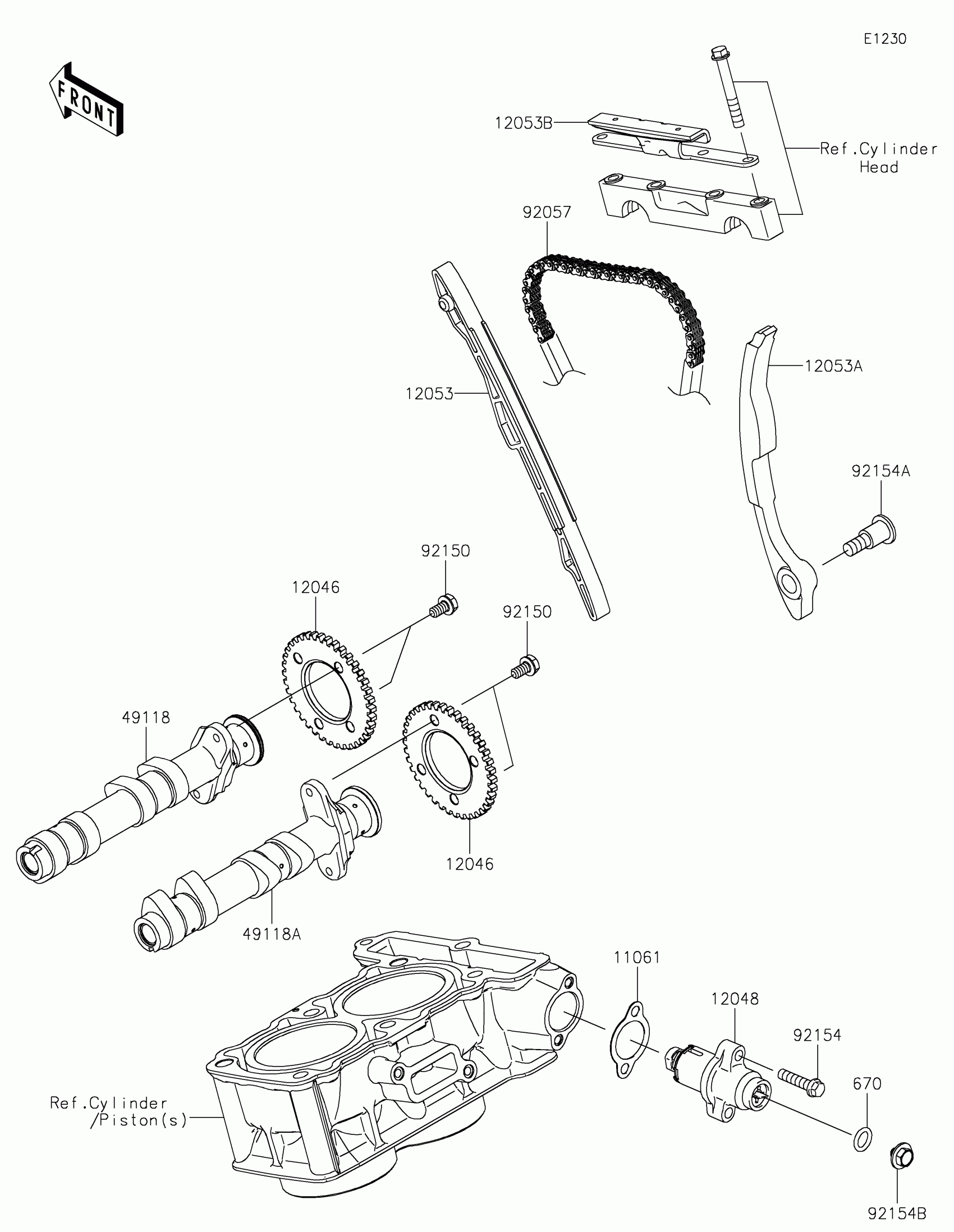

Kawasaki VERSYS®-X 300 Camshaft(s)/Tensioner Diagram

Description

Price

11061

GASKET

11061-0792

$3.24

12046

SPROCKET,38T

12046-0072

Unavailable

12048

TENSIONER-ASSY

12048-0084

$86.02

12053

GUIDE-CHAIN,FR

12053-0102

$31.36

12053A

GUIDE-CHAIN,RR

12053-0191

$62.56

12053B

GUIDE-CHAIN,UPP

12053-0235

$38.22

49118

CAMSHAFT-COMP,EXHAUST

49118-0743

$378.93

49118A

CAMSHAFT-COMP,INTAKE

49118-0921

$389.82

670

O RING,10MM

670D2010

$1.41

92057

CHAIN,CAM,92RH2010-124M

92057-0595

$77.09

92150

BOLT,FLANGED,6X11

92150-1725

$4.42

92154

BOLT,FLANGED,6X25

92154-0819

$1.66

92154A

BOLT,SOCKET,8X29.2

92154-0953

$4.46

92154B

BOLT,FLANGED,6X6

92154-2352

$1.85
