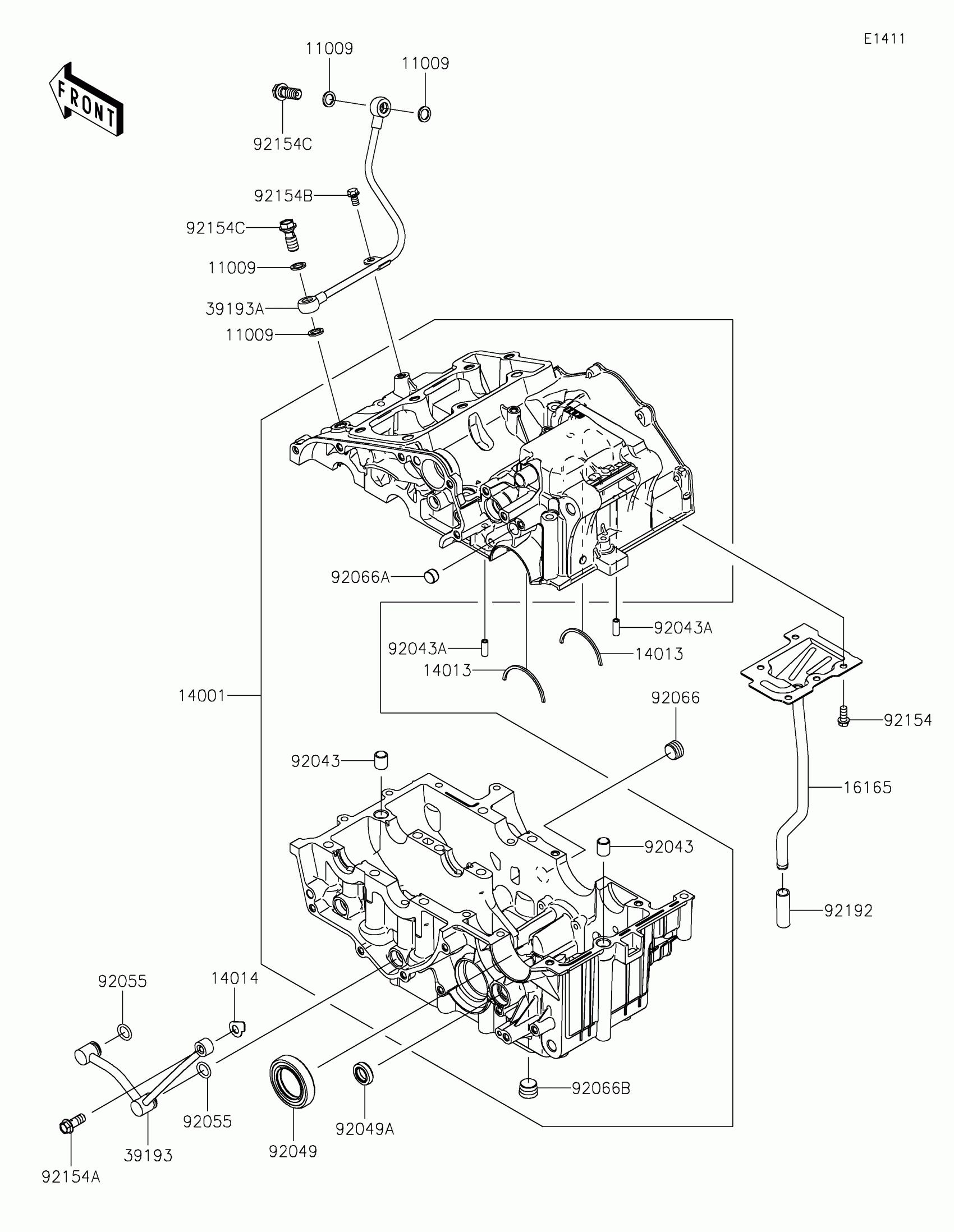

Kawasaki Versys-X 300 Crankcase Diagram

Description

Price

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

14001

SET-CRANKCASE

14001-0688

$1,264.28

14013

RING-POSITION

14013-004

$10.19

14014

PLATE-POSITION

14014-0565

$2.67

16165

SEPARATOR

16165-0013

$92.22

39193

PIPE-OIL

39193-0571

$48.88

39193A

PIPE-OIL,CASE-HEAD

39193-0583

$67.61

92043

PIN,12X14

92043-0963

$6.57

92043A

PIN,3.5X6X16

92043-1309

$5.52

92049

SEAL-OIL,32X52X10

92049-0731

$13.49

92049A

SEAL-OIL

92049-1559

$3.54

92055

RING-O,11.8X2.4

92055-0733

$2.32

92066

PLUG,PT3/8X10

92066-0003

$3.31

92066A

PLUG

92066-1110

$6.51

92066B

PLUG,PT3/8X12

92066-1252

$6.51

92154

BOLT,FLANGED,6X14

92154-0777

$2.67

92154A

BOLT,FLANGED,8X20

92154-0957

$5.65

92154B

BOLT,FLANGED,6X10

92154-2343

$1.69

92154C

BOLT,BANJO,10X23

92154-2560

$3.94

92192

TUBE,9X12X38

92192-0225

$3.87
