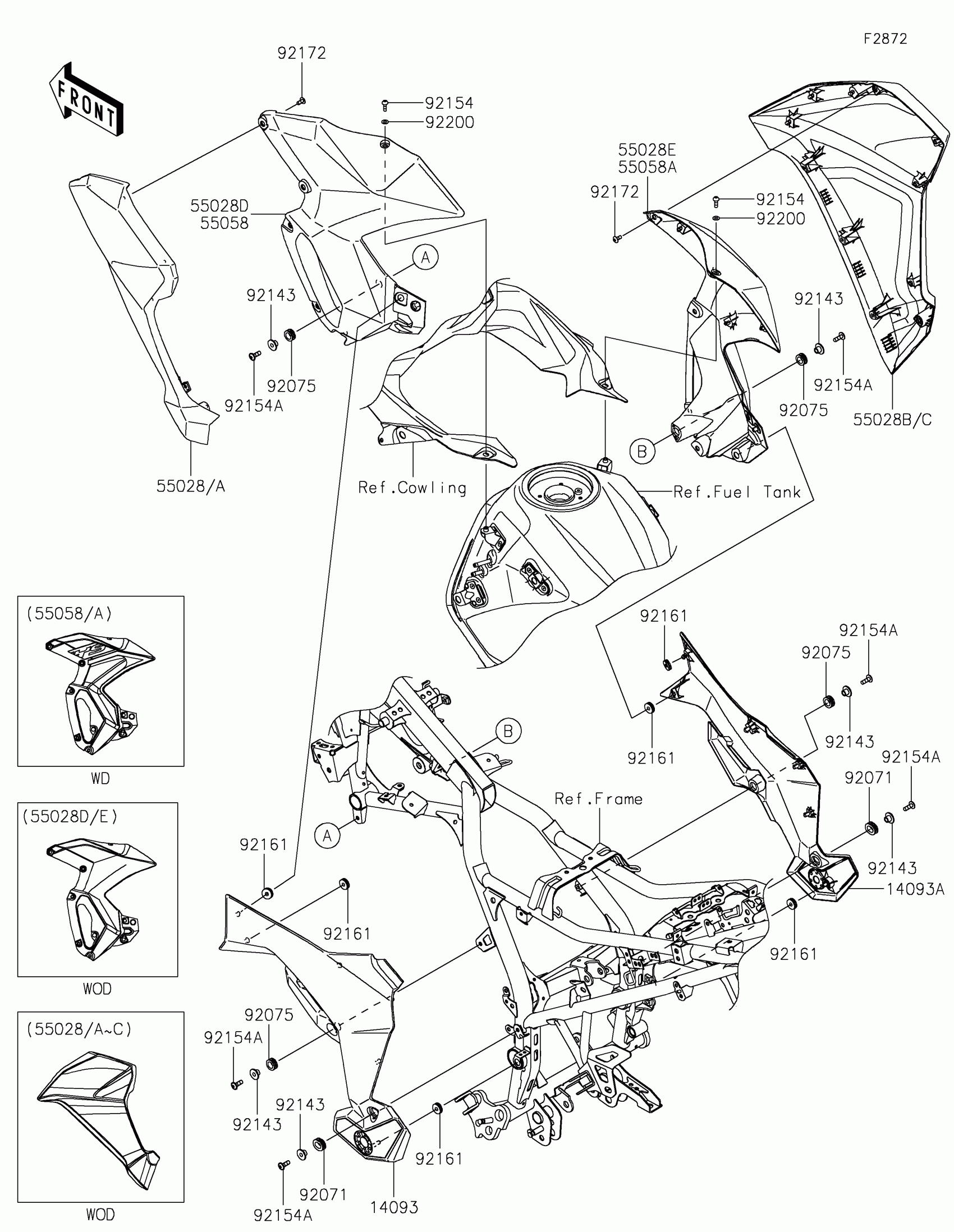

Kawasaki Versys-X 300 Cowling Lowers Diagram

Description

Price

14093

COVER,PIVOT,LH

14093-0558

$141.77

14093A

COVER,PIVOT,RH

14093-0559

$141.77

55028

COWLING,SIDE,LH,P.M.S.GREEN

55028-0626-69D

$226.38

55028A

COWLING,SIDE,LH,M.F.S.BLACK

55028-0626-739

$226.39

55028B

COWLING,SIDE,RH,P.M.S.GREEN

55028-0627-69D

$226.38

55028C

COWLING,SIDE,RH,M.F.S.BLACK

55028-0627-739

$226.39

55028D

COWLING,TANK SIDE,LH,GRAY

55028-0628-51B

$227.74

55028E

COWLING,TANK SIDE,RH,GRAY

55028-0629-51B

$227.74

55058

COWLING,TANK SIDE,LH,M.F.S.BLK

55058-5385-739

$440.80

55058A

COWLING,TANK SIDE,RH,M.F.S.BLK

55058-5387-739

$398.34

92071

GROMMET,20X24X8

92071-0768

$1.68

92075

DAMPER

92075-1634

$4.69

92143

COLLAR,L=9.6

92143-1016

$6.22

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,6X18

92154-2340

$2.17

92161

DAMPER,6X19X5.6

92161-1911

$0.90

92172

SCREW,5X12

92172-0821

$0.85

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86
