Description

Price

13087

HUB-CLUTCH

13087-0558

$121.95

13088

PLATE-FRICTION

13088-0590

$17.50

13088A

PLATE-FRICTION

13088-0591

$17.50

13089

PLATE-CLUTCH,T=2.0

13089-0021

$11.80

13089A

PLATE-CLUTCH

13089-0558

$11.86

13095

HOUSING-COMP-CLUTCH

13095-0561

$475.88

13102

RELEASE-COMP-CLUTCH

13102-0073

$60.60

13187

PLATE-CLUTCH OPERATING

13187-0553

$97.12

13272

PLATE

13272-1303

$19.32

16007

SEAT-SPRING

16007-0708

$3.68

16085

GEAR,OILPUMP DRIVE,38T

16085-0133

$120.39

46102

ROD

46102-0573

$33.27

92016

NUT,20MM

92016-028

$9.91

92022

WASHER,20.3X36X2.3

92022-1116

$8.58

92026

SPACER,25X52X5.5

92026-0115

$11.93

92026A

SPACER,25.5X44.5X2

92026-0734

$6.63

92045

BEARING-BALL

92045-0067

Unavailable

92139

BUSHING,25X32X29.1

92139-0916

$26.65

92145

SPRING

92145-1750

$9.34

92154

BOLT,UPSET,6X30

92154-0997

$3.35

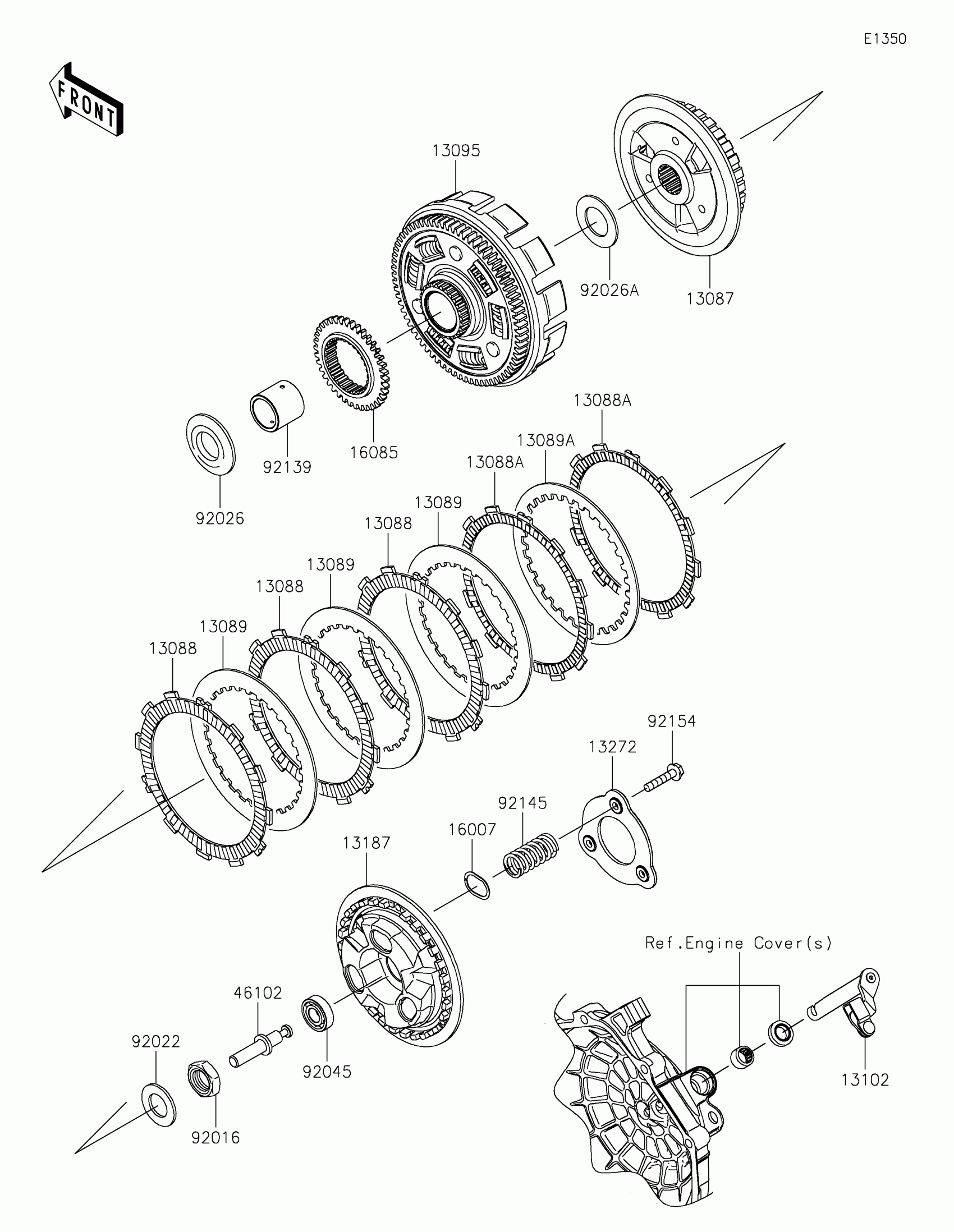

Kawasaki Versys-X 300 Clutch Diagram

HUB-CLUTCH

PLATE-FRICTION

PLATE-FRICTION

PLATE-CLUTCH,T=2.0

PLATE-CLUTCH

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

PLATE-CLUTCH OPERATING

PLATE

SEAT-SPRING

GEAR,OILPUMP DRIVE,38T

ROD

NUT,20MM

WASHER,20.3X36X2.3

SPACER,25X52X5.5

SPACER,25.5X44.5X2

BEARING-BALL

BUSHING,25X32X29.1

SPRING

BOLT,UPSET,6X30
