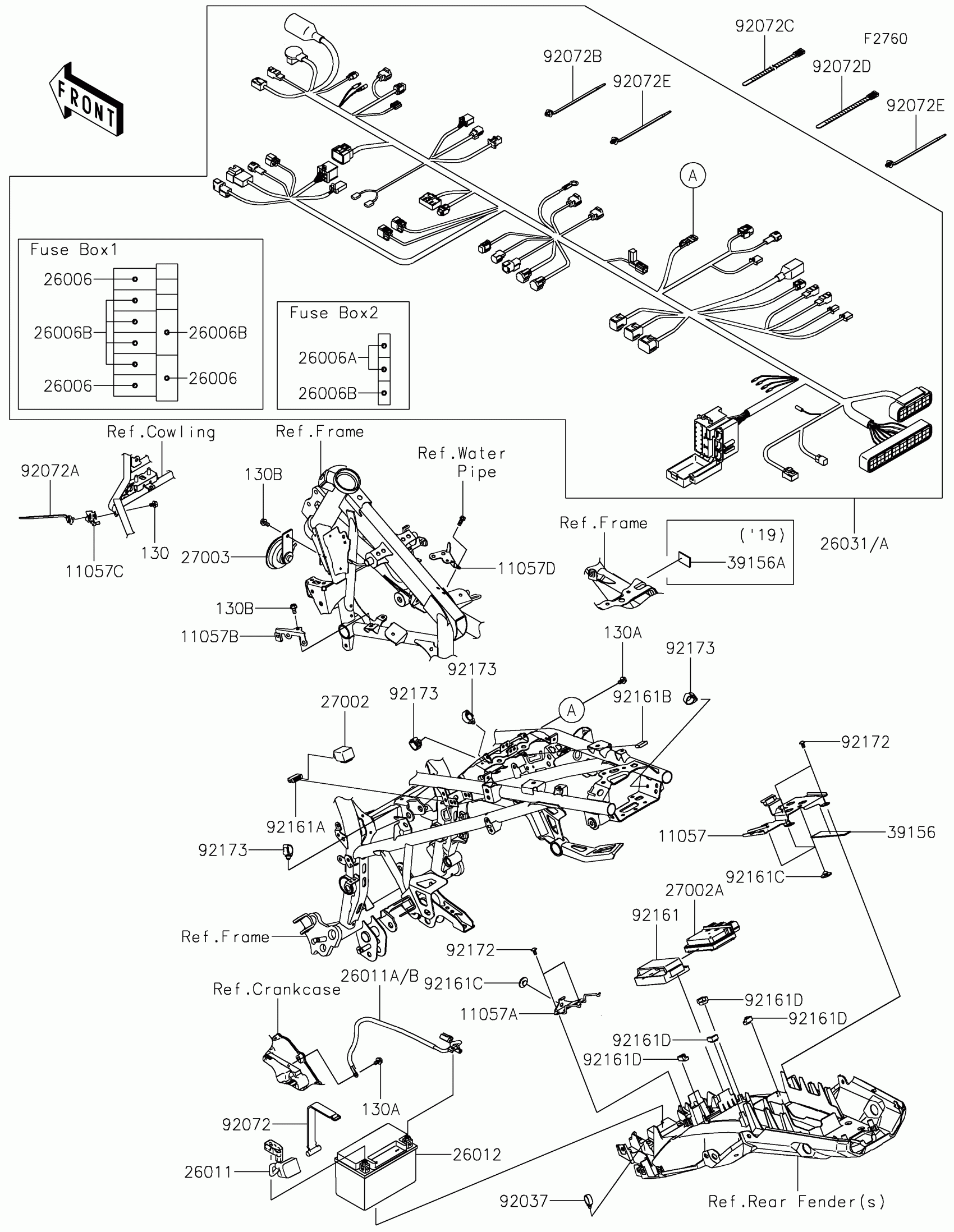

Kawasaki VERSYS®-X 300 Chassis Electrical Equipment Diagram

#

Description
Price

11057

BRACKET,ECU,UPP

11057-0558

$22.85

11057A

BRACKET,RR FENDER

11057-0559

$7.43

11057B

BRACKET,FRM PIPE,LH

11057-0566

$6.13

11057C

BRACKET,RELAY

11057-0703

$3.90

11057D

BRACKET,FRM PIPE,RH

11057-1220

$5.35

130

BOLT-FLANGED,6X8

130BA0608

$0.64

130A

BOLT-FLANGED,6X10

130BA0610

$1.20

130B

BOLT-FLANGED,6X12

130BA0612

$1.72

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,5A,TAN

26006-1077

$4.87

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26011

WIRE-LEAD,BATTERY(+)

26011-0960

$32.00

26011B

WIRE-LEAD,BATTERY(-)

26011-1886

$30.85

26012

BATTERY,FTX9-BS,12V 8AH

26012-0608

Unavailable

26031

HARNESS,MAIN

26031-2374

$1,239.37

26031A

HARNESS,MAIN

26031-2375

$1,239.37

27002

RELAY-ASSY,SIGNAL LAMP

27002-0006

$54.81

27002A

RELAY-ASSY

27002-0028

$143.14

27003

HORN

27003-0124

$81.16

39156

PAD,28X112X2

39156-2145

$1.81

39156A

PAD,31X23X2

39156-2462

$1.52

92037

CLAMP,HOSE

92037-1827

$7.45

92072

BAND

92072-0749

$18.95

92072A

BAND

92072-0807

$1.42

92072B

BAND,POP-2763

92072-0813

$0.95

92072C

BAND,L=250

92072-1237

$2.14

92072D

BAND,L=140

92072-1293

$7.11

92072E

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92161

DAMPER,RELAY BOX

92161-0203

$10.37

92161A

DAMPER,15X25X8.5

92161-1443

$1.94

92161B

DAMPER,15X21X5.5

92161-1472

$3.02

92161C

DAMPER,8X22X10

92161-1685

$0.88

92161D

DAMPER,ECU CORNER

92161-1909

$1.17

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92173

CLAMP,HOLDER CLIP

92173-0868

$3.02

92072E

BAND,OS170-FT7(BLACK)

92072-1414

$3.74
